7.2 Single output from three phase genset
Do apply single phase output from receptacle only!
1. The single receptacle output must be ≤20% of genset rated power.
2. In case single phase and three phase output simultaneously: total current output both of
single phase and three phase must be less than rated current of genset. The unbalance
ratio of UVW phase current must be ≤20%.
3. Excessive single phase output in three phase genset will cause the alternator run with
serious phase unbalance, resulted the alternator will overheat and burn.
CAUTION
• If overloading of the circuit trips the AC circuit breaker, reduce the electrical load on the circuit, and wait a few
minutes before resuming operation.
• Breaker can prevent the electric shock. If need to replace, please replace one that has equal degree and
performance.

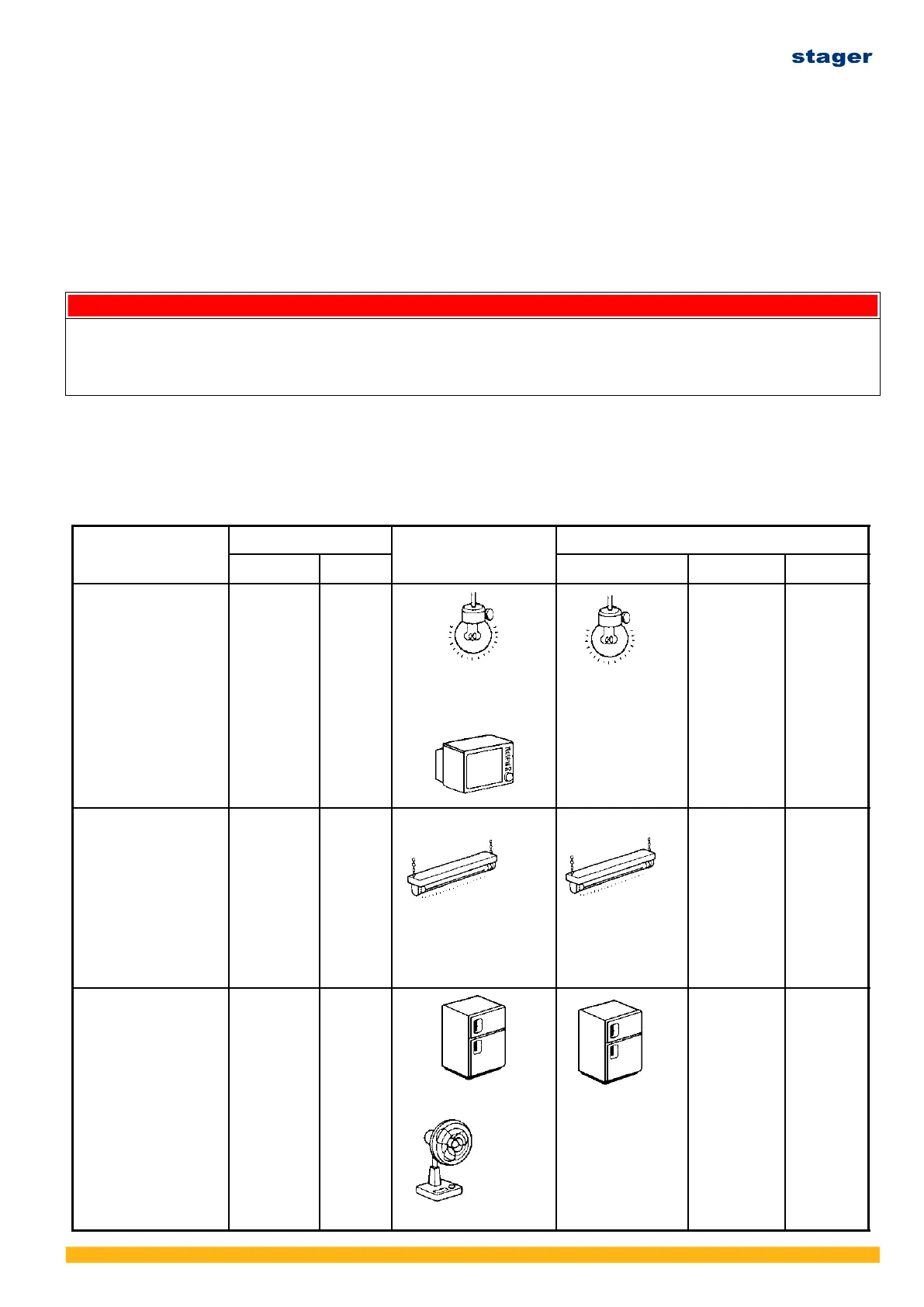

7.3 Typical electrical appliance
Electrical appliance particularly motor-driven equipment will produce very high current while
starting, the below table provides the reference for connecting these apparatus to the generator
set.
TYPE
WATTAGE
TYPICAL APPLIANCE
EXAMPLE
STARTING RATED
APPLIANCE STARTING RATED
·Incandescent lamp
·Heating appliance
X1 X1
Incandescent lamp
TV
Incandescent
lamp
100W
100VA
(W)
100VA
(W)
·Fluorescent lamp X2 X1.5
Fluorescent lamp 40W
Fluorescent lamp
80VA
(W)
60VA
(W)
·Motor-driven
equipment
X3~5 X2
Refrigerator
Electric fan
Refrigerator
150W
450-750VA
(W)
300VA
