4 Installation
20 01.2019
ba-o.1.8.0-en-3.1
(1)
Screw lock
(2)
Nut
(3)
Distance washer 3 mm
(4)
Distance washer 1 mm
(5)
Trolley side cheek
B
Runway width
a
Track clearance

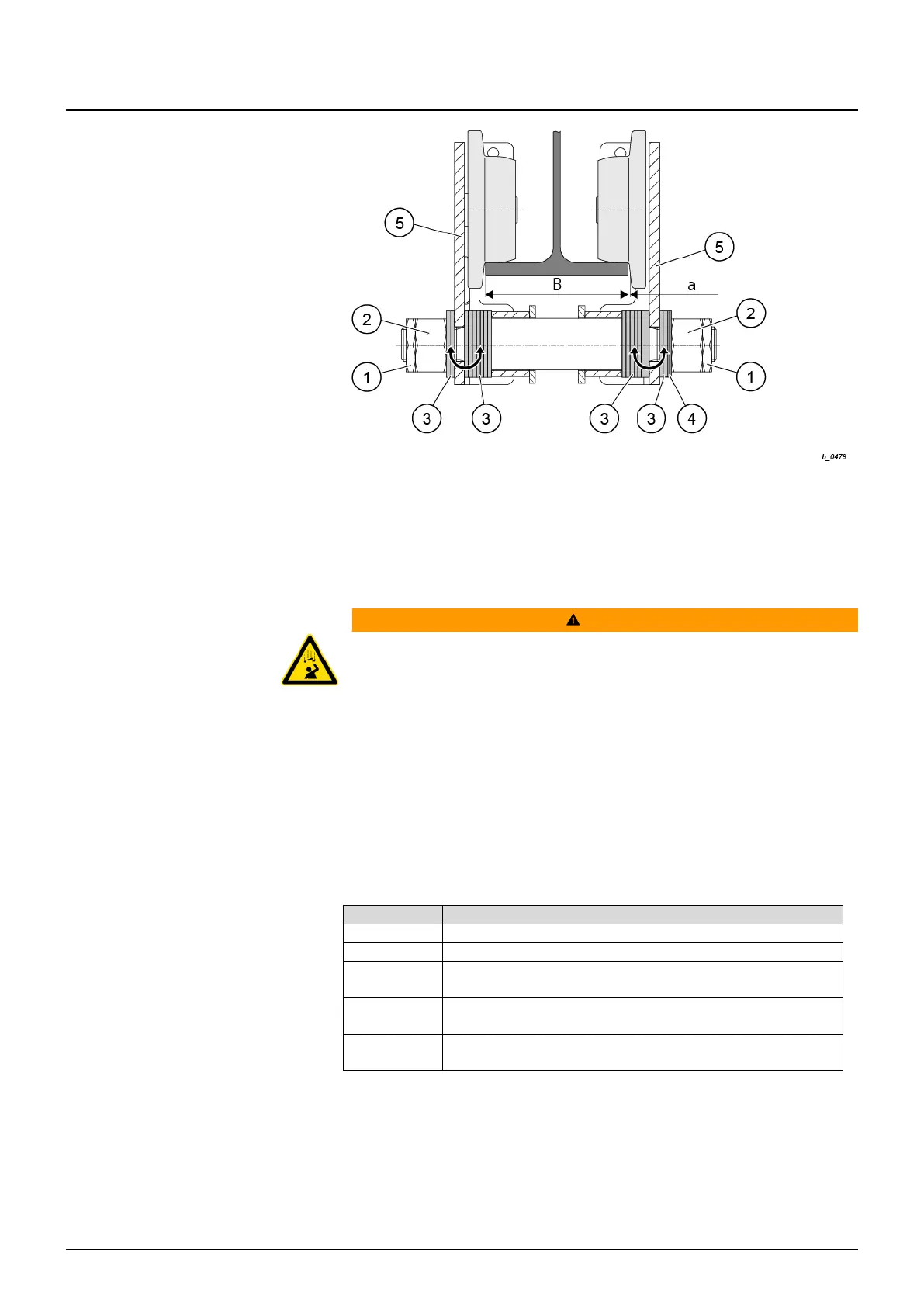

Fig. 12
The trolley is set to the runway width (B) specified in the order. The track clearance (a)
per side is 3 mm. If necessary, the track clearance (a) can be readjusted by moving the
distance washers (3) and (4) as described in the following. The track clearance (a) must
not be greater than 3 mm on one side.
WARNING
Danger due to falling parts
An unsecured chain hoist can cause falls and injuries.
➢ Secure chain hoist against falling.
1. Secure chain hoist against falling.
2. Remove screw lock (1).
3. Loosen the nut (2).
4. Remove the trolley side cheek (5) from the suspension bolt.
5. Set the correct dimension through the symmetrical arrangement of the distance
washers (3) and (4).
6. Fit the trolley side cheek (5) on the suspension bolt.
7. Tighten the nut (2) with the specified torque (see table).
8. Attach screw locks (1).
Type
Nm
US-G10
Tighten castellated nut and then release to the next cotter pin hole.
K.T 22
52
KFN 10
KFK 10
130
KFN 32
KFK 32
470
KFN 63
KFK 63
1100
