Stahl ST10 - Trolley; Operating Hours Counter; General Overhaul

7 Inspection and maintenance
01.2019 45
ba-o.1.8.0-en-3.1

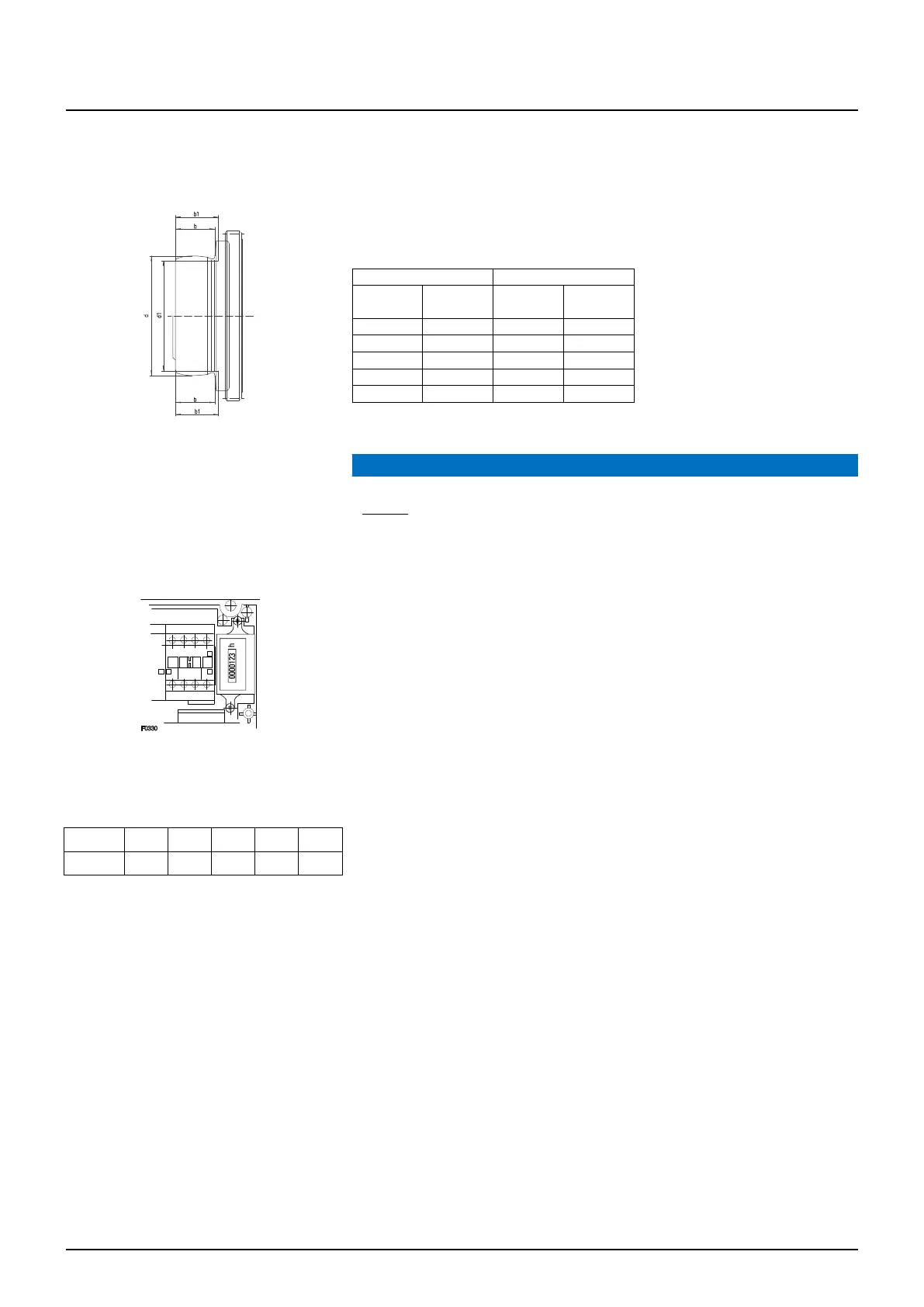

7.17 Trolley
Wheels, wheel drive and runway
Fig. 55
• Visual inspection of wheels for wear.
• Visual inspection of runway beam for wear.
• Inspection of flanges for wear.
Nominal value
Limit for wear
Ø d
[mm]
b
[mm]
Ø d1
[mm]
b1
[mm]
50
15.5
48
17
63
17
60
18.5
82
27.5
76
29.5
100
33
95
35
125
38
119
40
NOTICE
Danger of material damage
If any one of the limits for wear d1, b2 is attained, the part must be replaced.
Ensure that the trolley runs smoothly over the whole distance.
7.18 Operating hours counter
Fig. 56
The integrated operating hours counter measures the hoisting time only, thus the value
measured must be doubled.
Example: 123 h measured; 246 h to be recorded
7.19 General overhaul
ISO
M3
M4
M5
M6
M7
D [h]
400
800
1600
3200
6400
The mechanism (motor and gear; not applicable to wearing parts) of the ST chain hoist is
classified according to ISO. The theoretical full load lifetime in hours shown opposite (D)
is applicable for normal hoist applications.
If the full load lifetime (D) minus the lifetime expired is nought, the wire rope hoist must
be overhauled by the manufacturer.
