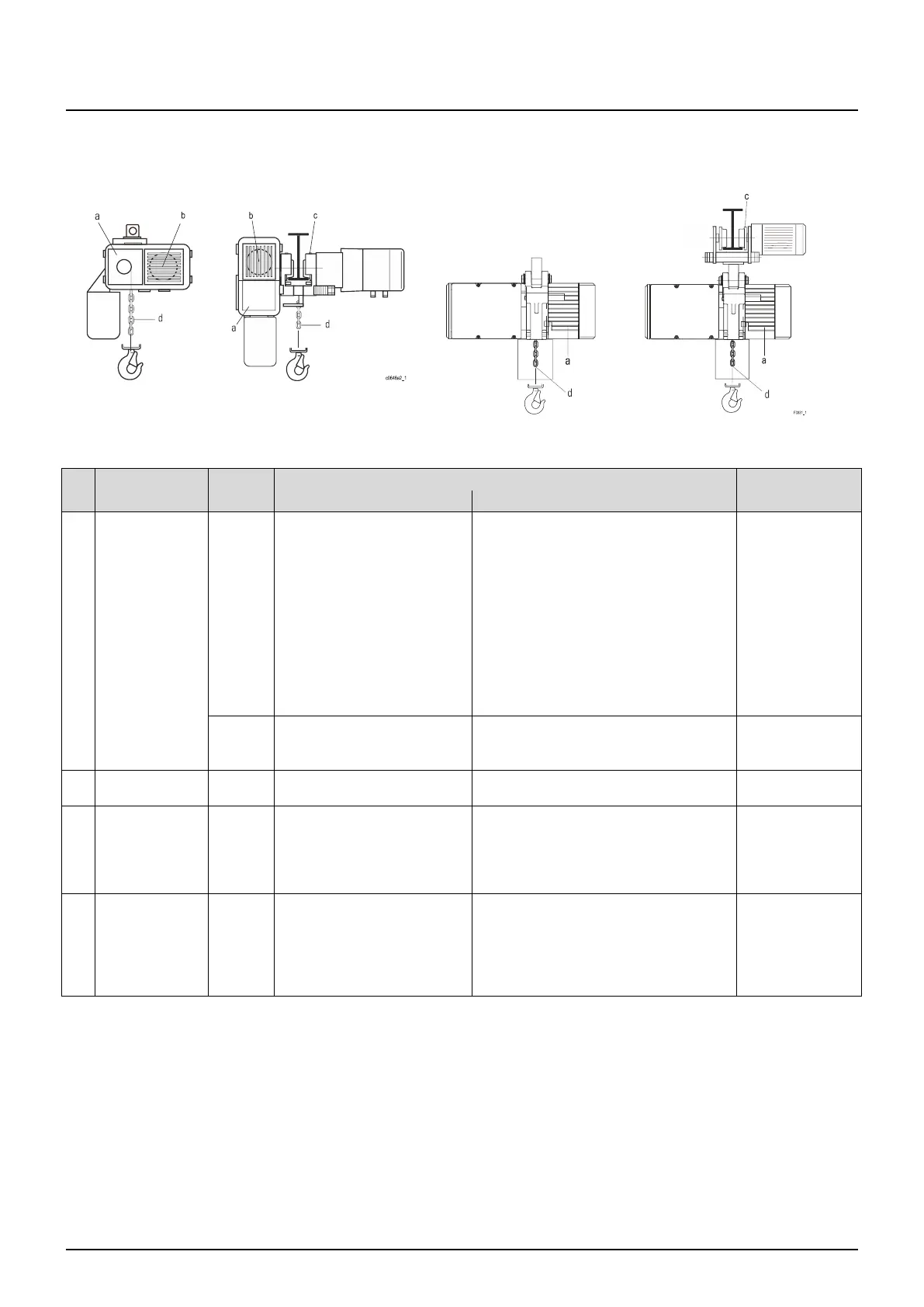

9.6 Lubricants
ST 05
ST 10 - ST 60
Item
Lubrication point
Lubricant
type
Lubricant product name
Quantity
Factory filling
Alternative
a
Hoist gear
Oil
MOTUL DEXRON III
1)
Rivolta F.L.500
3)
TOTAL ATF DEXRON III
1)
ST 10: 700 ml
ST 10: 1000 ml
2)
ST 20: 1200 ml
ST 20: 1500 ml
2)
ST 30: 1200 ml
ST 30: 1500 ml
2)
ST 32: 1600 ml
ST 32: 2500 ml
2)
ST 50/60: 1600 ml
ST 50/60: 2500 ml
1)
Grease
FUCHS RENOLIT FLM 0
FUCHS RENOLIT RHF1
1)
Rivolta F.L.G 3-1
3)
Shell Gadus S2 V220 0
3)
Castrol Viscogen 0
3)
Klüberplex AG 11
3)
ST 05: 200 g
b
Hoist motor
bearing
Grease
Mobilux EP 3
FUCHS RENOLIT RHF1
1)
ST 05: 50 g
c
Travel wheel
(gearing)
Return sheave
Grease
Mobil Mobilux EP 3
FUCHS RENOLIT RHF 1
1)
Rivolta F.L.G 3-1
3)
FUCHS RENOLIT DURAPLEX EP 3
3)
BP Energrease LS-EP3
Klüberplex BEM 41-132
1)
100 g
d
Chain
Grease
FUCHS RENOLIT LZR 000
1)
FUCHS RENOLIT G 7 FG 1
3)
Rivolta F.L.G 3-1
3)
Aral fluid grease N
1)
FUCHS LUBRITECH GEARMASTER ZSA
1)
Klüber CENTOPLEX GLP 500
as required
1)
Lubricant suitable for low application temperatures, max. -40 °C
2)
Short height, double chain hoist
3)
H1 - lubricant for the food industry
9.7 Lubricants for travel drive
See instructions of travel drive.
9.8 Circuit diagrams
See separate enclosure.
