4.2 Chain hoist with trolley
4.2.1 Assemble the trolley
US-G10

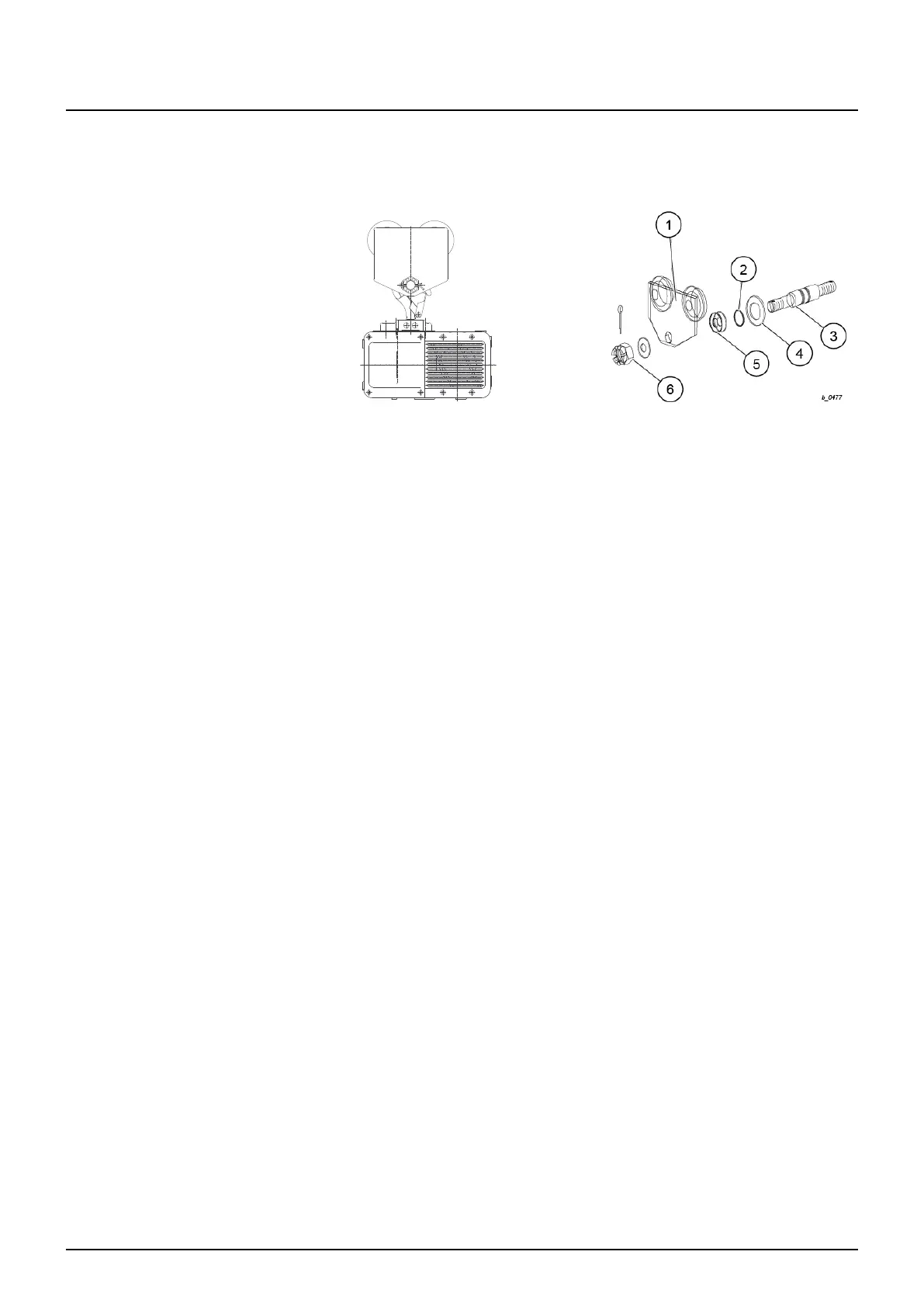

Fig. 7
(1)
Trolley side cheek
(2)
Snap ring
(3)
Suspension bolt
(4)
Washer
(5)
Distance washers
(6)
Castellated nut
1. Fit the overhead suspension (if available) on the suspension bolt (3).
2. Fit the washer (4) on the suspension bolt (3).
3. Attach the snap ring (2) to the suspension bolt (3).
4. Set the correct dimension through the symmetrical distribution of the distance wash-
ers (5).
5. Fit the trolley side cheek (1) on the suspension bolt (3).
6. Screw on castellated nut (6) with distance washers (5).
7. Repeat steps 2 to 6 with the second side.
8. Adjust runway width with adjusting washers (see chapter Adjust trolley to runway
width).
➢ Overhead suspension must be central to the trolley.
9. Tighten castellated nut and then release to the next cotter pin hole.
10. Attach screw locks.
