Stahl ST10 - Connecting Electric Trolley; Mounting Guide Rollers; Mounting Support Rollers

4 Installation
24 01.2019
ba-o.1.8.0-en-3.1
4.5 Connecting electric trolley
Plug connection cable into chain hoist and secure.

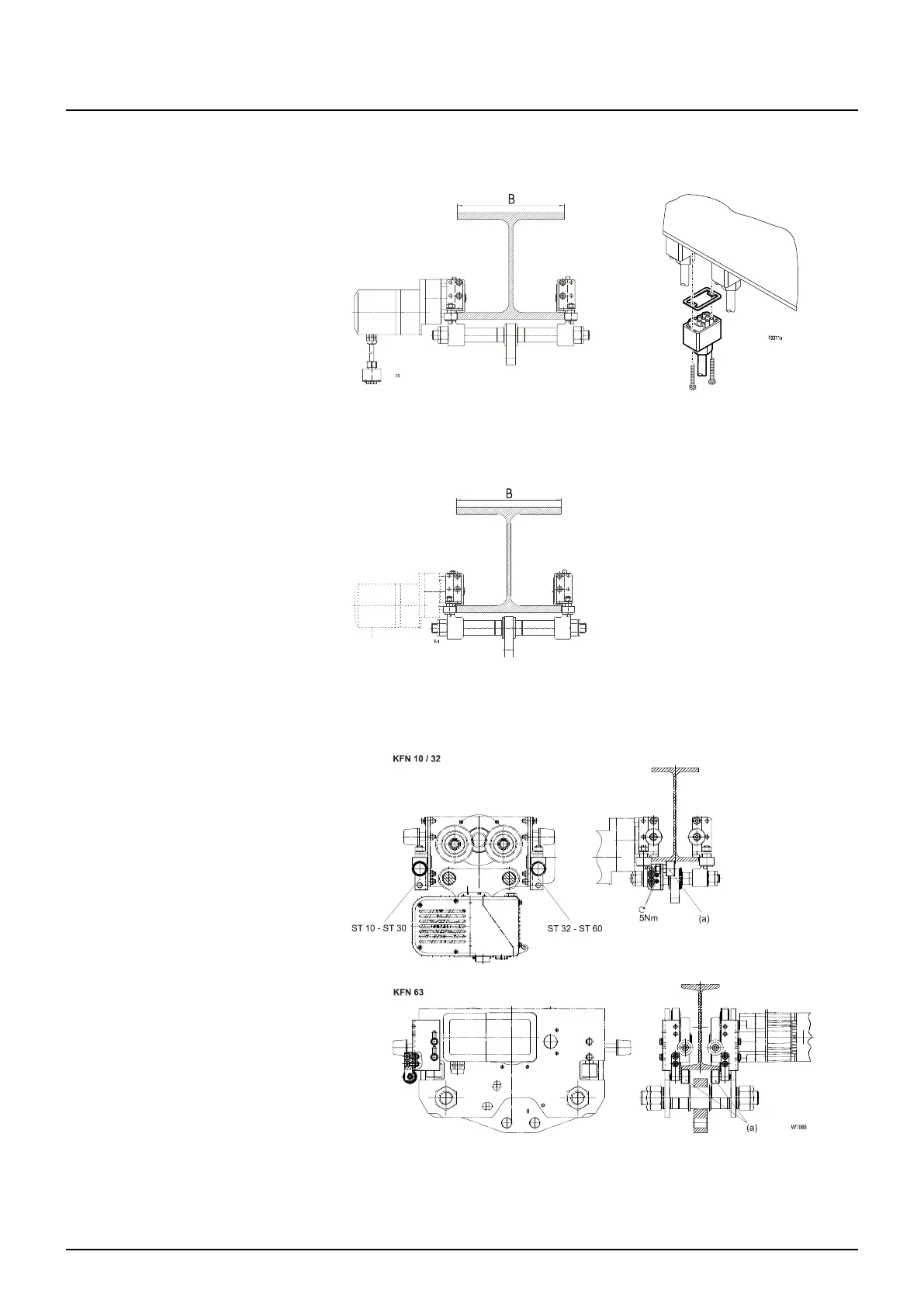

Fig. 20
Fig. 21
4.6 Mounting guide rollers
Fig. 22
KFN / KFK 10/ 32: B ≥260
KFN / KFK 63 B: >300
4.7 Mounting support rollers
Fig. 23
The support wheel (a) must be in contact with the runway when mounted.
