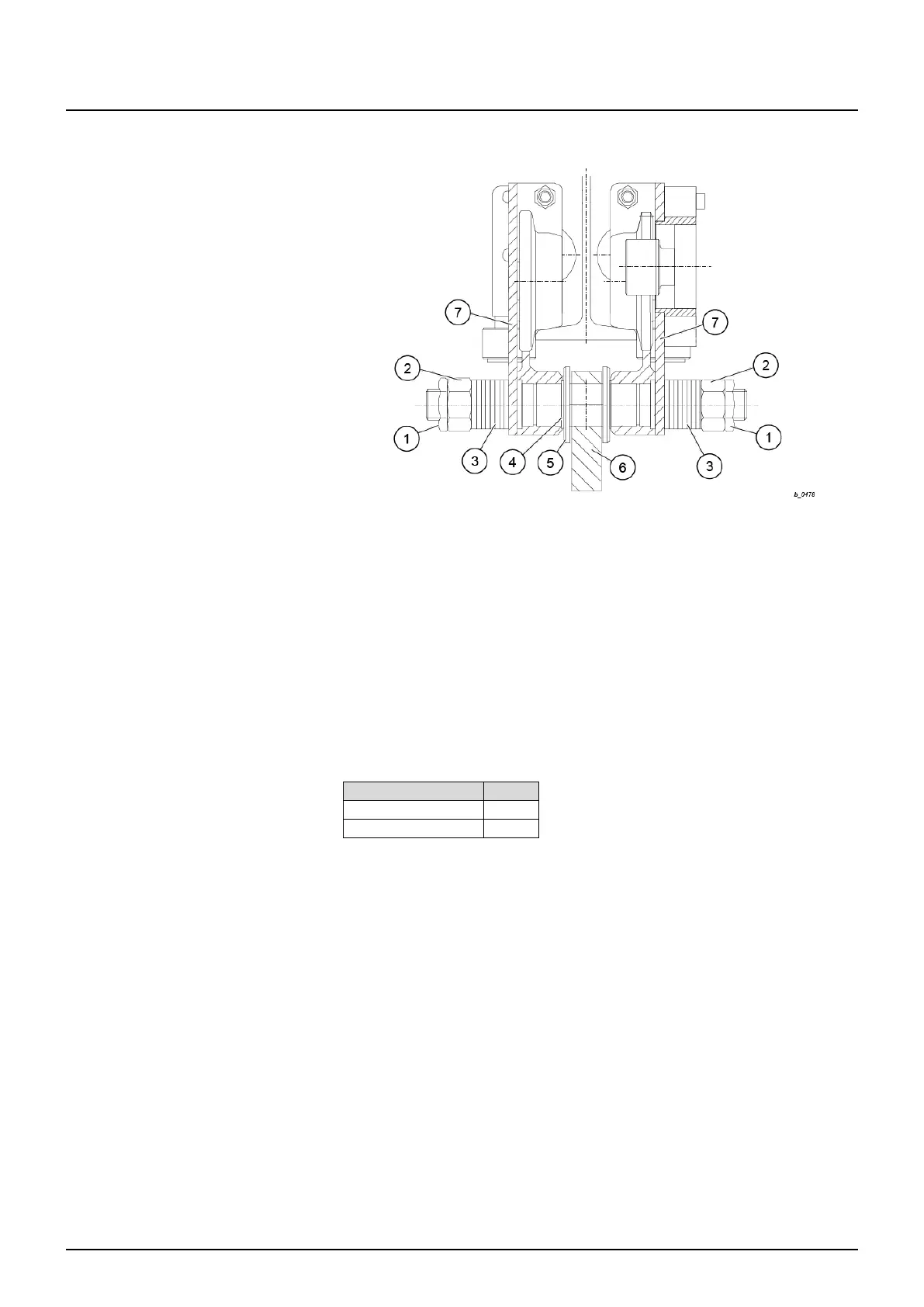

Fig. 8
1. Fit the overhead suspension (6) on the suspension bolt.
2. Fit the washer (5) on the suspension bolt.
3. Attach the snap ring (4) to the suspension bolt.
4. Set the correct dimension through the symmetrical distribution of the distance wash-
ers (3).
5. Fit the trolley side cheek (7) on the suspension bolt.
6. Screw the nut (2) with the distance washers (3).
7. Repeat steps 2 to 6 with the second side.
8. Adjust runway width with adjusting washers (see chapter Adjust trolley to runway
width).
➢ Overhead suspension must be central to the trolley.
9. Tighten the nut (2) with the specified torque (see table).
10. Attach screw locks (1).
