1. KFK

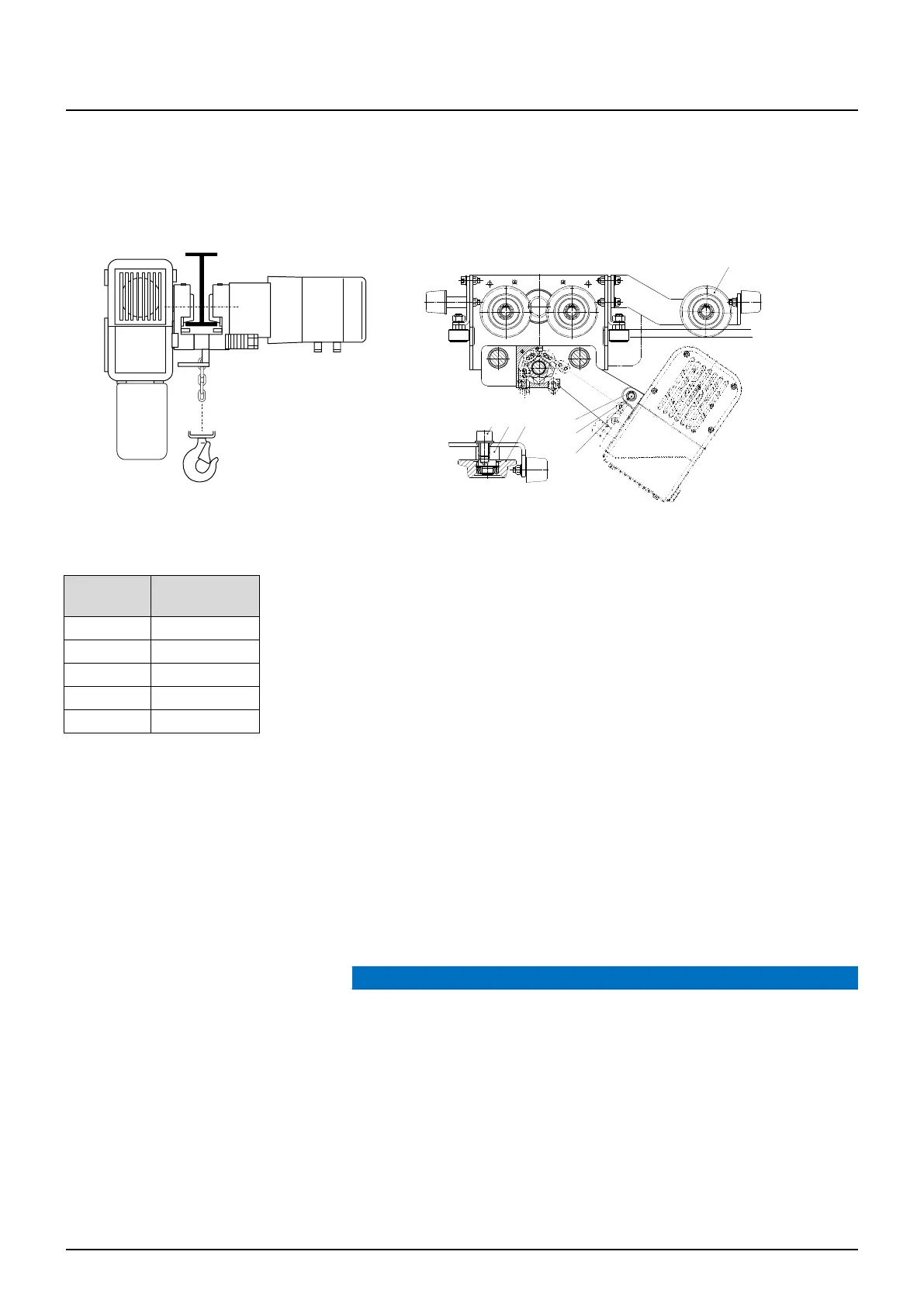

Fit suspension piece with suspension bolt (a) to chain hoist. Observe installation posi-
tion of suspension piece for 1/1 and 2/1 reeving! Lock bolt (a) with washer (b) and
circlip (c), see sketch.
2. Slide trolley onto runway or push on from below after swivelling the side cheeks up.
3. Check that screws and nuts are tightened with specified torque, see page 53.
4. Ensure screws are locked!
KFK ..
1. Turn wheel (d) by means of cam (e) until it is in contact with the running surface of the
runway.
Tighten screw (f).
N.B.: The guide roller must be flush with the wheels
Danger of increased wear
Poor beam quality or lopsided running of the trolley may lead to increased wear.
Ensure that the trolley runs smoothly over the whole distance.
