ST05
• Set load down.
• Calculate number of shims to be removed. The brake displacement is altered by
0.5 mm per shim.
• Example:
Brake displacement measured: 1.8 mm
Remove 2 shims: -1.0 mm
New brake displacement: 0.8 mm

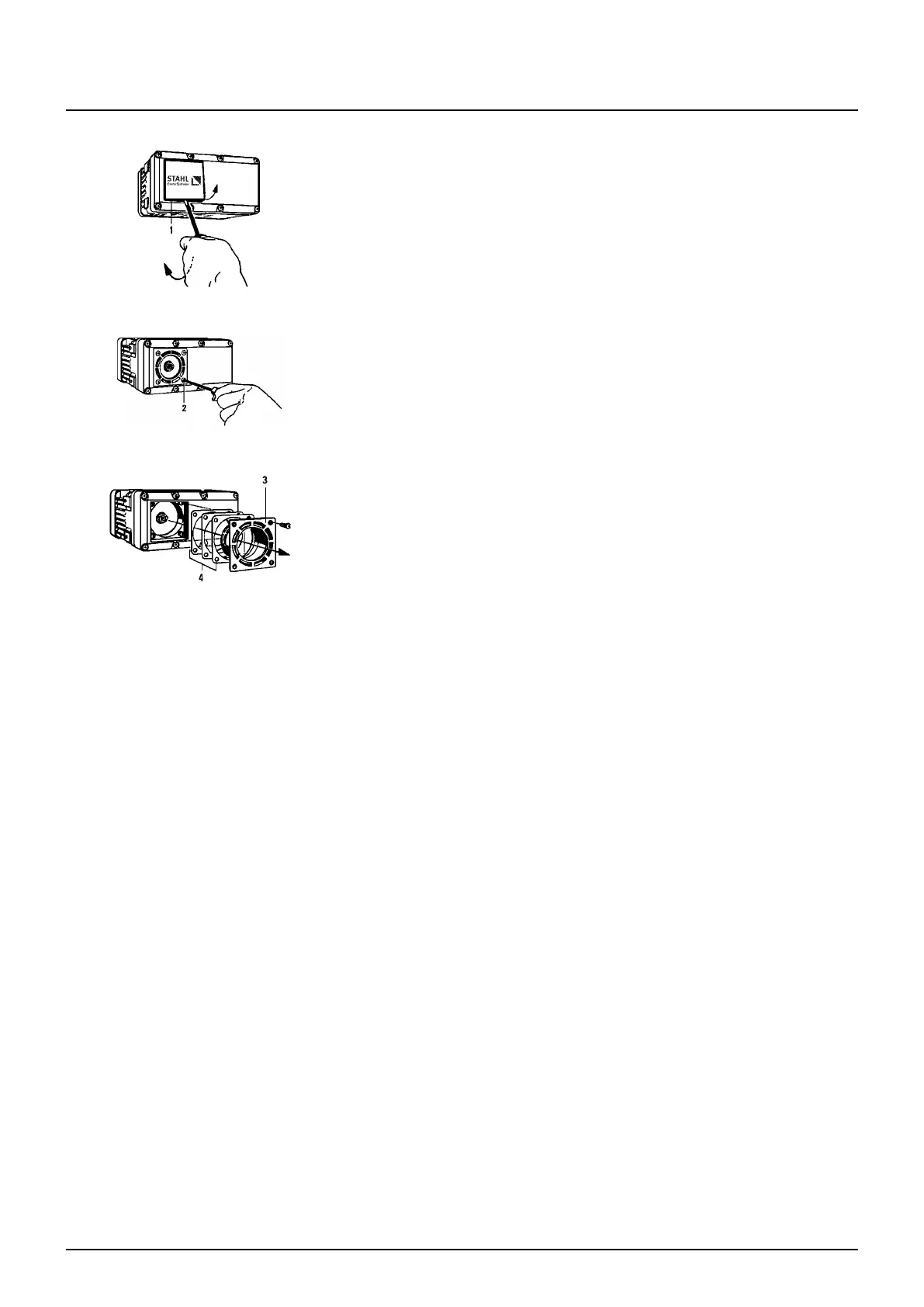

• Lever off cover (1) with a screwdriver.
• Remove 4 screws (2).
• Pull off brake flange (3).
• Remove number of shims (4) calculated.
• Push on brake flange.
• Reassemble in reverse order.
• Check brake displacement.
• Replace brake/slipping clutch unit if all shims have been removed. Then reset brake
displacement.
