7 Inspection and maintenance
01.2019 41
ba-o.1.8.0-en-3.1
ST 05
ST 05
ST 10, ST 20,
ST 50, ST 60
ST 10, ST 20,
ST 50, ST 60
ST 30, ST 32
ST 30, ST 32
Stationary
Stationary
Stationary
Normal height
Short height
Normal height
Short height
Normal height
Short height

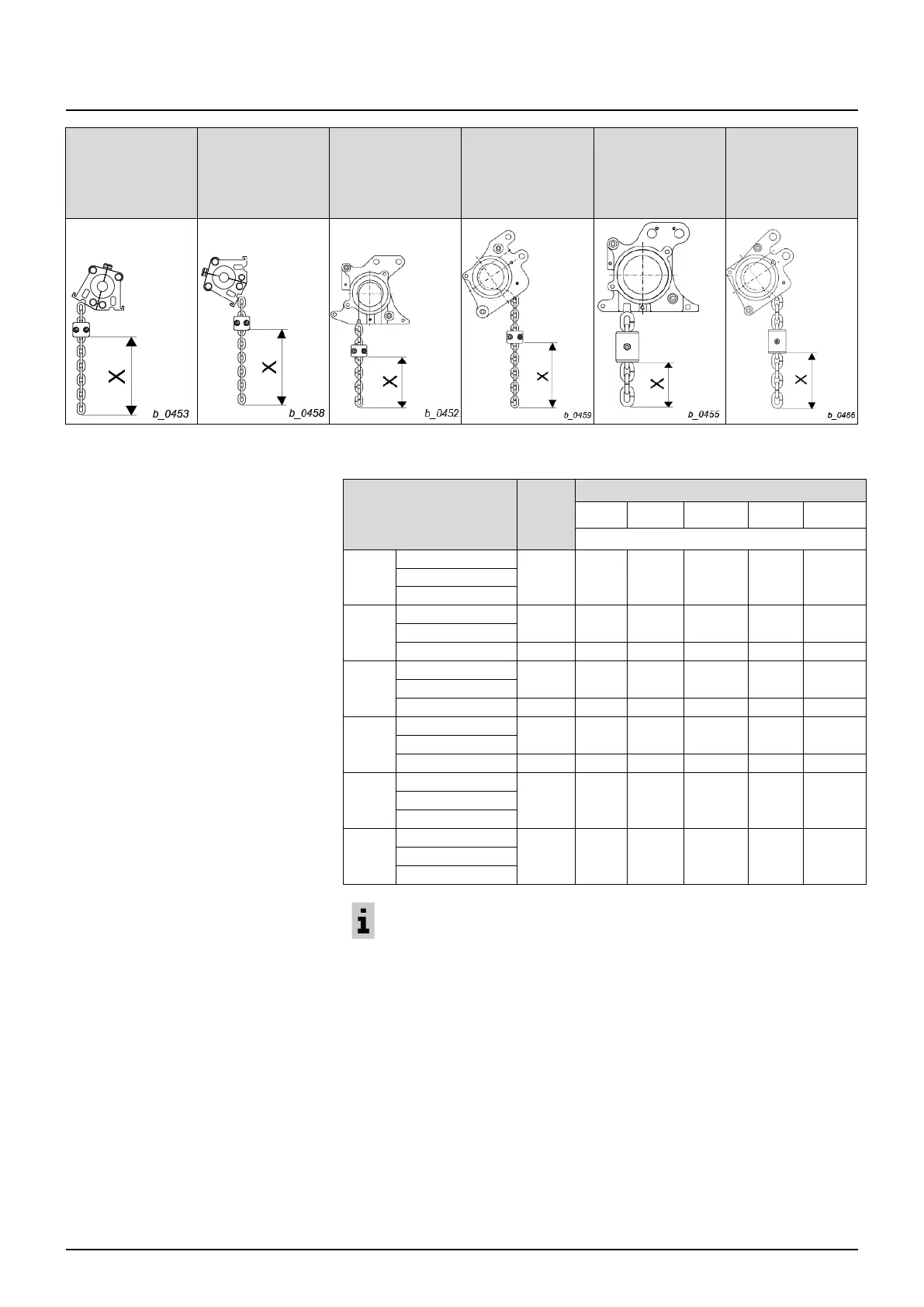

Fig. 46
Min. chain overhang X for free chain length
Chain designation
Type
X min.
4x12
5x16
7x21.9
9x27
11.3x31
[mm]
Installation in chain link
ST 05
Stationary
130
12
Normal height
Short height
ST 10
Stationary
110
8
Normal height
Short height
140
10
ST 20
Stationary
110
6
Normal height
Short height
150
8
ST 30
Stationary
100
5
Normal height
Short height
150
7
ST 32
Stationary
150
7
Normal height
Short height
ST 50
ST 60
Stationary
160
6
Normal height
Short height
If the dimension X min. deviates from the given number of chain links, 1 chain link
must be added.
