IMPORTANT: DURING BURNER REMOVAL CARE
MUST BE TAKEN NOT TO DAMAGE THE INSULATION
BOARDS.

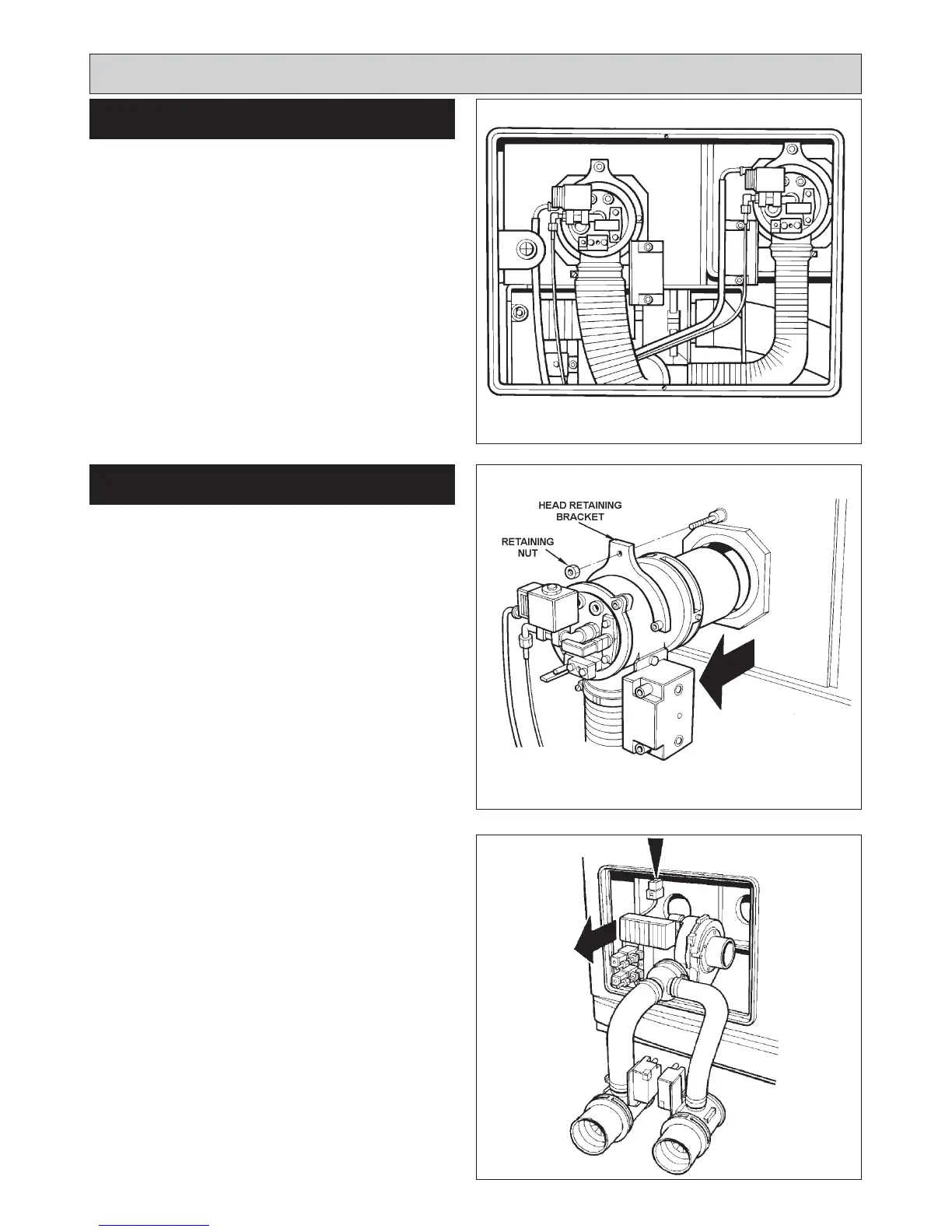

SEE FIGS. 2, 3 & 4
1. Undo the burner locking nut and remove head
retaining bar.
2. Withdraw burner head.
SEE FIG. 3
3. Place a sheet on the floor in front of the cooker to act
as a working area.
4. Disconnect the 12-pin plug from above the burner.
5. Disconnect air intake.
SEE FIG. 4
6. Slacken 2 M6 fixings and remove flue safety
thermostat.
7. Withdraw burner unit.
6
BURNER REMOVAL
FIG. 2
FIG. 3
FIG. 4
DESN 514814
DESN 514847
DESN 514815
Burner Removal
BURNER HEAD REMOVAL
