10
Flue greater than 150mm
(6”) Diameter
SEALING
This cooker and flue system operate under a
positive pressure. It is essential that all flue joints
are tightly sealed against flue gas leakage and
tested accordingly. (See fig. 7, 8, 9, 10 & 10a)
There is a flue pipe collar available which surrounds
the flue pipe where it meets the wall, giving a tidier
finish to a tiled background. The hob back filler piece
and flue collar rosette are available as an optional
extra. (See Fig.11)

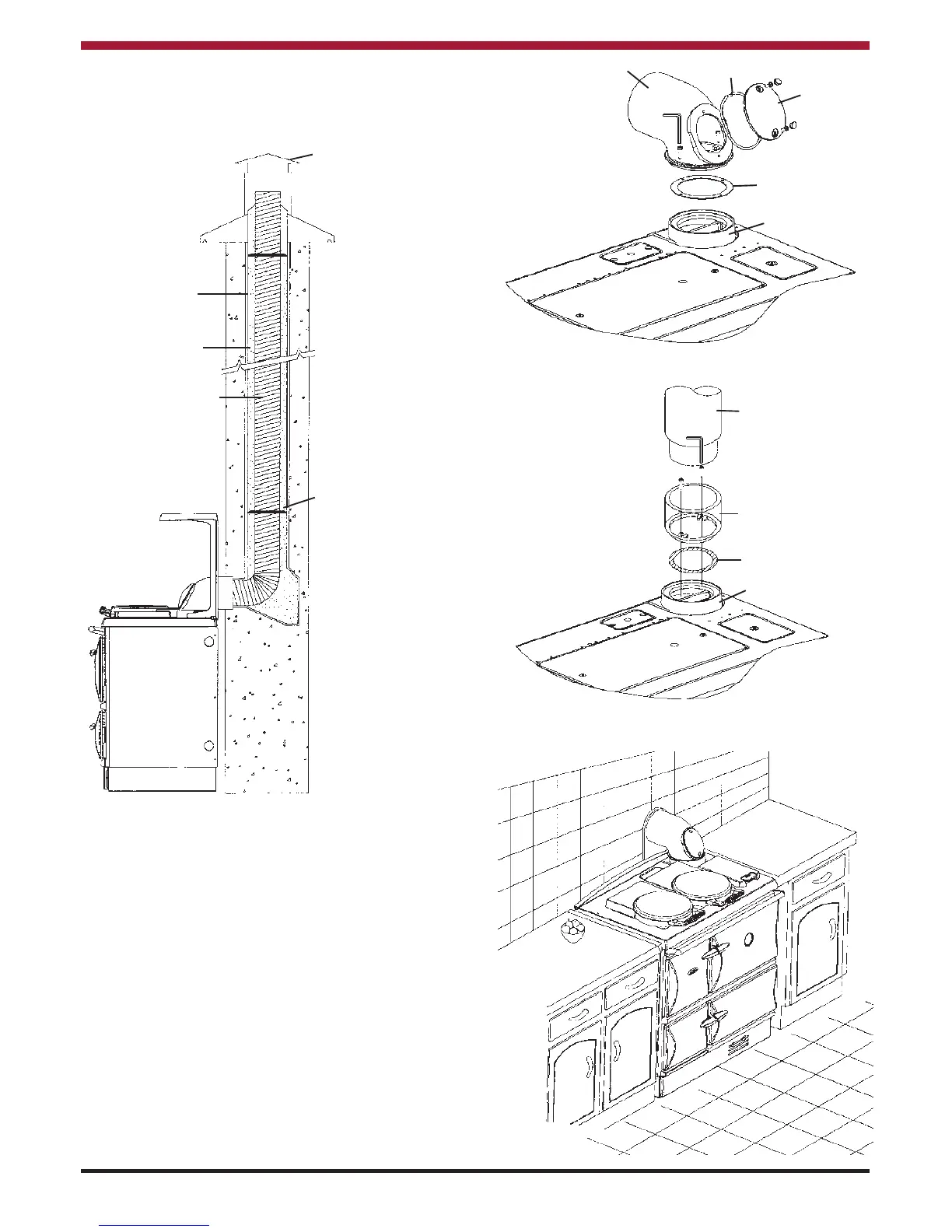

Fig.11
Fig. 9
Fig.10
Fig.10a
Refer to Flue Assembly Instruction sheets
Approved
Flue Terminal
Bend
Gasket
Cleaning
Cover
Gasket
Collar
Pipe
Spigot
Gasket
Collar
Clay Liner
Vermiculite Filler
150mm (6”) Flexible Flue
Liner
Sealing & Clamping
Plate
Seal Flue
Connector
To Next Page
