7
REGULATIONS
The installation must comply with the current editions of the following:
BS 5410: Oil Installations Part 1 under 45kW.
The Building Regulations: Part J England, Wales,
Part F Section 4 Scotland, Part L Northern Ireland and Part J Ireland.
The Control of Pollution (Oil) Regulations.
BS 5449: Forced circulation hot water central heating systems for domestic installations.
Health and Safety at Work Act.
BS 7671: Requirements for Electrical Regulations. Safety Document 635: The Electricity at Work
Regulations.
BS 7593: Treatment of Water in Domestic Hot Water Systems.
BS 7074 Part 1 & 2: Hot Water Supply.
BS 4814: Sealed System.

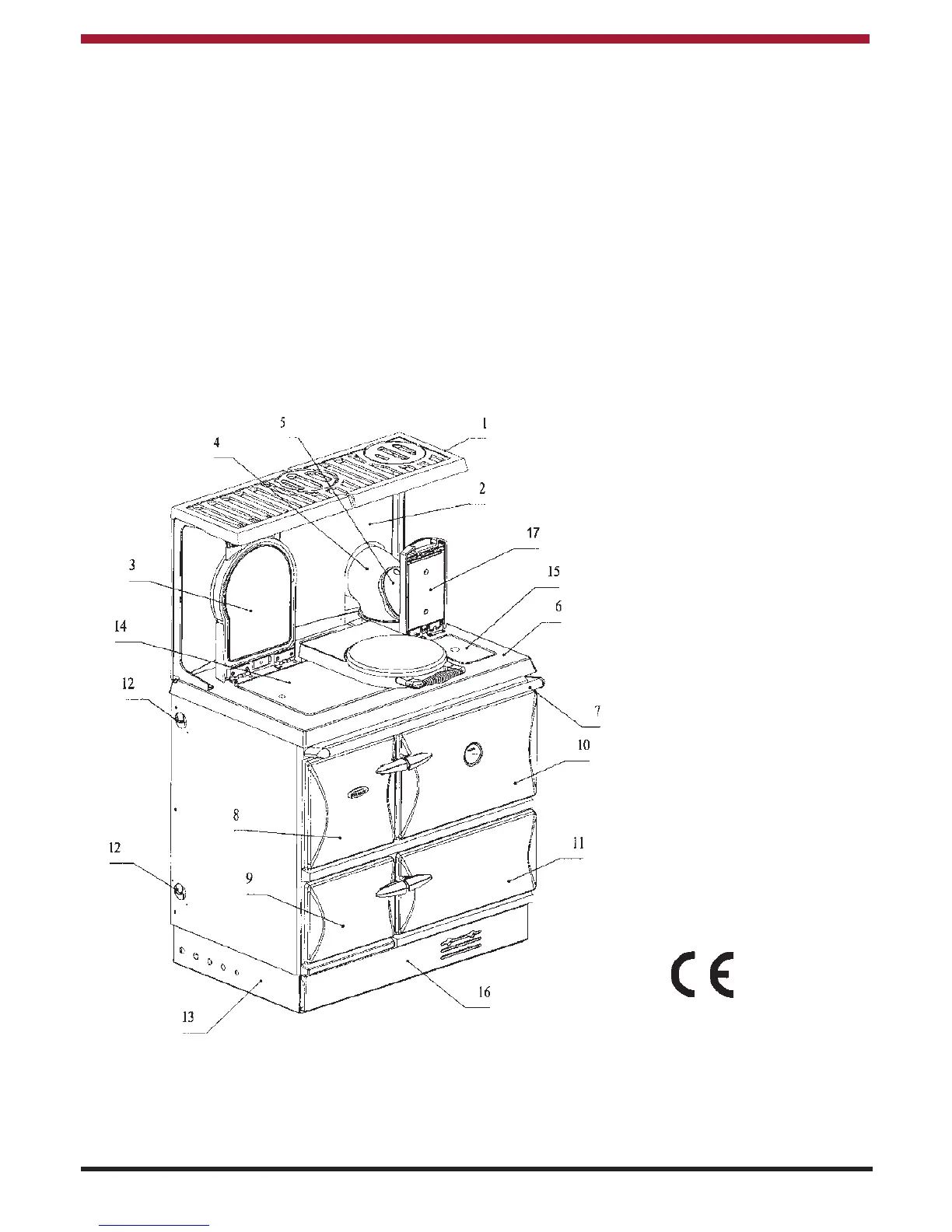

SCHEMATIC
1. Platerack (to order)
2. Splashback (to order)
3. Hotplate Covers
4. 150mm (6”) 90° Bend
5. Bend Cleaning Plate
6. Hob
7. Towel Rail
8. Firedoor
9. Burner Door
10. Main Oven Door
11. Simmer Oven Door
12. Boiler Tappings
13. Base Frame
14. Hotplate
15. Simmer and Cleaning
Plate
16. Plinth
17. Simmer Plate Cover
Fig 2.
