Stanley BRANDON 80K Installation And Commissioning Instructions

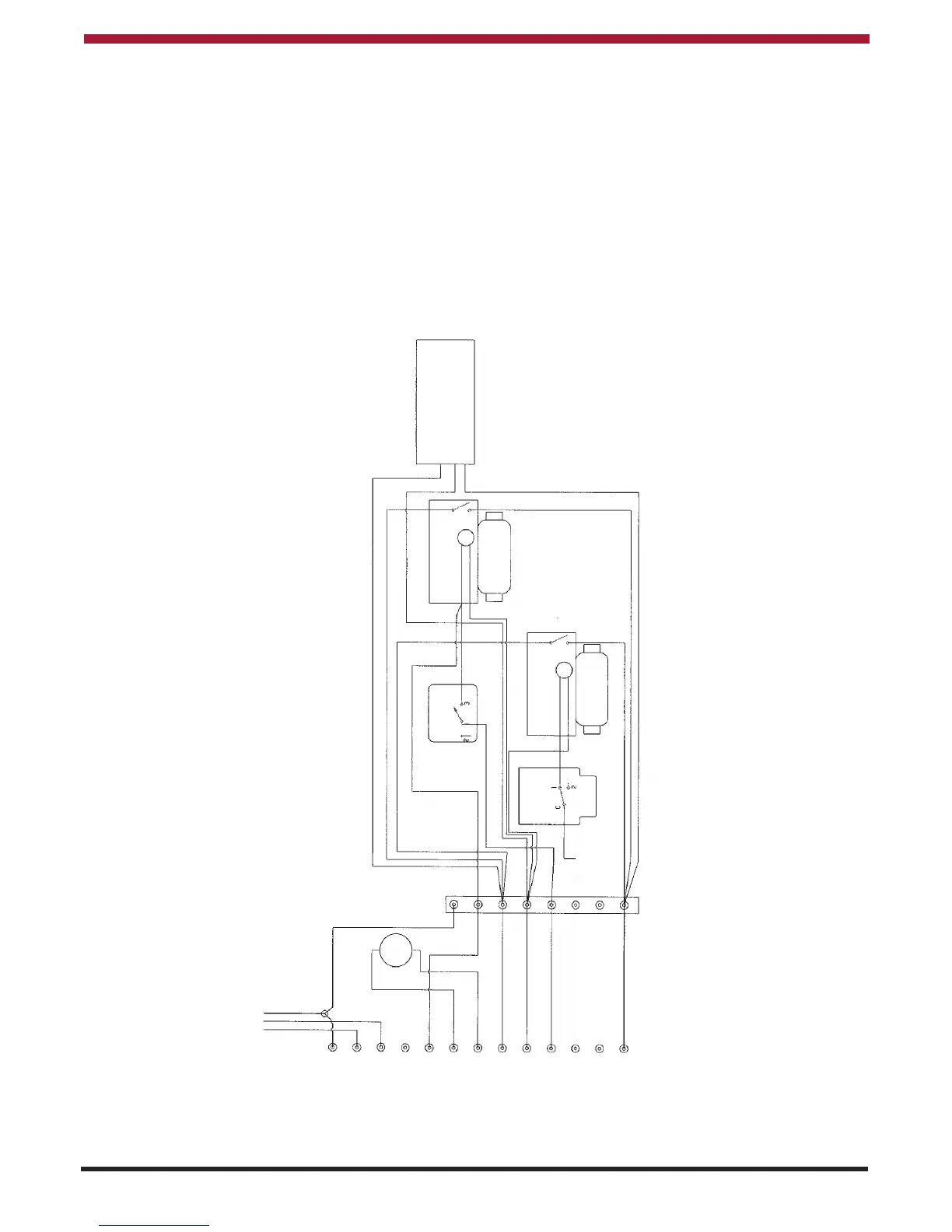

S PLAN WIRING DIAGRAM SHOWING ZONE CONTROLLED BY UNDERFLOOR HEATING ZONE Fig.29
23
EARTH
PUMP
M
L641A Cyl.Stat
T6360B Room Stat
Motorised Valve WET HEATING ZONE 1
ZONE 2 UNDERFLOOR HEATING SYSTEM & CONTROL
Motorised Valve Domestic Hot Water
EARTH POST
MAINS
Brandon TERMINALS
WIRING
CENTRE
NEUTRAL
LIVE
FLUE FAN
INTERSTAT
PUMP L
PUMP N
NEUTRAL
HEATING Timer
DHW Timer
NO DHW Timer
Boiler Run
PERMANENT
(FUSED) LIVE
M
Orange
Grey
Grey
Brown
Brown
Brown
Blue
Blue
Grey
Orange
Orange
1 2
4
5
6 7 8
9
10
1
1
12
13
3
