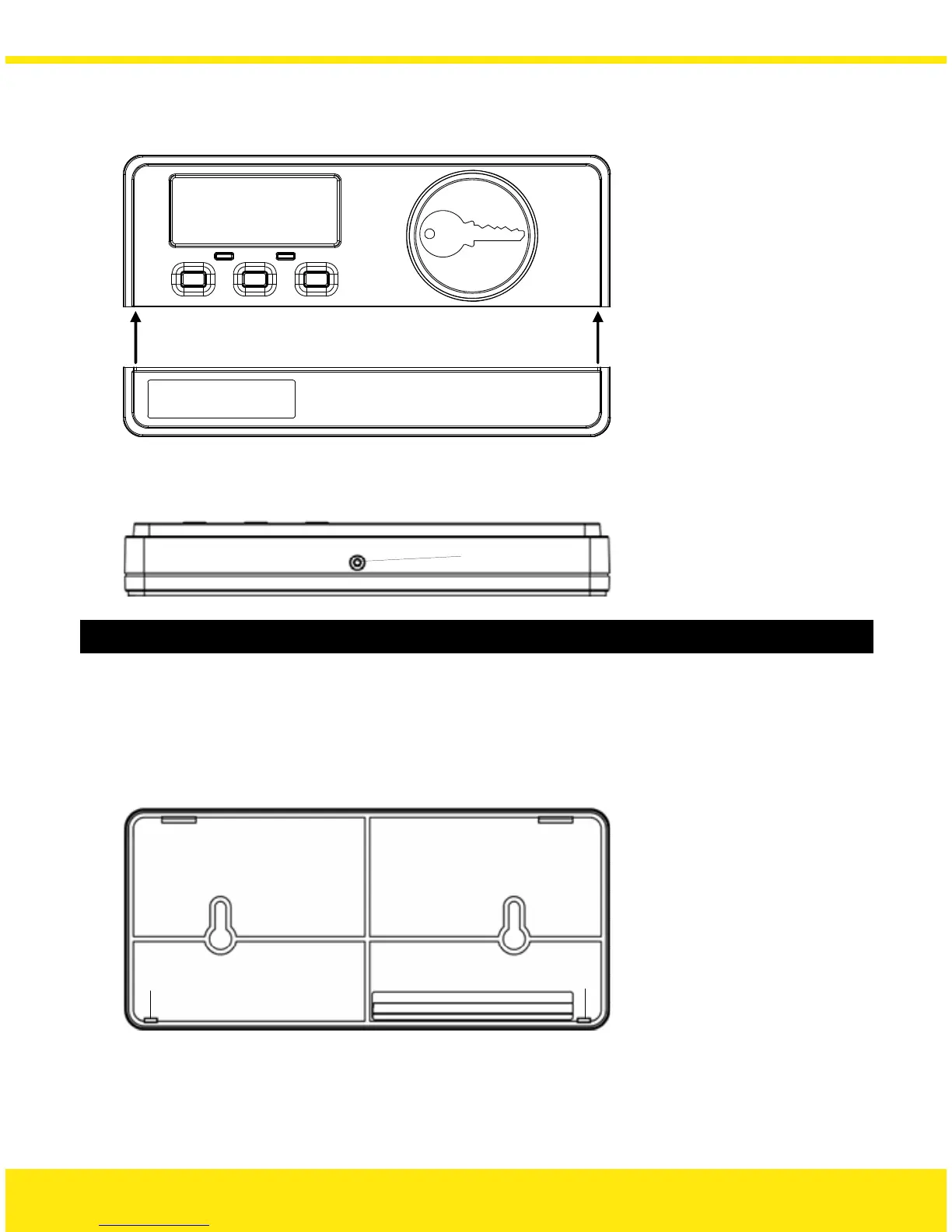

3. Locate the latches on either side of the cable cover into the slots inside each
edge of the upper case:
Lock latch here Lock latch here
4. Secure the cable cover using the screw hole located in the underside of the
cable cover:
Screw here
Removing the Unit
1. Take out the securing screw and apply gentle forward pressure to the underside
of the cable cover which should cause it to unlatch from the upper section.
2. Locate the loop latches each side and squeeze them to release the unit from the
mounting plate:
Release latch here Release latch here
3. While supporting the unit, lower it from the mounting plate locating tabs.
