Star Micronics NX-1500 - Print Head Replacement; Motor Unit Replacements

PARTS REPLACEMENT
– 40 –

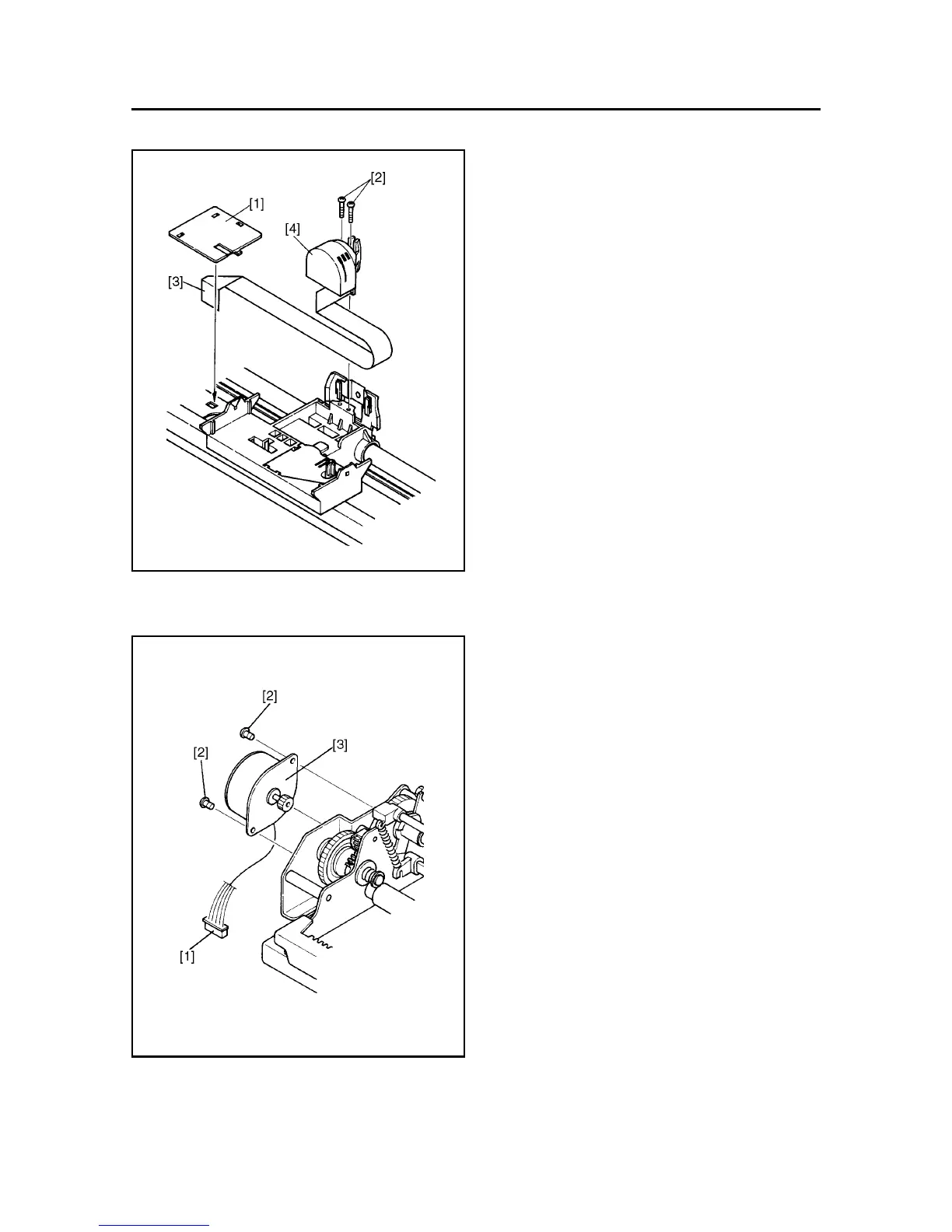

7. Print Head
(1) Remove
• Printer cover
• Ink ribbon cartridge
• Cable holder [1]
• Two tapping screws [2]
• Head cable [3]
• Print head [4]
WARNING: The print head become hot after print-
ing so wait for it to cool before remov-
ing it.
(2) Adjust
• Gap between print head and platen.
Refer to item 1 of Chapter 3.
8. Paper Feed Motor Unit
(1) Remove
• Printer mechanism according to the procedure
described in item 3.
• Cord fastener binding the lead wires.
• Connector [1]
• Two screws [2]
• Paper feed motor unit [3]
