(5) Connect the interface cable to the connector on the rear panel of the printer.
(6) Fasten the connector clasps.
3-1-3. Connecting USB Cable

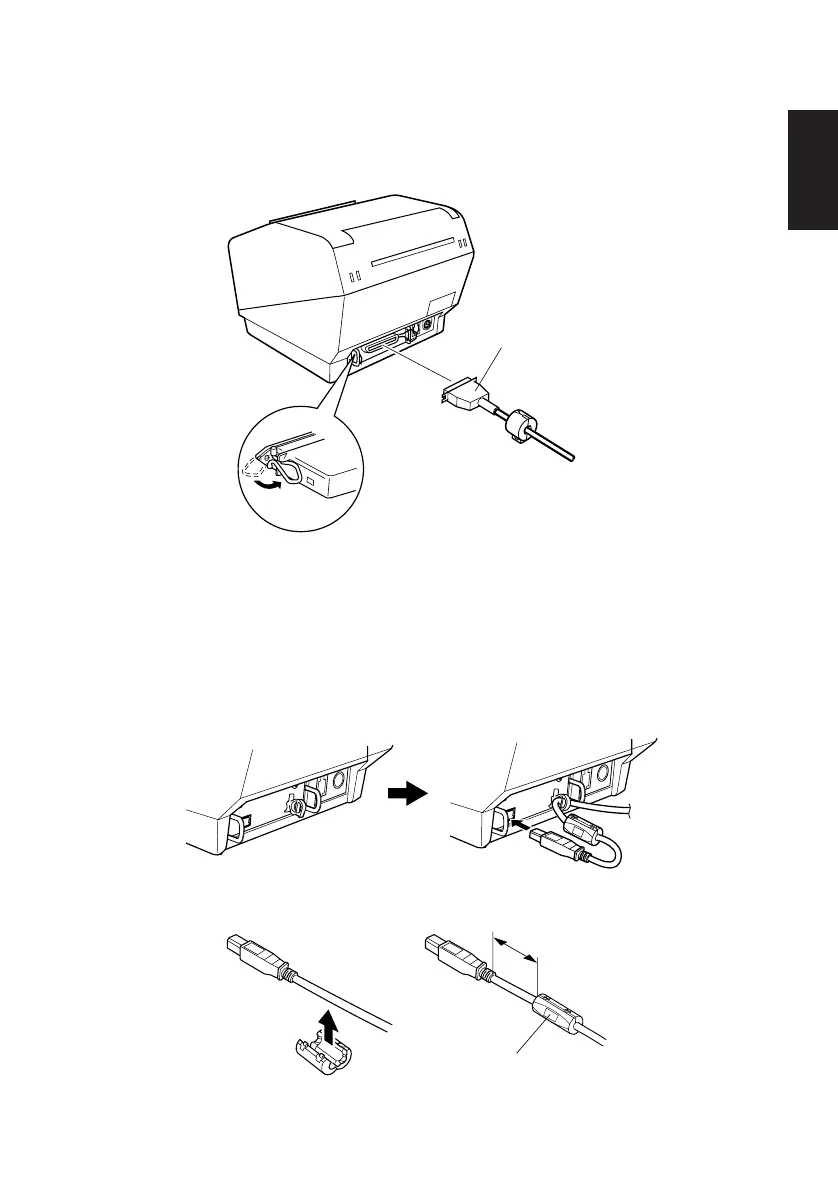

Affix the ferrite core onto the USB cable as shown in the illustration below and
make sure to pass the cable through the cable support as shown in the illustration.
Parallel interface cable
4 cm (maximum)
Ferrite core
