– 27 –
TYPE
ONLY
M
Absolute Ratings (Ta = 25˚C)
D1 Voltage Breakdown 100V
Peak Forward Current 1A

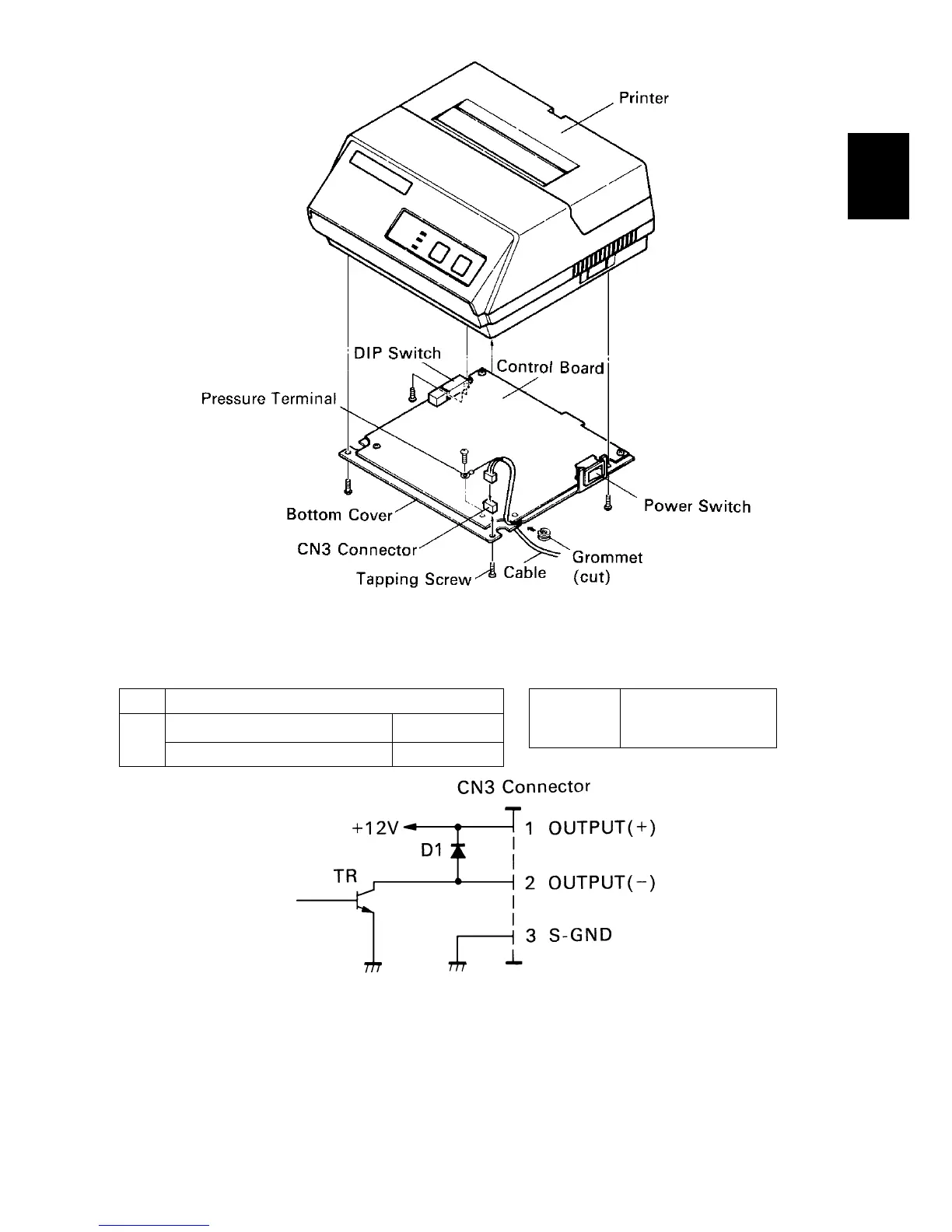

Figure 7-8. Cable Connection
7-6-2. Peripheral Drive Circuit
Figure 7-9. Drive Circuit
Caution: Do not use external power supply with peripheral drive circuit.
7-6-3. Control Codes
Codes for Drive Circuit control are ESC BEL n1 n2, BEL and FS. Refer to the
Control Codes in Chapter 5.
Drive
Output
12V, MAX. 1A
To Next Page
