Starrett IQ - Dimensions and Precautions

14

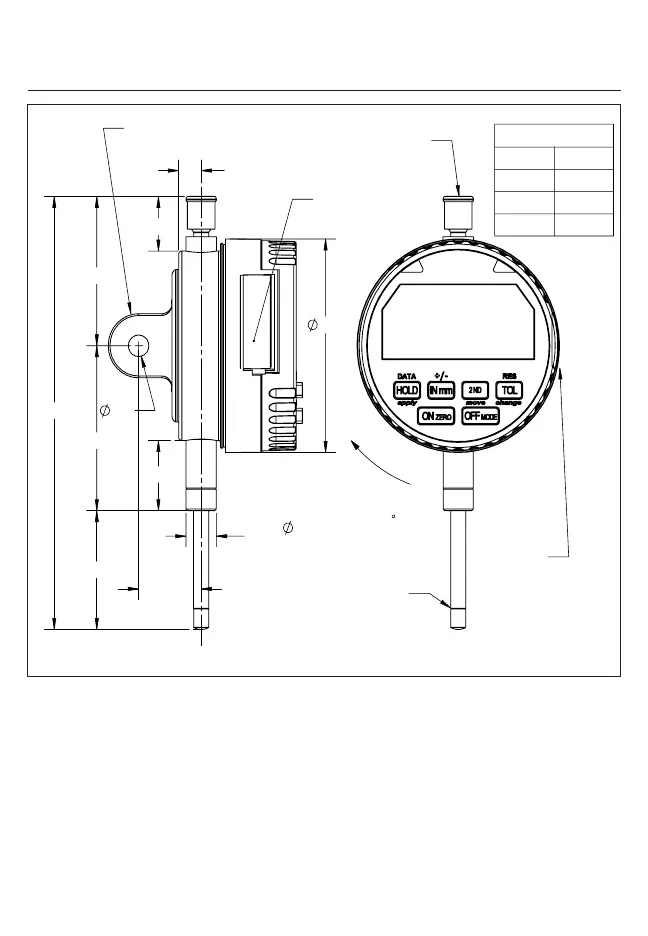

Dimensions & Useful Tips/Precautions
CABLE
OUTPUT
LOCATION
FINGER LIFT
(OPTIONAL DUST CAP)
#4-48 THRD.
(OPTIONAL M2.5 THRD.)
.64
1.75
1.93
.25
2.50
.373
(OPTIONAL 8mm)
.82
'A'
1.39
.28 FLAT BACK
.77
LUG BACK
(OPTIONAL FLAT BACK)
BATTERY TRAY
(2X #CR2450)
BEZEL
ROTATION
270
CW
TRAVEL / 'A' DIM.
1.00" 5.07"
.600" 4.67"
.250" 4.32"
.150" 4.22"
• Avoid dust, dirt, lateral forces & shock
• Wipe spindle with a cloth & alcohol
• Use rigid & precise holders
• Make sure contact point is tight
