6

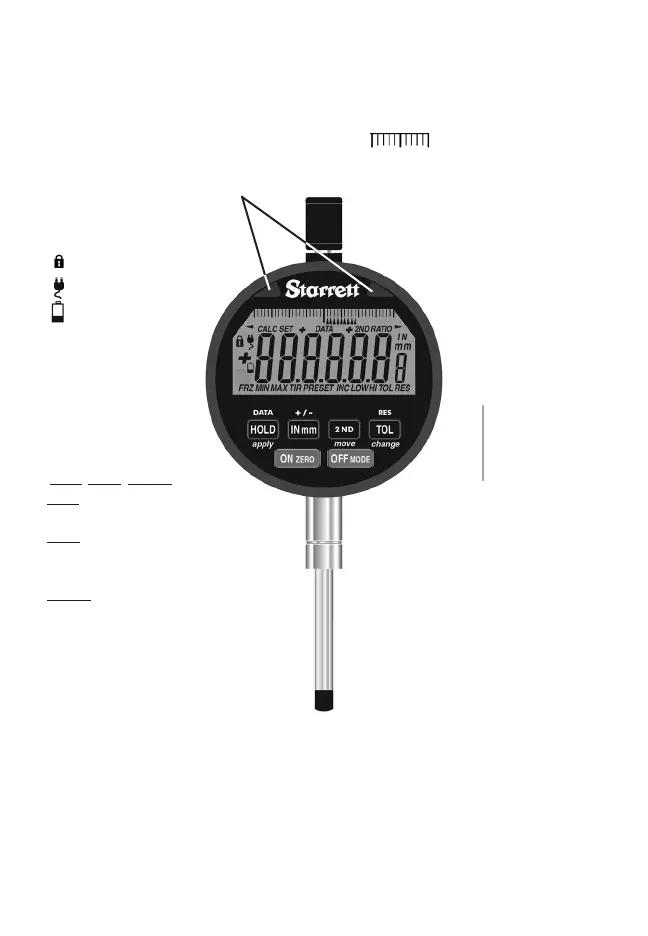

AD Icons & Program Functions
Analog Display
CALC Formula or Table Measurement
SET Programming or Setup
- + Travel Positive
+ - Travel Negative
DATA Send or Store Measurement
2ND Secondary Button Functions
RATIO Ratio Measurements
FRZ Holds Freezed Reading
MIN Holds Minimum Reading
MAX Holds Maximum Reading
TIR MODE for Total Indicator Reading
PRESET MODE for Absolute Origin other than
Zero
INC MODE for Incremental
(Standard MODE)
LOW TOL Lowest Tolerance Reading
HI TOL Highest Tolerance Reading
TOL Tolerance
RES Resolution
Programming Functions
(apply, move, change)
apply used to Enter Desired
Program in TOL, RATIO, PRESET, RES, DATA
move used to Move or Position
the Flashing Icon when Programming
in TOL, RATIO, PRESET, DATA
change used to Modify Value
that is Being Programmed.
Lock Functions & Features
Cable Connection
Battery Warning
Go / No Go LEDs
(Green & Red)
➥
➥
➥
➥
