Starrett LMXP-100 User Manual

LMXP-100 ENG
4
MANUAL DE INSTRUÇÕ ES

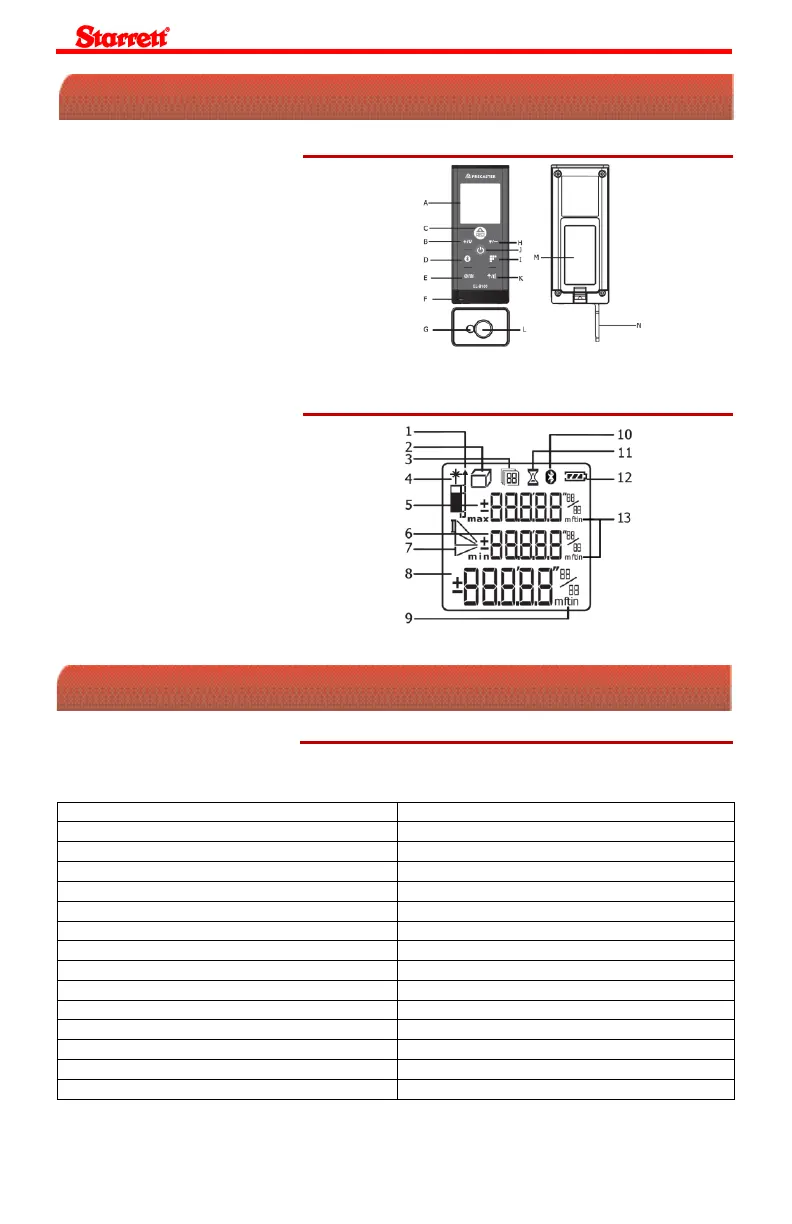

Components
A – Display
B –Addition / Unit Setting
C – Measurement button
D – Bluetooth Switch
E – Timer / Memory
F – Location for handle
G – Laser window (emitter)
H – Subtraction button / Display light
I – Functions - Area / Volume / Stack Out / Indirect Measurement
J –Power Button / Clear
K – Reference / Laser Pointer Mode
L – Laser window (receptor)
M – Battery Cover
N –Pin Tail Picture 1 - External components
Overview of the Display
1 – Reference Indicator
2 – Area / Volume Measurement
3 – Memory
4 – Laser Indicator
5 – Maximum display
6 – Minimum display
7 – Indirect measurements I, II and III
8 – Main Display
9 – Units
10 – Bluetooth indicator
11 – Timer
12 – Battery status
13 – Unit and secondary display
Picture 2 – Display
Notes: The Pictures presented here are illustrative.
Specifications
STARRETT BATTERY-POWERED TOOLS are handheld devices developed using the criteria of quality, safety, modernity
and technology to meet the needs of the user, in accordance with the applicable technical standards.
Model
LMXP-100
Protection against dust and water
IP54
Power Supply
2 AA batteries
Approximate lifespan of the batteries (Alkaline)
Up to 10,000 measurements
Measurement range*
0.05m 100m (2" to 330')
Resolution
0.001m
Accuracy**
± 1.5 mm (1.1/6")
Measurement response time***
0.5 sec
Laser Type
650nm, class 2, <1 mW
Beam size
25mm@30M
Operating temperature
-5°C to +40°C (23°F to 104°F)
Storage temperature
–20°C to +60°C (–4°F to 140°F)
Automatic laser Power-Off
30 Seconds
Automatic device Power-Off
180 seconds
Dimensions
114mm x 47mm x 32mm (4.1/2" x 1.7/8" x 1.1/4")
Table 2 - Technical specifications
*These values depend on the work environment. More reflective surfaces help in obtaining these values.
**In favorable conditions, an accuracy value of ±2mm can be obtained. Above 10 meters ± 0.25 mm should be added to each meter.
***Applicable in favorable conditions. In unfavorable environments, this time may be higher.
