Starrett LMXP-100 User Manual

LMXP-100 ENG
6

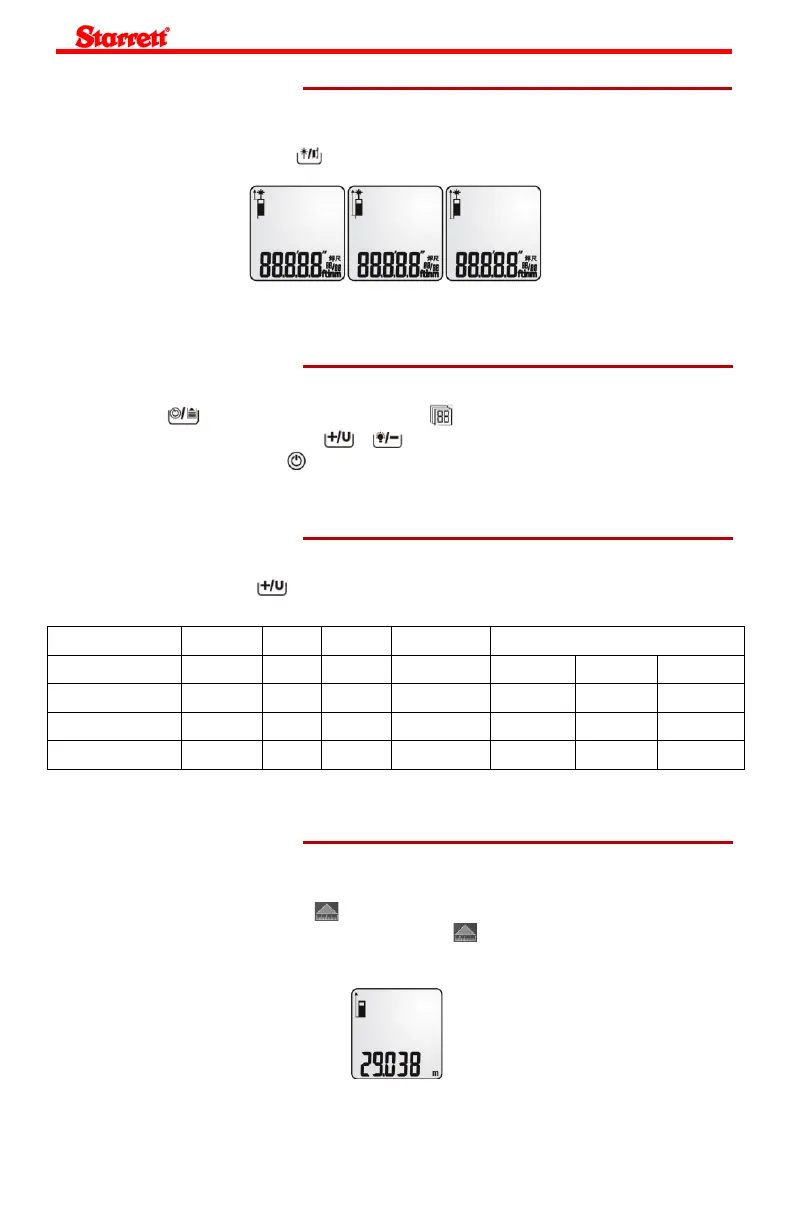

Measurement Reference
For measurements from corners, the STARRETT LMXP-100 allows the front, rear or extender measurement reference to
be selected as follows:
With the instrument turned on, press the button until selecting the desired reference.
FrontCenter Rear
Picture 5 – Measurement Reference
Memory
The STARRETT LMXP-100 memorizes the last 20 measurements made. To access them, proceed as follows:
1- Press the button and hold it down for 2 seconds, the symbol appears at the top of the display;
2- To view the desired memory, press the or buttons;
3- To leave this function, press the button.
Unit of Measure (Metric, Feet and Inches)
The STARRETT LMXP-100 has automatic conversions for various units (metric, feet and inches). To change this setting
follow the directions below; press the button and hold it down for 2 seconds, for access, switch between units of
measurement;
Units
Metric
system
Feet
Inches
Inches
Fractional inches
Presentation on
the display
0.000m
0.00ft
000.00in
0'00" 1/32 in
1/32 in
1/16 in
1/8 in
Length
m
ft
In
0'00" 1/32
1/32 In
1/16 In
1/8 In
Area
m²
ft²
ft²
ft²
ft²
ft²
ft²
Volume
m³
ft³
ft³
ft³
ft³
ft³
ft³
Table 3 - Units of measure
Simple Distance Measurement
For simple distance measurements, follow the steps below:
1- If the laser is not turned on, press the button to turn it on;
2- Aim it at the place of measurement, holding it still, and press the button again;
3- The result is shown on the display
Picture 6 - Simple distance measurement - indication on the display
