Use:
1- Press the button and hold it down for 2 seconds to enter the demarcation function. The instrument will beep with
each reading;
2- When you enter this function, the stake demarcation indicator arrows will appear in order to guide the positioning of
the instrument until the predefined dimension is reached;
3- When you approach the predefined instrument, the instrument will increase the frequency of the beep and with each
increment of the dimension;
4- To interrupt the measurement, press the button or the button;
5- If you want to return to the measurement, press the button;
6- To exit this function, press the button.
Area Measurement
To obtain the area of an environment, follow the steps below:
1- Press the button once to select the area function ;
2- After a few moments the laser will be turned on;
3- A horizontal line will start blinking ;
4- Aim the laser to get the first measurement and press the button;
5- Next a vertical line will start blinking ;
6- Aim the laser to get the second measurement and press the button;
7- The instrument will calculate the area and automatically show the results on the display.
Volume Measurement
To obtain the volume of an environment, follow the steps below:
1- Press the button twice to select the volume function ;
2- After a few moments the laser will be turned on;
3- A horizontal line will start blinking ;
4- Aim the laser to get the first measurement and press the button;
5- Next a vertical line will start blinking ;
6- Aim the laser to get the second measurement and press the button;
7- Then a line representing the depth measurement will start pulsing ;
1- Aim the laser to get the third measurement and press the button;
2- The instrument will perform the volume calculation and show the result automatically on the display.

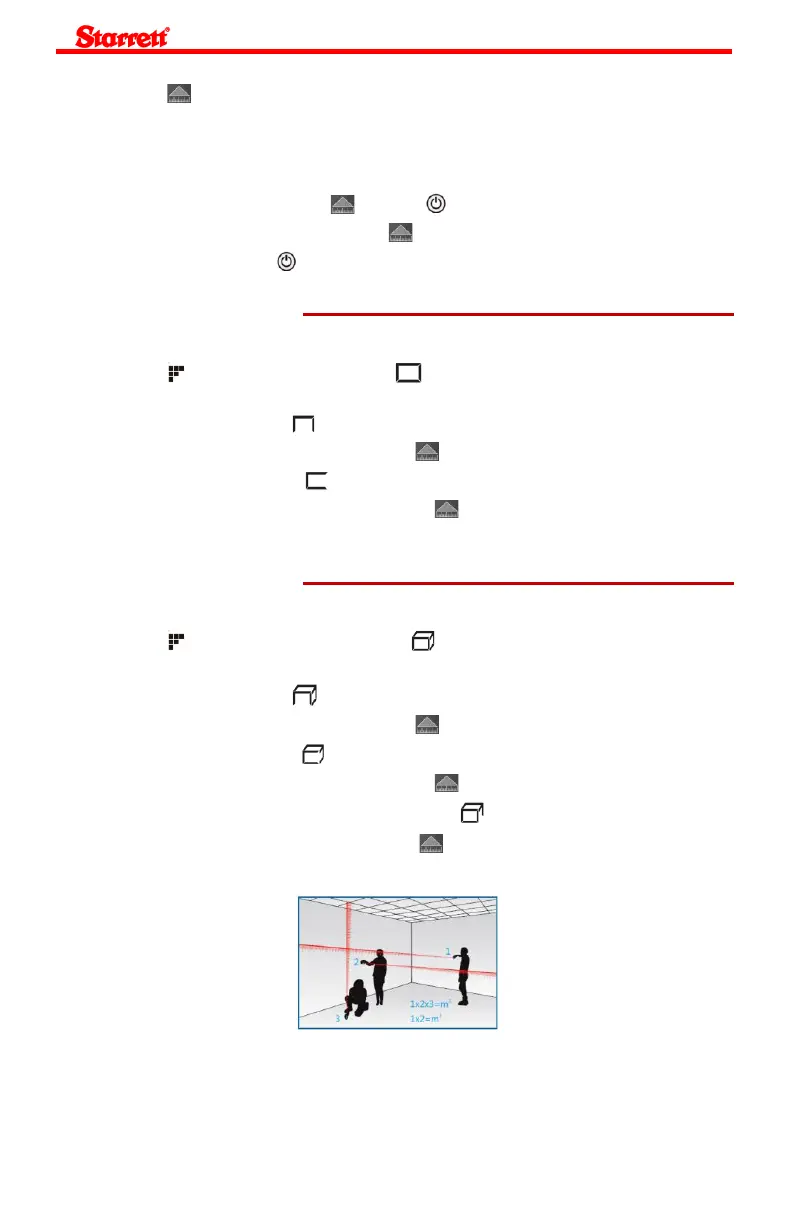

Picture 9 – Area and Volume Measurement
