Installation

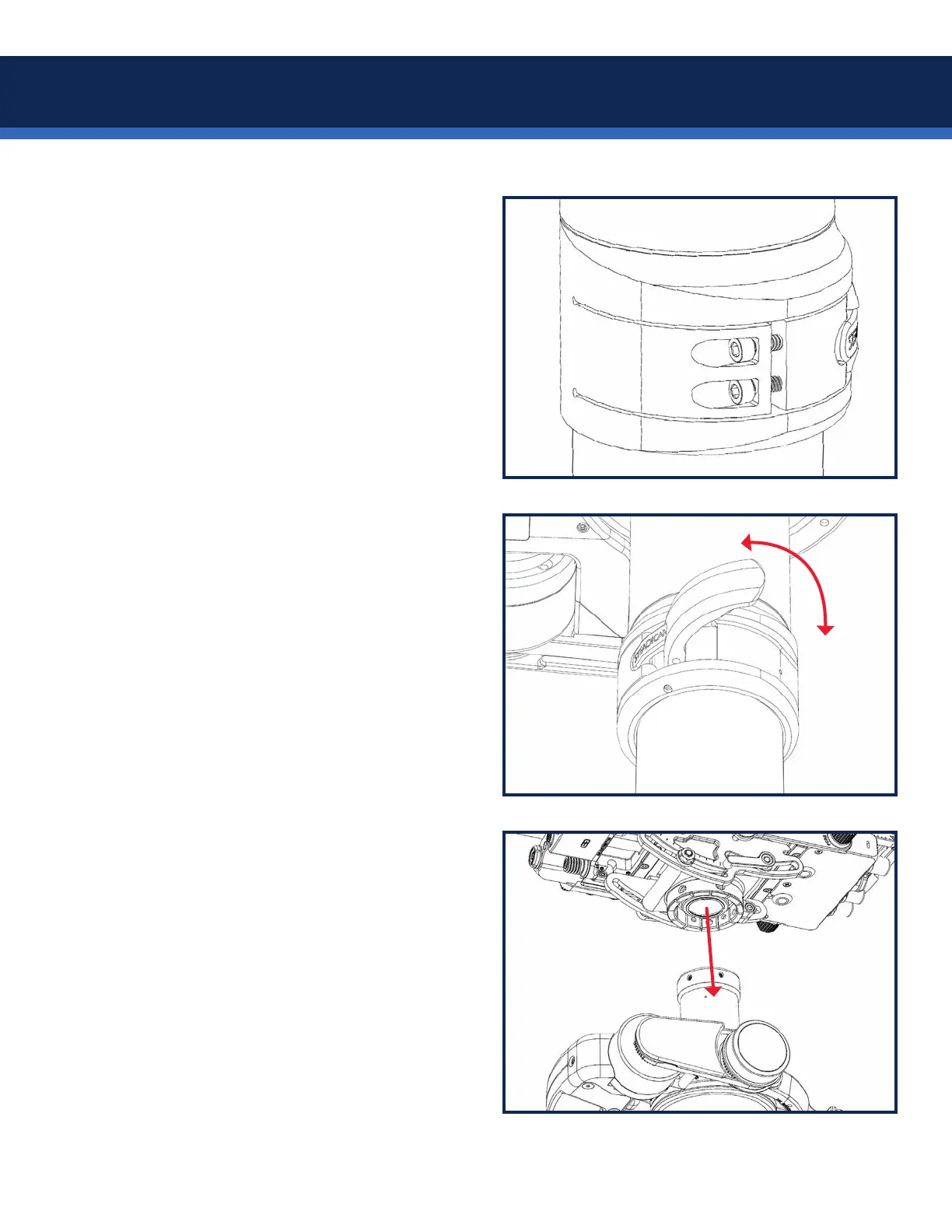

When necessary, the over-center lock on
the gimbal is adjusted with the clamp
lever CLOSED.
Use a 3/32” Allen wrench to turn each screw
an equal, tiny amount. You don’t want to
over-tighten these, so take your time.
Test the action of the clamp lever, and the
holding power of the clamp.
Repeat if necessary.
IMPORTANT: Do not over-tighten the gimbal
clamp! It is strong enough to distort carbon
ber post sections, but does not need to be
that tight to hold. Use minimum clamping force
while still holding securely.
When you’re satised with the t and
clamping performance of the M-2 gimbal,
reinstall the top stage.
Ensure all electronic and mechanical
connections are secure.
