4.3 PSU
The cameras are primarily powered and controlled by the PSU at the cage. In addition, the Orbit-3100,
Orbit-3300 and the Orbit-3500 can be controlled from the control system KB-6000, which is connected
to 230 VAC and conveys low current and control signals to the connected units. The same cameras can
also be connected to the MB-3000 portable control unit which have a built-in screen, joystick and 12 V
power to the camera. See chapter 9 for more specifications.
The PSU
2
also provide power to the Multiwinch.
Table 3 Specifications PSU
Specifications
Material
Stainless/aluminium/fibre glass
Possible camera connections
1, 2 or 4 – depending on which PSU
type
Nominal effect
60 W per camera
300 W when running the winch
Contacts
2 x multi contacts for sensors, surface
camera and antennas
IP degree stainless cabinets
IP67
IP degree fibre glass cabinets
IP66
2
Orbit-510/511, Orbit-515/516, Orbit-518/519, Orbit-578/579 and Orbit-520/521

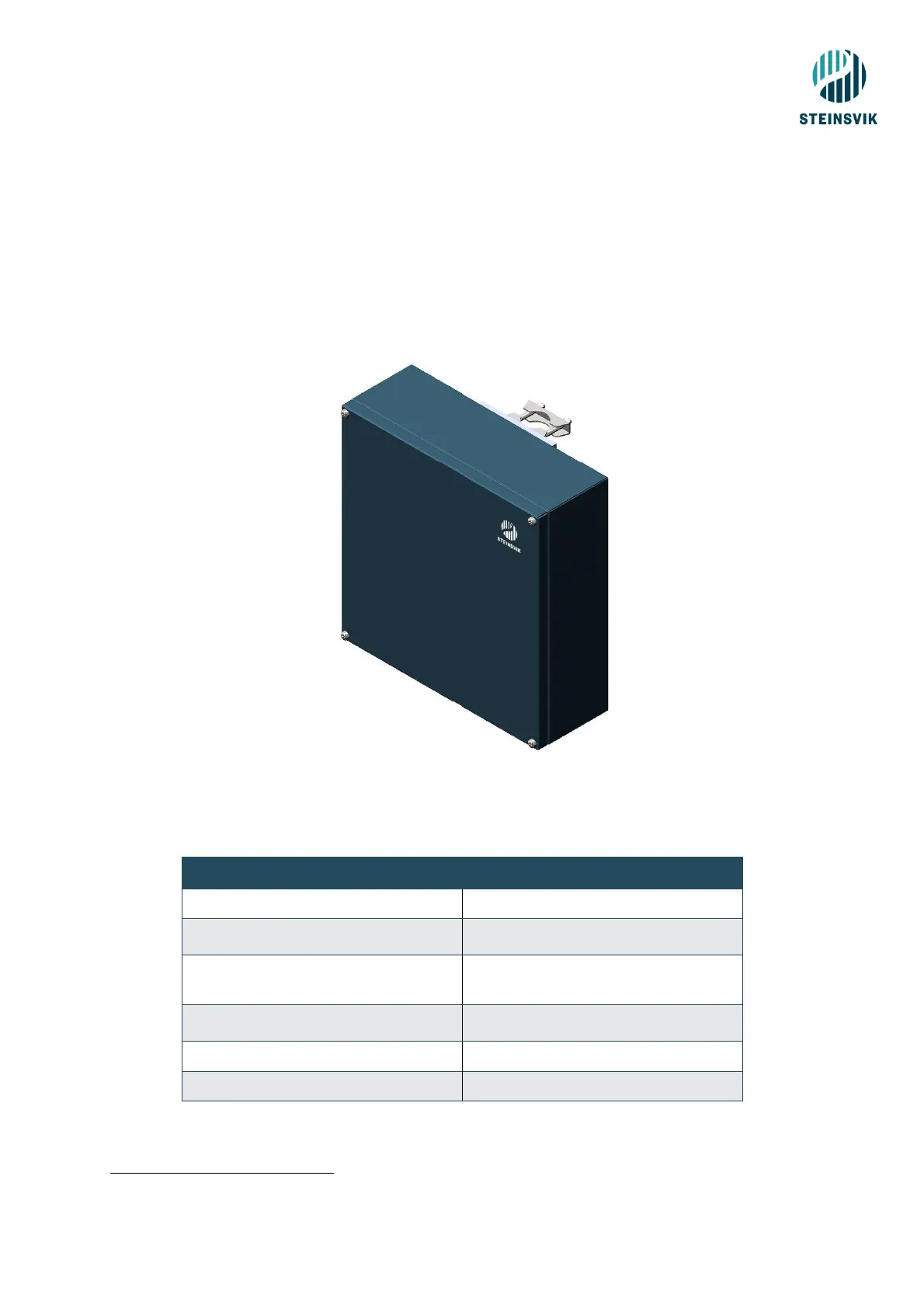

Figure 3 PSU
