15
4.7 Antenna and mast
The antenna sends data from the PSU to the barge. The sticker on the antenna must face the receiving
antenna placed on the barge. For more information regarding mounting and installation, see next
chapter.
For wireless facilities, the antenna is attached to the aluminium pipe on arrival. For fibre facilities the
same aluminium pipe is used for mast to attach the fibre equipment.
Table 7 Specifications Antenna and Mast
Specifications
Antenna
Mast
Material
POM-C (white)
Aluminium
Dimensions (WxHxD)
98 x 325 x 98 mm
1500 x 40 mm
Temperature range
-20°C - +70°C
N/A
Power supply
24 V, 0,5 A (12 W),
max 5,5 W
N/A
Humidity during
operation
5-95%
condensation
N/A
Maximum power
consumption
5 W
N/A
Weight (kg)
1,63

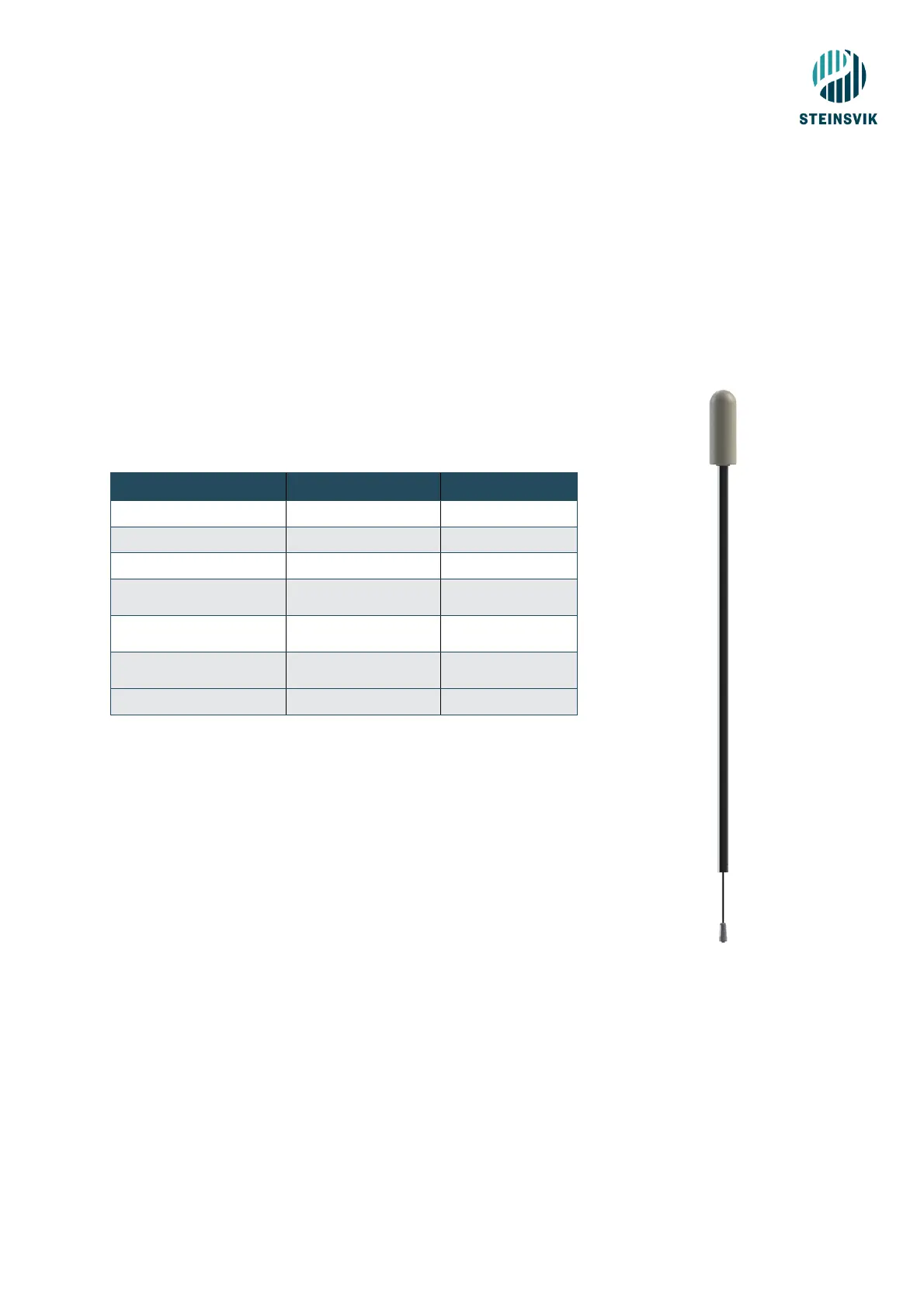

Figure 8 Antenna and mast
