When reinstalling the equipment, (new generation) it is important to ensure that the installation
and equipment are in accordance with specifications provided by Steinsvik AS. The use will
not cause any contamination of fish.

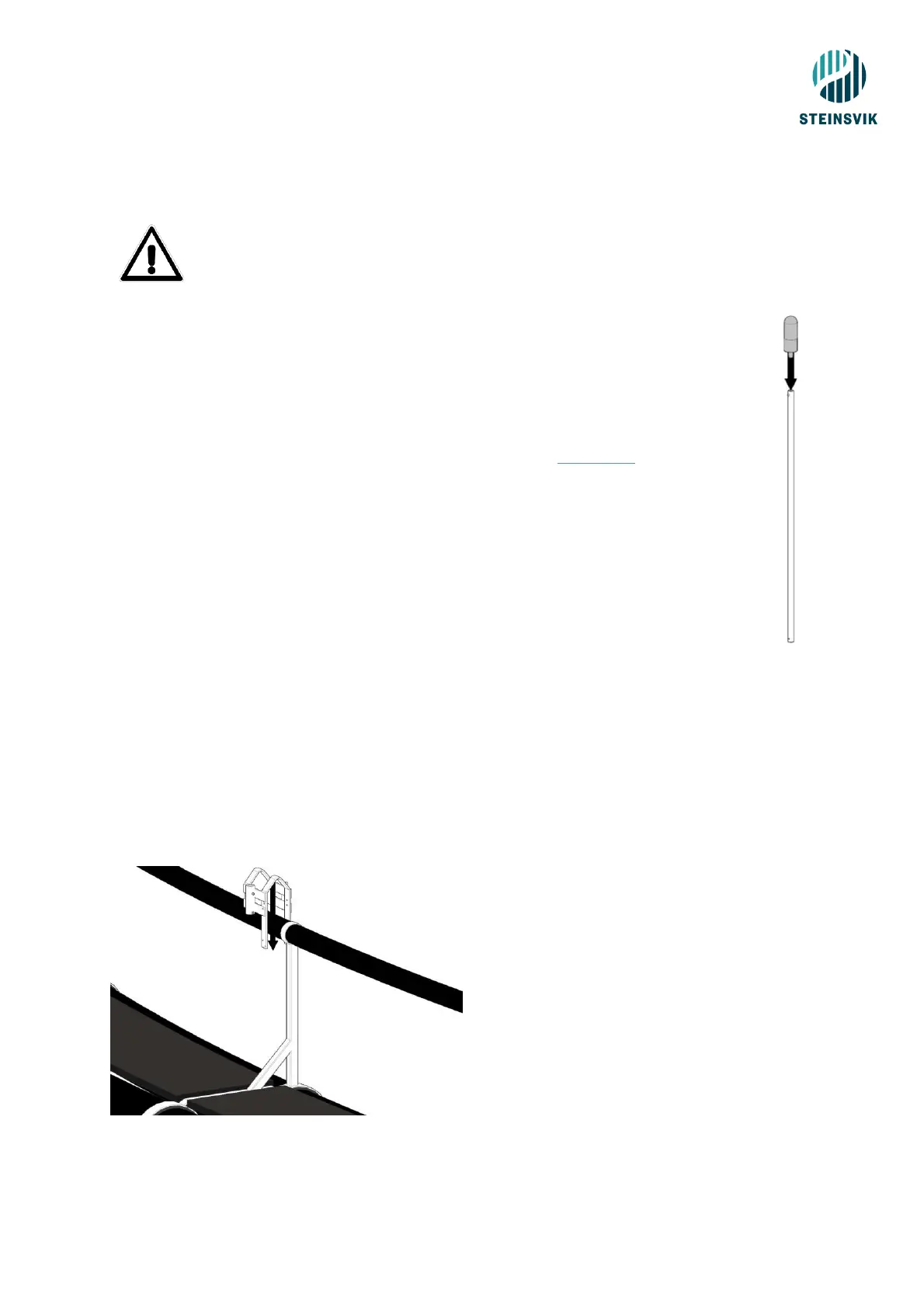

5.1 Antenna
− Connect the antenna to the mast. The cable from the antenna is routed through the
mast.
− Attach the mast to the Orbit bracket for ring, as shown in chapter 5.3.
− The cable from the antenna is then connected to the “Multi contact” on the PSU.
Note: The antenna is marked with a TX-number. Connect the antenna to the PSU with the
same number. Example: connect the antenna marked “TX: 01” to the PSU marked “PSU:
01”. The sticker on the antenna must be faced towards the barge.
Tip: Install the antenna on the barge before you install the antenna on the cage to ensure that
the antenna is pointing in the right direction.
5.2 Orbit Bracket for ring
Find a suitable place to place the Orbit-bracket for ring:
• Place it so that the winch rope moves either with or against the current.
• Position it so that it is not placed on a post where the chains to the bottom ring emerge.
• Make sure it does not conflict with ropes for the dead fish net/lift-up.
• Position it so that it is not in the way for any live-hauling boats and other vessels that may
damage the equipment.
5.2.1 Mounting Orbit-Bracket for ring
