5.2.2 Mounting Orbit-Bracket for ring with V-clamp

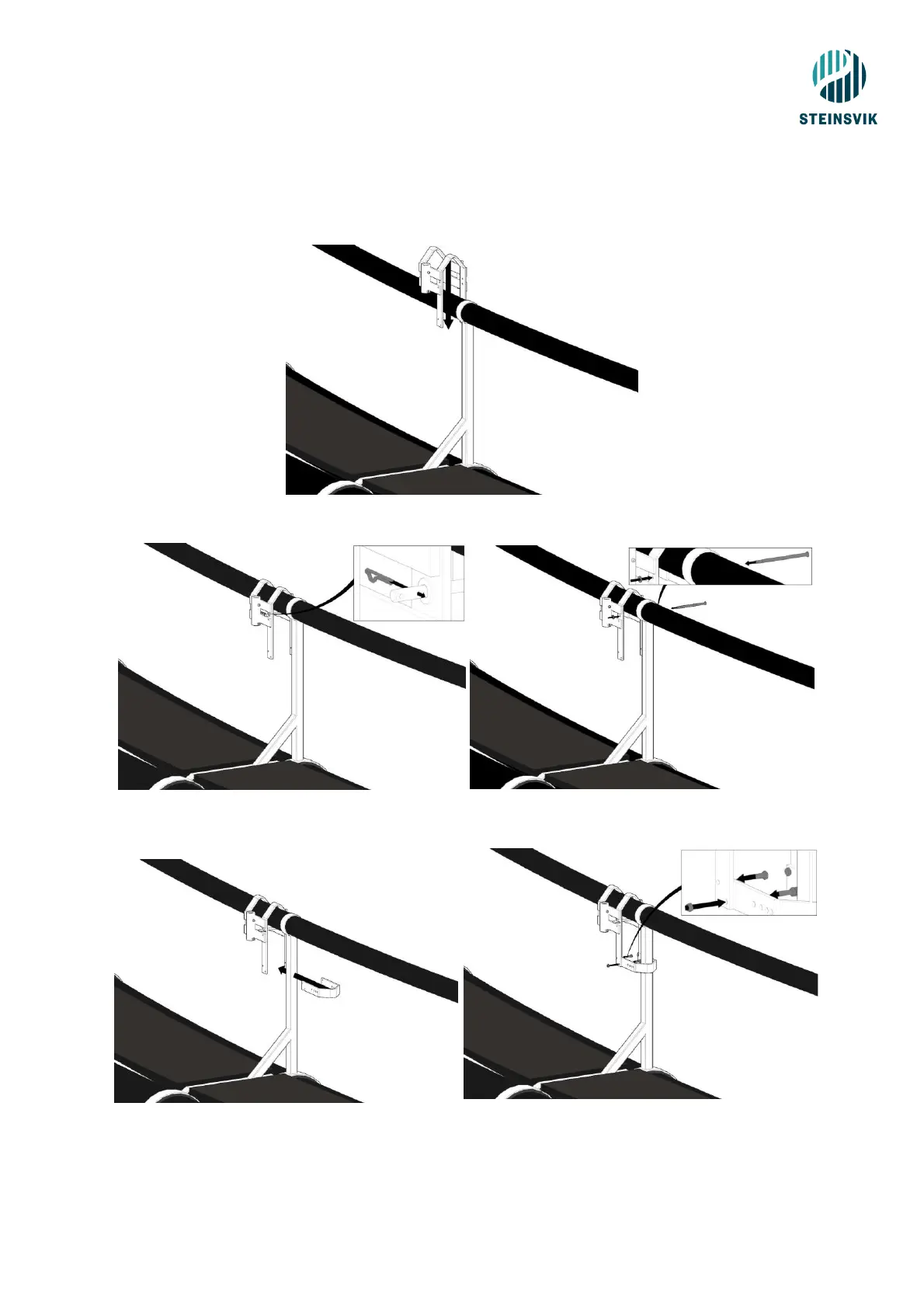

Place the bracket over the top ring of the cage.
Insert the supplied bolt, washer and locking pin so that the bracket cannot fall off.
The mounting bracket goes around the support rail (picture). Fasten this with a M10x20 bolts in the
top hole (on both sides). In the bottom hole (on both sides) the M10x30 bolts and M10 nuts are
fastened.
NOTE: The bolts are fastened from the inside so that they point away from the net/cage net.
