25

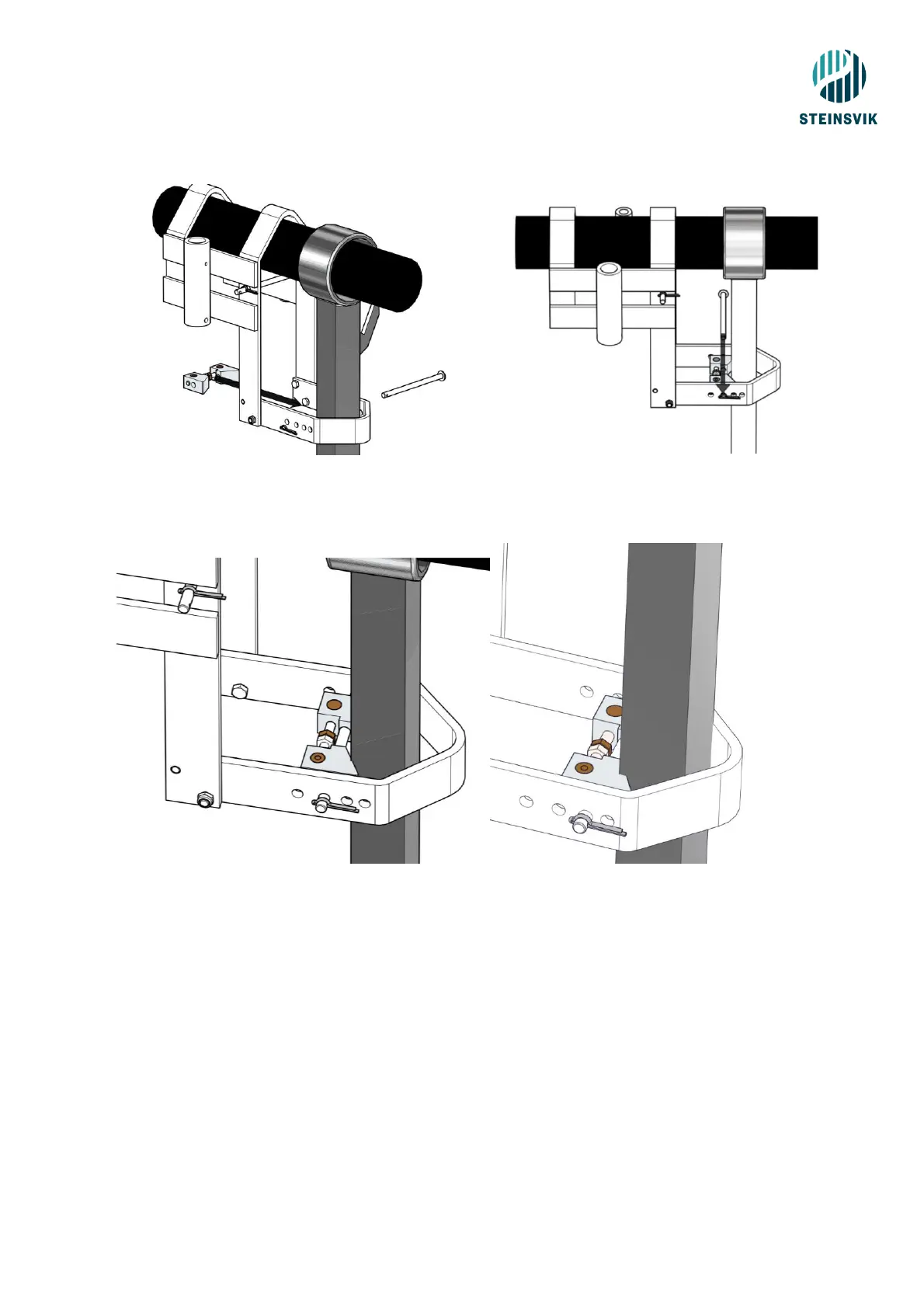

Bring the clamp up to the support rail. Fasten it with the supplied locking bolt, washer and locking pin
through the bracket and clamp (see picture). Depending on the size of the support rail, the locking
bolt is placed in the hole which fits the best on the bracket
Adjust the size of the clamp so that it holds the Orbit-bracket in place by turning the nut on the right
side on the clamp (the white nut in the illustration above). Fasten the clamp by tighten the locking nut
(bronze coloured nut in the illustration to the right above).
