5.5 Winch and winch rope

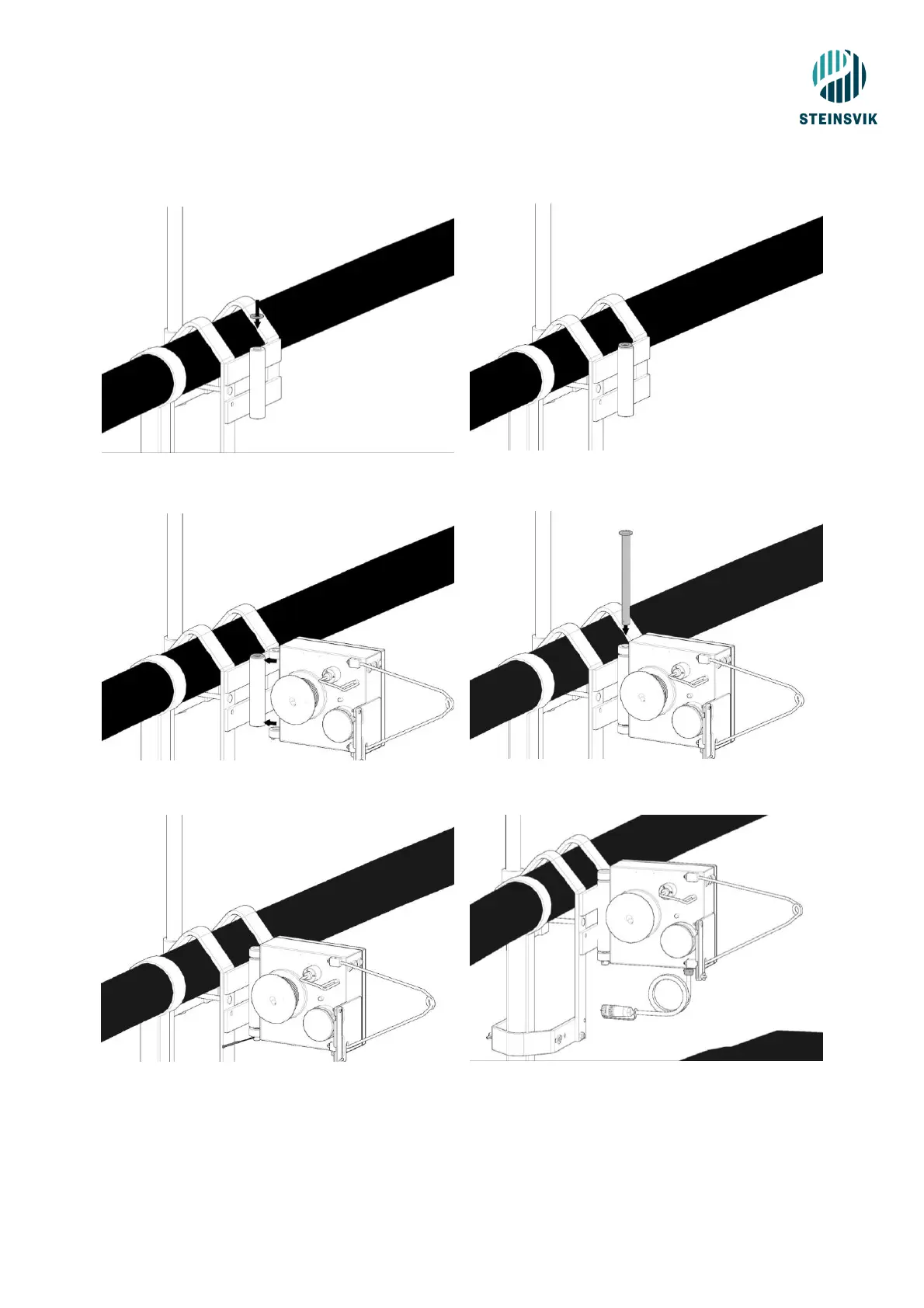

Place the washer for the winch bolt on top of the attachement point for the winch on the Orbit bracket for
ring.
Slide the winch over the washer.
Attach the bolt. The winch should be able to rotate
to both sides.
Attach the locking pin at the bottom of the bolt to
prevent the winch from falling off the bracket.
Attach the winch cable. One end is connected under
the winch, while the other is connected to the
“Winch” contact in the PSU. Make sure that the net
is not in a position for the winch cable to hook onto
and break. The winch cable should preferably be
secured around the top row before it is fastened at
both ends.
