5.3 Mast/Alu pipe
5.3.1 Wireless installations
Fasten the aluminium pipe into the 40 mm pipe on
the Orbit-bracket for ring.
The mast is supposed to rest on the bolt at the
bottom of the 40 mm pipe. Secure it with a set
screw (DIN 912 M8x16).

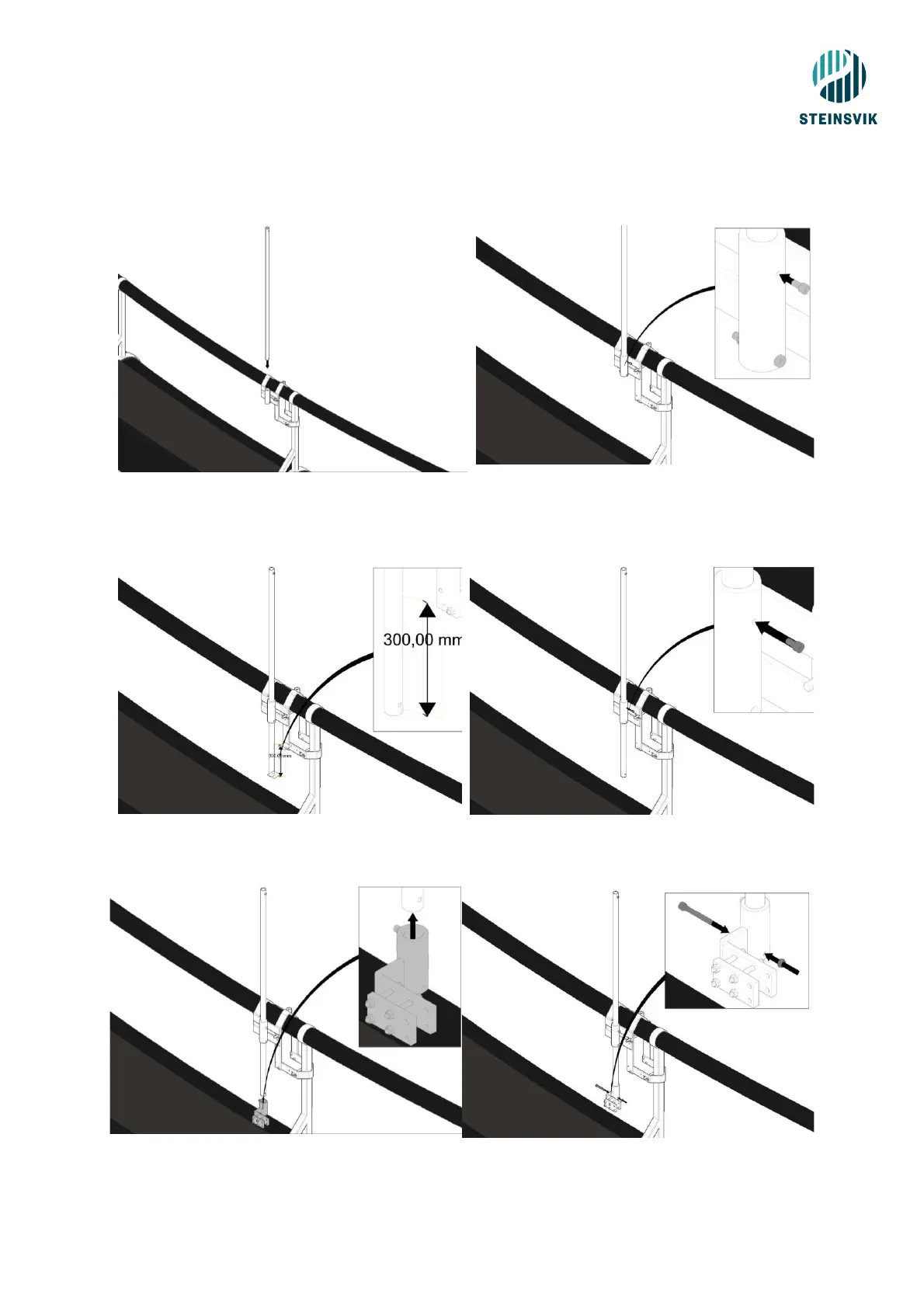

5.3.2 Fibre installations
Fasten the aluminium pipe into the 40 mm pipe
on the bracket. There must be at least 300 mm of
pipe under the bracket.
Secure the pipe with a set screw (DIN 912
M8x16) on the bracket.
Place the strain relief at the bottom of the pipe.
Fasten the strain relief with M10x80 (DIN 912)
bolt and M10 nut (through the hole on the strain
relief and into the hole at the bottom of the mast).
