23

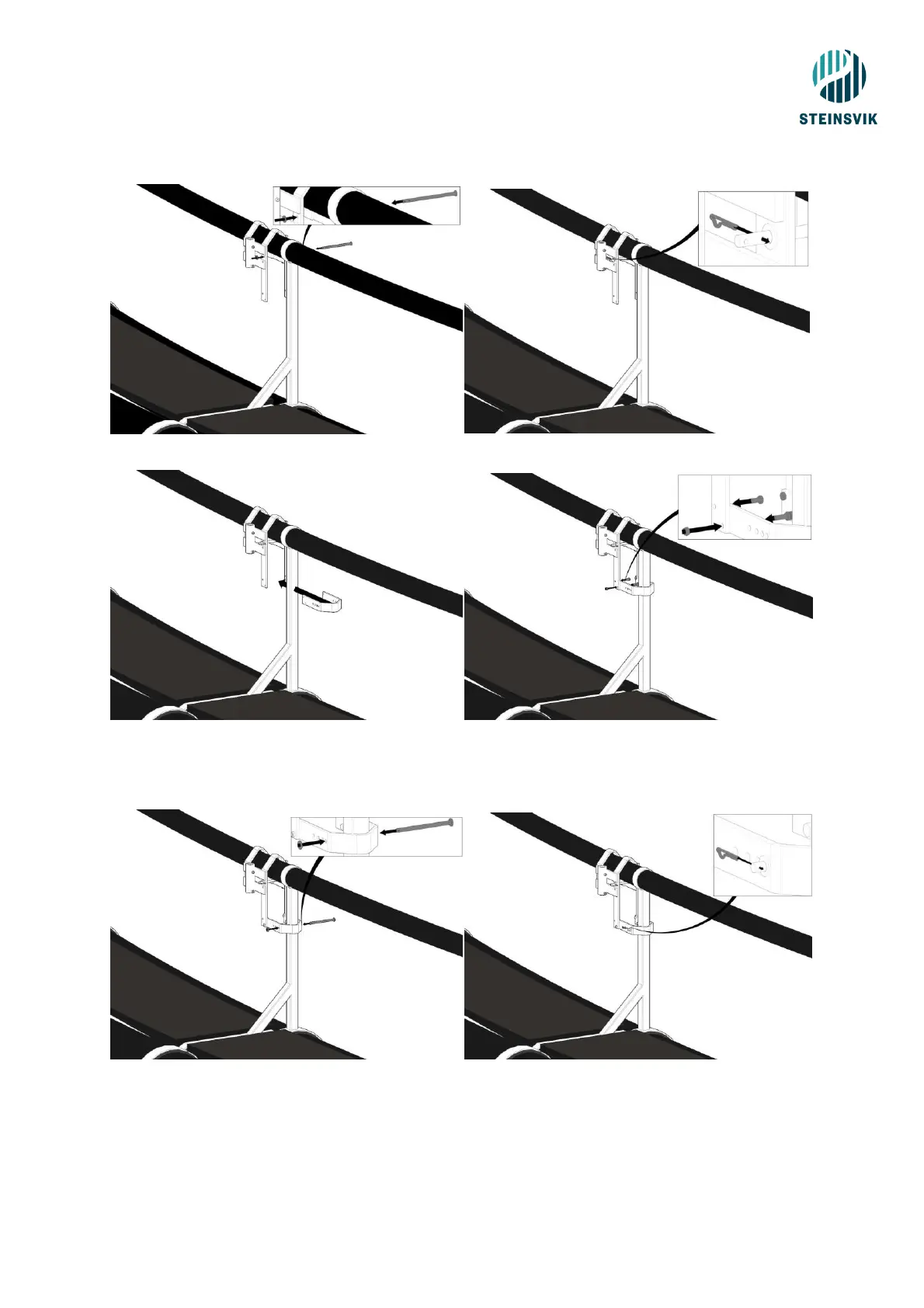

Insert the supplied bolt, washer and locking pin so that the bracket cannot fall off.
The mounting bracket goes around the support rail (picture). Fasten this with a M10x20 bolts in the
top hole (on both sides). In the bottom hole (on both sides) the M10x30 bolts and M10 nuts are
fastened.
NOTE: The bolts are fastened from the inside so that they point away from the net/cage net.
Fasten the locking bolt (196mm) in the mounting bracket. This prevents the bracket from moving
sideways on the cage ring.
Drill a new hole if the support ring is to wide.
