CLRS Series RS485 Closed Loop Stepper Drive User Manual
2.2 Dimensions
Unit: mm (1inch=25.4mm)
CL57RS
CL86RS

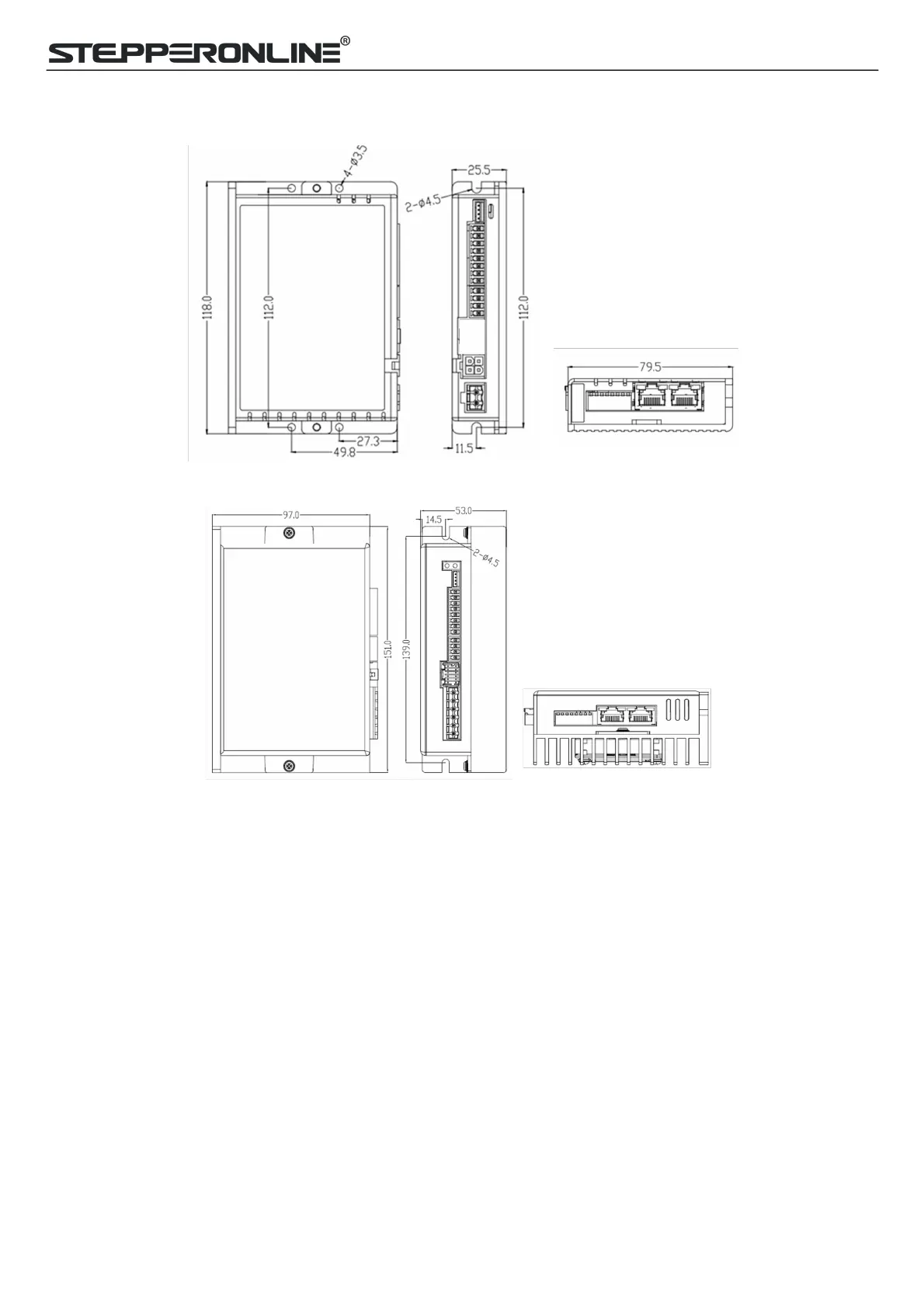

Figure 2.1: CLRS series mechanical drawing
2.3 Installation Direction and Space

The mounting of drive, wiring and motor should be under the regulations of EN 61800-5-1.

Incorrect installation may result in a drive malfunction or premature failure of the drive and /or motor. Please
follow the guidelines in this manual when installing

The drive should be mounted perpendicular to the wall or in the control panel.

In order to ensure the drive is well ventilated, ensure that the all ventilation holes are not obstructed and
sufficient free space is given to the drive, and a cooling fan is mounted in the control panel.

Please ensure grounding wires are securely connected.
