Full Digital Stepper Drive DM542S



Automatic detection, flexible selection of pulse edge count mode;



Green light means running while red light means protection or off line

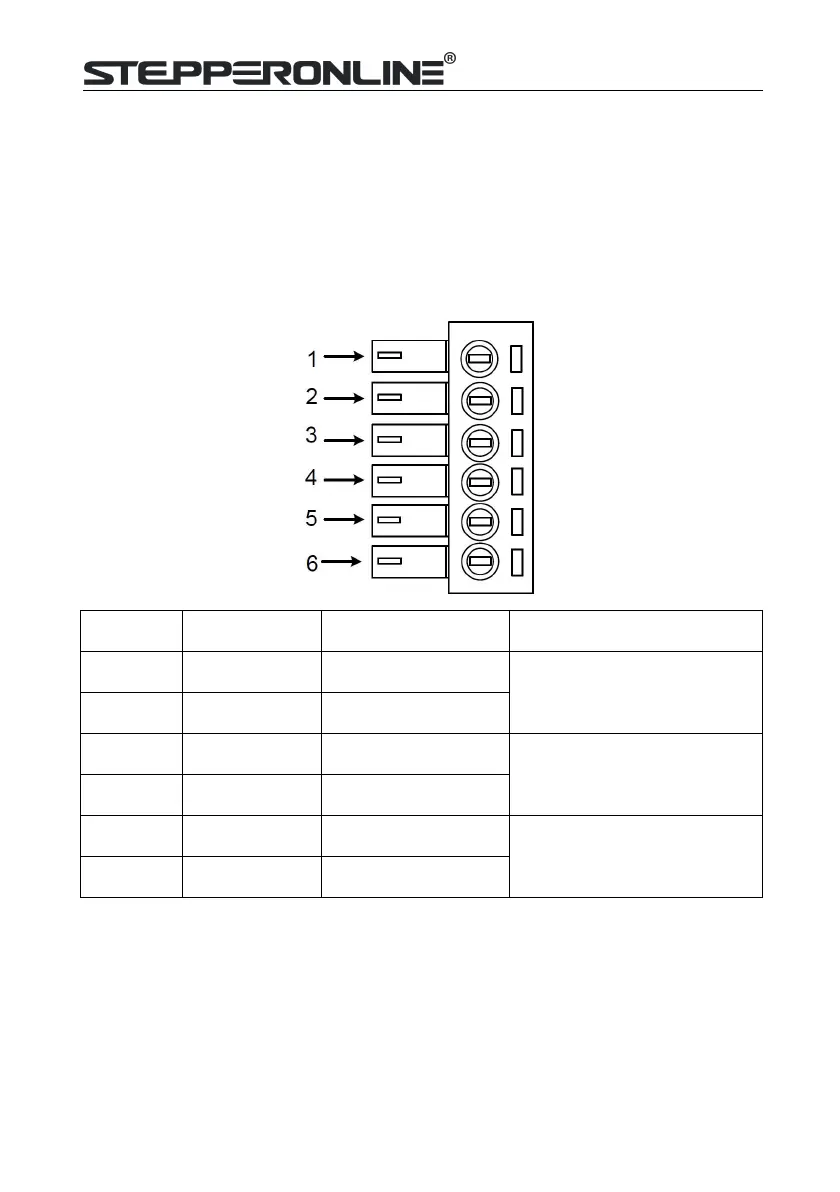

3. Ports Introduction

3.1 Control Signal Input Ports

Port

Symbol

Name

Remark

ENA-

Pulse signal +

Compatible with

5V ~ 24V

ENA+

Pulse signal -

DIR-

Direction signal+

Compatible with

5V ~ 24V

DIR+

Direction signal-

PLS-

Enable signal +

Compatible with

5V ~ 24V

PLS+

Enable signal-
