StepperOnline DM542S User Manual

Full Digital Stepper Drive DM542S
- 3 -

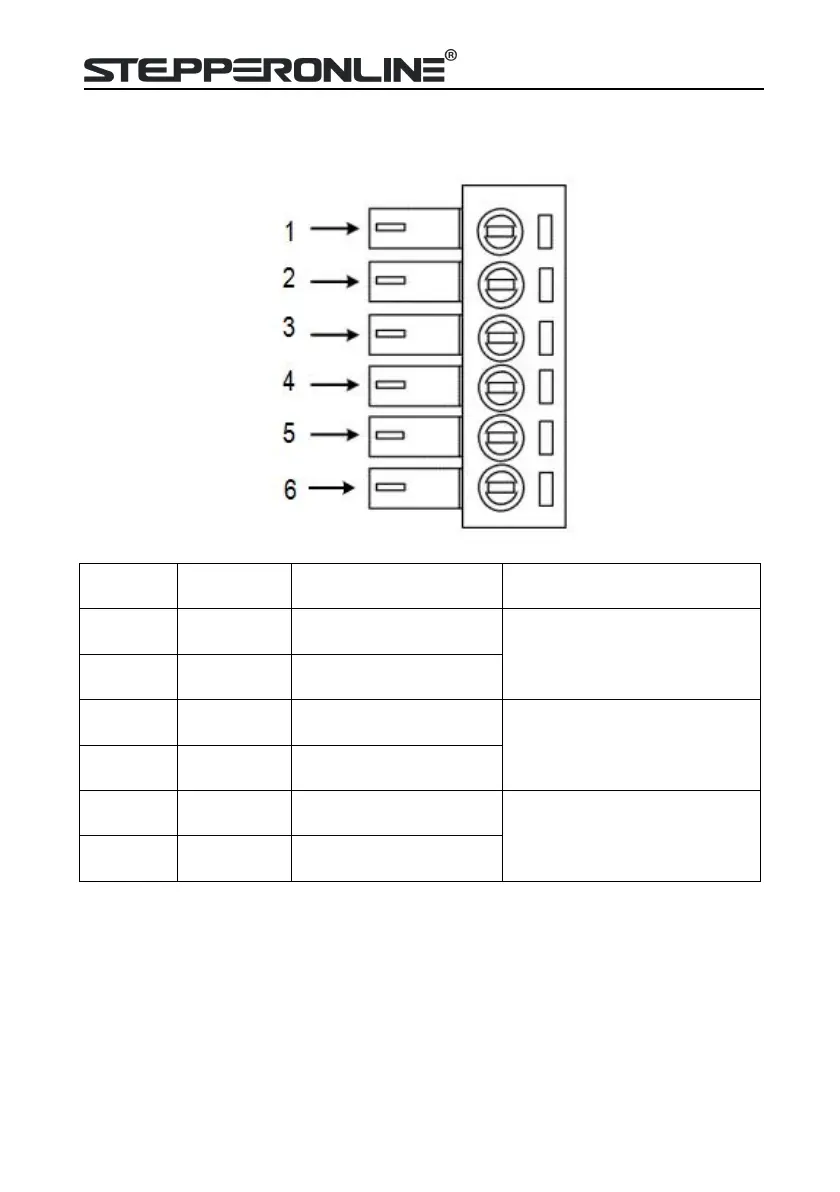

3.2 Power Interface Ports
Port
Symbol
Name
Remark
1
B-
Phase B-
Motor Phase B
2
B+
Phase B+
3
A-
Phase A-
Motor Phase A
4
A+
Phase A+
5
V
Input Power +
DC24 ~ 48V
6
GND
Input Power -

StepperOnline DM542S Specifications

General

Brand	StepperOnline
Model	DM542S
Category	Control Unit
Language	English
