STIHL 019 T 10

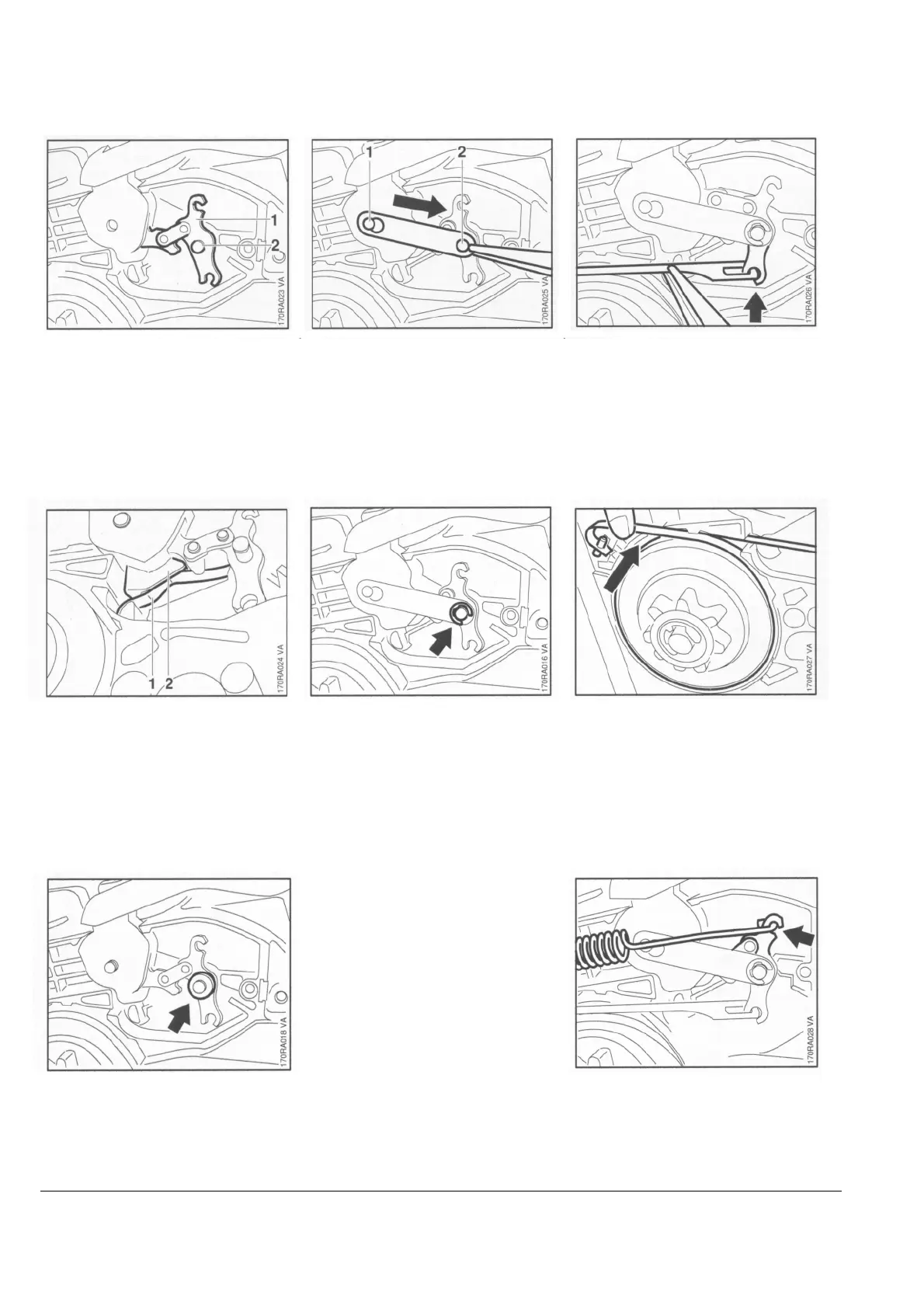

• Fit the washer.
• Hook the brake spring onto the bell
crank.
• Fit the brake band and press it
into the engine housing.
• Secure strap with E-clip.
- Coat brake band with chain oil
(STIHL Bioplus), see 11.2, to
protect it from corrosion an
cushion "snatching" during the
first few brake applications.
• Check that flat spring (1)
is properly located on face (2)
of bearing boss.
• Attach brake band to the bell
crank.
• Place strap on pivot pin (1) and
pull it in direction of arrow until it
engages the groove.
• Then push it over the pivot pin
(2).
• Position bell crank (1) against
pivot pin (2).
- Push hand guard and bell crank fully
onto the pivot pins.
