STIHL 019 T
43

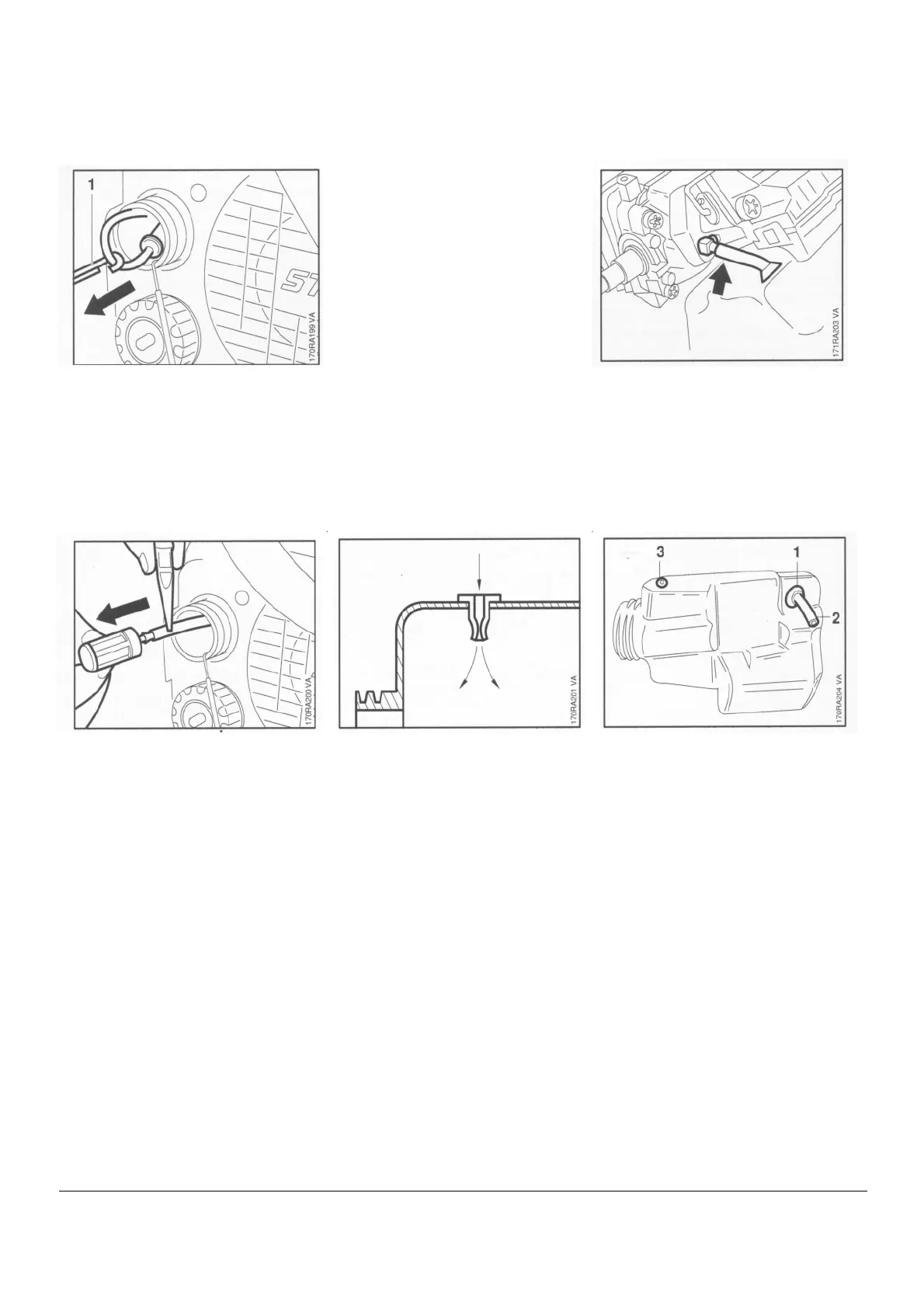

• Pull the pickup body off the fuel
hose.
- Fit a new pickup body.
Reassemble in the reverse sequence.
- Position pickup body so that it faces
forward in the front corner
(bar side).
Equalization of pressure from the
outside inwards takes place via the
valve.
Note: Valve opening must be clear and
clean.
- Install the engine - see 4.2.
- Pull the pickup body off the fuel
hose.
• Pry the grommet (1) out of the fuel
tank.
• Pull out the fuel hose (2).
• Pull out the valve (3).
Install in the reverse sequence.
- Remove the engine - see 4.1.
• Pull fuel hose off carburetor elbow
connector.
- Remove the fuel tank.
10.4 Fuel Tank/Fuel Hose
10.3 Tank Vent
Correct operation of the carburetor is
only possible if atmospheric pressure
and internal fuel tank pressure are
equal at all times. This is ensured by
the tank vent.
Important: In the event of trouble with
the carburetor or the fuel supply
system, always check and clean the
tank vent.
- Remove the engine - see 4.1.
Pickup bod
y
• Use the assembly hook (1)
5910 893 8800 to pull the pickup
body out of the fuel tank.
Note: Do not stretch the fuel hose
while removing it.
