8.3 Handle Moldin
g
8.4 Handleba
r
8.5 Top Handle

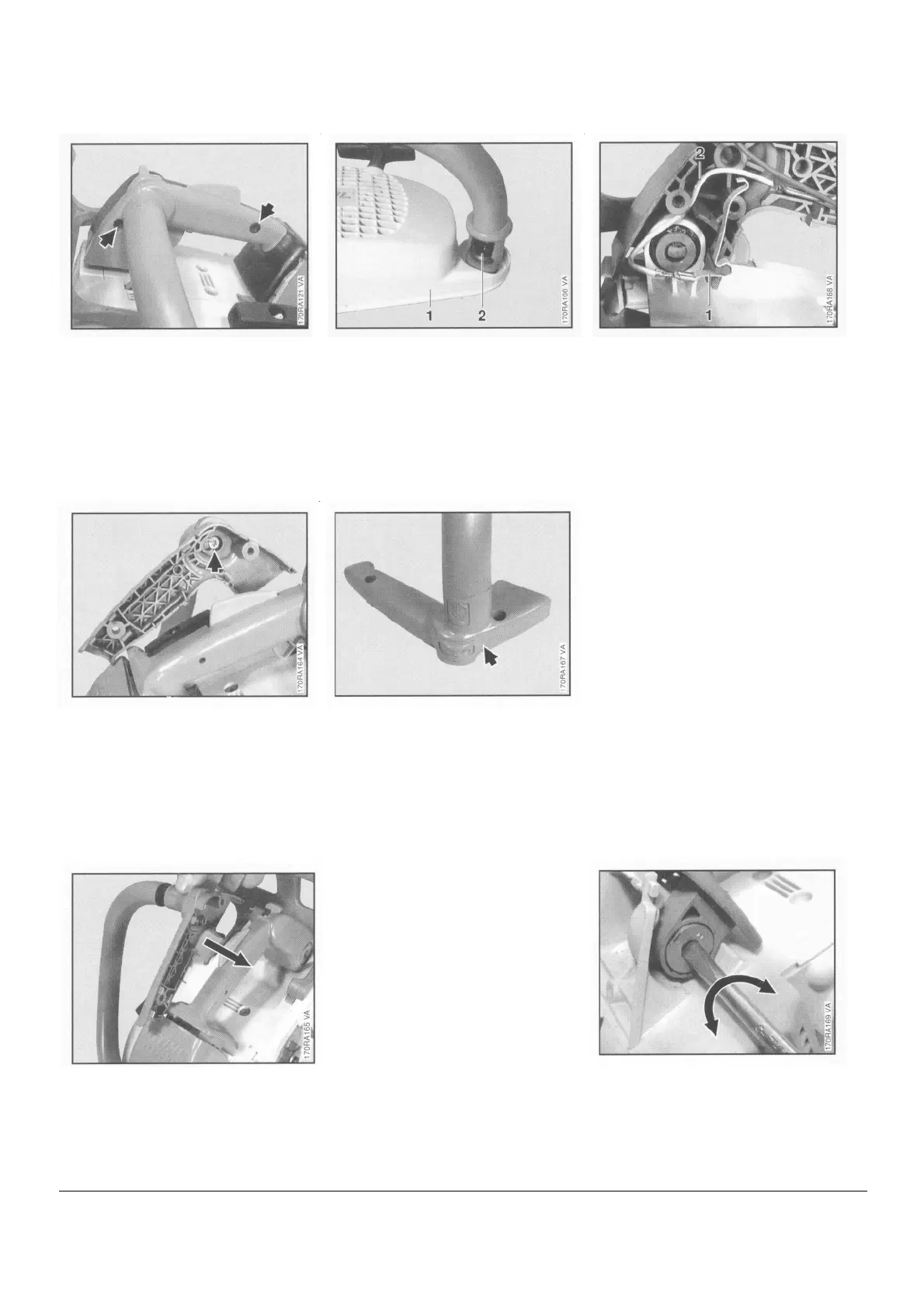

• Take the screws out of the handle
molding.
- Carefully pull the handle molding off
the top handle.
- Remove the fan housing - see 6.2.
• Remove the fan housing (1) and
annular buffer (2) - see 7.
- Remove the switch shaft - see 8.2.
• Pull the contact spring (1) off the lug.
• Pull the ground wire (2) out of the
retainer.
- Take the throttle cable out of the
retainer.
- Pull the protective tube with ground
and short circuit wires out of the
retainers.
Note: Carry out the four following
operations on the front and rear
annular buffer.
• Remove the handle molding
-see 8.3.
Reassemble in the reverse
sequence.
• Take out the screw.
• Rotate plug (with key) approx. 90
degrees.
• Pull the handle molding off the
handlebar.
Reassemble in the reverse
sequence.
