STIHL 019 T 12

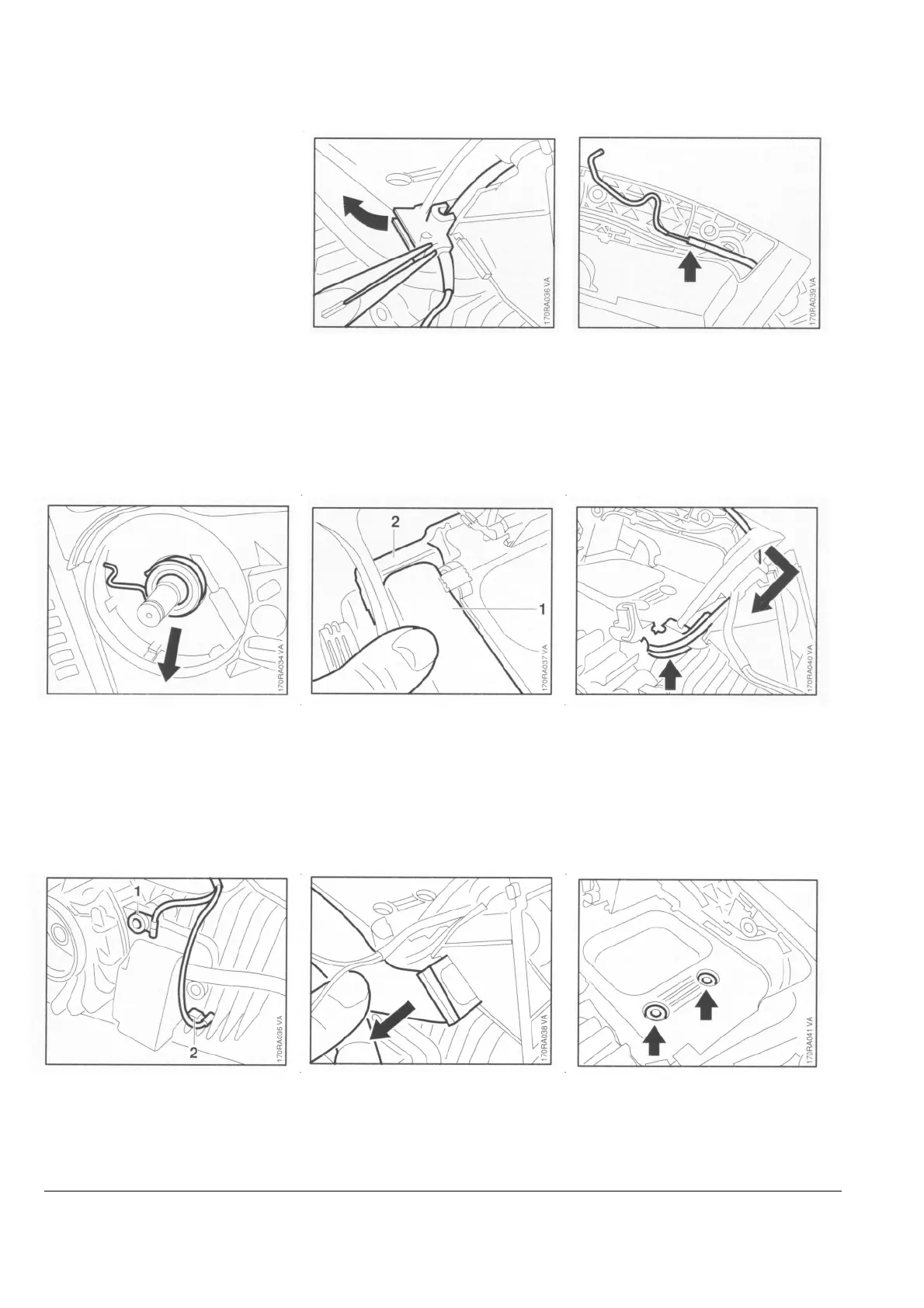

• Take out the upper screw (1).
• Disconnect the short circuit wire (2).
• Pull intake pipe with grommet out
of engine housing.
- Remove the grommet.
• Take out screws from top of
engine.
• Remove throttle cable from
grommet and pull it downwards
and out of the handle.
• Pull intake pipe (1) out of the
intake casing (2).
• Pull off the worm with drive spring.
- Remove throttle trigger - see 8.1.
4. ENGINE
4.1 Disassembly
Always check and, if necessary, repair
the fuel system, carburetor, air filter
and ignition system before looking for
faults on the engine.
Troubleshooting chart - see "Standard
Repairs, Troubleshooting" handbook.
- Remove the clutch - see 3.2.
- Take the locking strip out of the
cylinder.
• Open the grommet. • Take throttle cable out of retainer.
