Stihl 019 T - master control handle system; interlock lever throttle trigger; switch shaft

STIHL 019 T
36

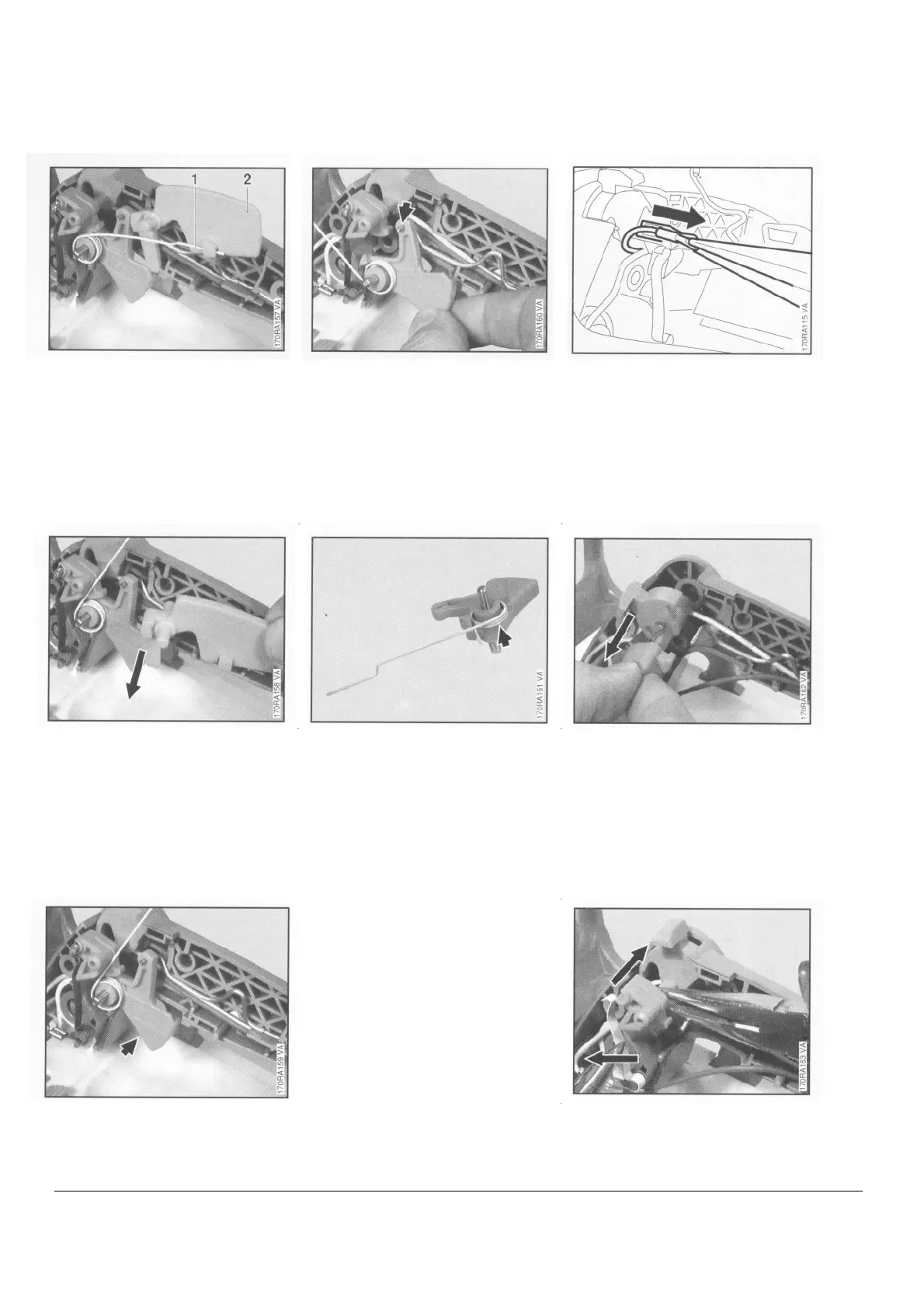

• Remove the interlock lever.
• Take the torsion spring off the
throttle trigger.
Reassemble in the reverse
sequence.
• Pull out the switch shaft.
Reassemble in the reverse
sequence.
• It is necessary to push the
contact spring slightly forward to
install the switch shaft.
• Remove the throttle trigger.
- Remove the throttle trigger
- see 8.1.
• Pull contact sleeve of short
circuit wire out of switch shaft.
• Pull the throttle cable out of
throttle trigger.
• Remove the fan housing - see 6.2.
• Take the torsion spring (1) off the
interlock lever (2).
8. MASTER CONTROL/HANDLE SYSTEM
8.1 Interlock Lever/Throttle Trigger
8.2 Switch Shaft
