17BT 360
English

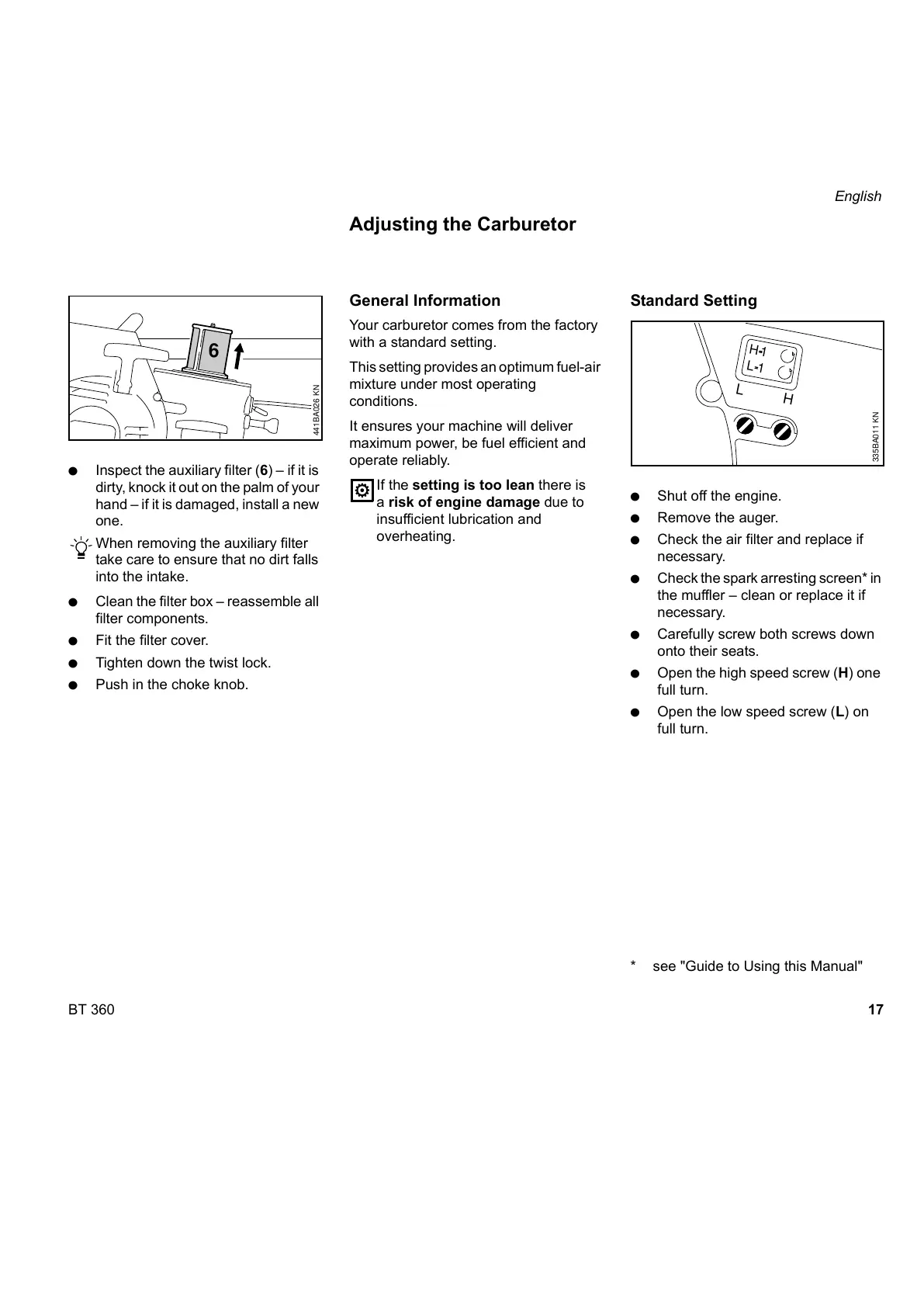

: Inspect the auxiliary filter (6) – if it is
dirty, knock it out on the palm of your
hand – if it is damaged, install a new
one.
When removing the auxiliary filter
take care to ensure that no dirt falls
into the intake.
: Clean the filter box – reassemble all
filter components.
: Fit the filter cover.
: Tighten down the twist lock.
: Push in the choke knob.
General Information
Your carburetor comes from the factory
with a standard setting.
This setting provides an optimum fuel-air
mixture under most operating
conditions.
It ensures your machine will deliver
maximum power, be fuel efficient and
operate reliably.
If the setting is too lean there is
a risk of engine damage due to
insufficient lubrication and
overheating.
Standard Setting
: Shut off the engine.
: Remove the auger.
: Check the air filter and replace if
necessary.
: Check the spark arresting screen* in
the muffler – clean or replace it if
necessary.
: Carefully screw both screws down
onto their seats.
: Open the high speed screw (H) one
full turn.
: Open the low speed screw (L) on
full turn.
* see "Guide to Using this Manual"
441BA026 KN
6
Adjusting the Carburetor
335BA011 KN
H
H
L 1
1
L
