BT 360

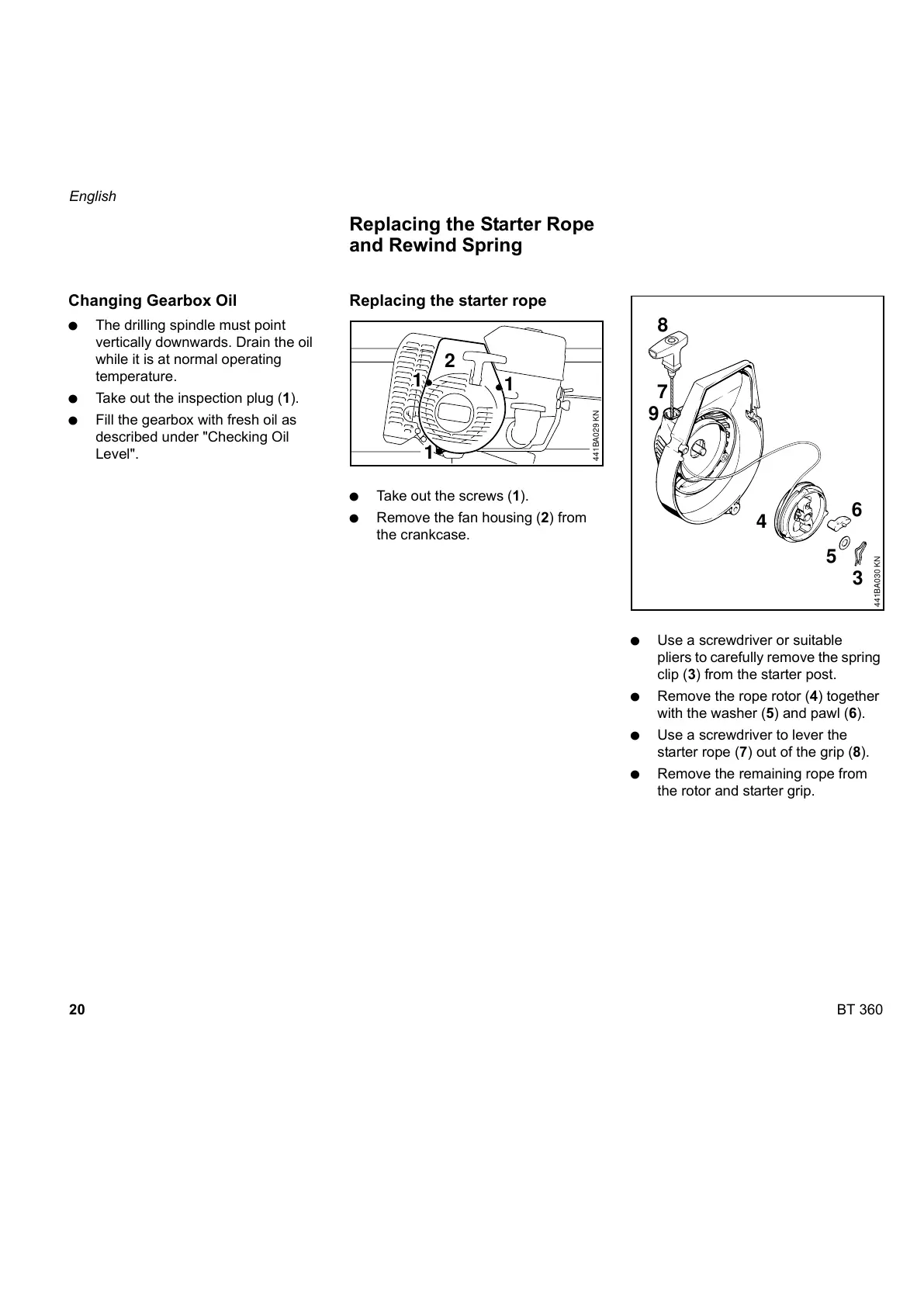

Changing Gearbox Oil
: The drilling spindle must point
vertically downwards. Drain the oil
while it is at normal operating
temperature.
: Take out the inspection plug (1).
: Fill the gearbox with fresh oil as
described under "Checking Oil
Level".
Replacing the starter rope
: Take out the screws (1).
: Remove the fan housing (2) from
the crankcase.
: Use a screwdriver or suitable
pliers to carefully remove the spring
clip (3) from the starter post.
: Remove the rope rotor (4) together
with the washer (5) and pawl (6).
: Use a screwdriver to lever the
starter rope (7) out of the grip (8).
: Remove the remaining rope from
the rotor and starter grip.
Replacing the Starter Rope
and Rewind Spring
1
1
1
441BA029 KN
2
441BA030 KN
3
4
5
6
7
8
9

Stihl BT 360 Specifications

General

Engine Type	2-stroke
Drill Speed	200 rpm
Sound Power Level	107 dB(A)
Displacement	60.3 cc
Power Output	3.9 kW
