N Check the grease level regularly –
about every 25 hours of operation.
N Unscrew the filler plug (1). If no
grease can be seen on the inside of
the filler plug, screw the tube (2) of
STIHL gear lubricant (special
accessory) into the filler hole.
N Squeeze up to 5 g grease into the
gearbox.
NOTICE
Do not completely fill the gearbox with
grease.
N Remove the tube of grease (2).
N Refit the filler plug (1) and tighten it
down firmly.
N Check the film of grease regularly –
about every 25 hours of operation.
N Loosen the screw (1) on the
powerhead.
N Pull out the flexible shaft.
N Pull the shaft (2) out of the
protective tube (3) and note its
installed position.
N Coat the shaft uniformly with STIHL
multipurpose grease (special
accessory). Do not apply too much
grease.
NOTICE
If the drive shaft has turned blue, install
a new one.
N Refit the flexible shaft (2) in the
protective tube (3) – turn it 180°
from the original installed position
and push it home as far as stop.
N Push the flexible shaft fully into the
powerhead sleeve (4) – turn the
shaft back and forth at the same
time.
N Line up the flexible shaft – the word
"Top" must face up.
When correctly installed, the line (5)
(arrow point) must be flush with the edge
of the cover.

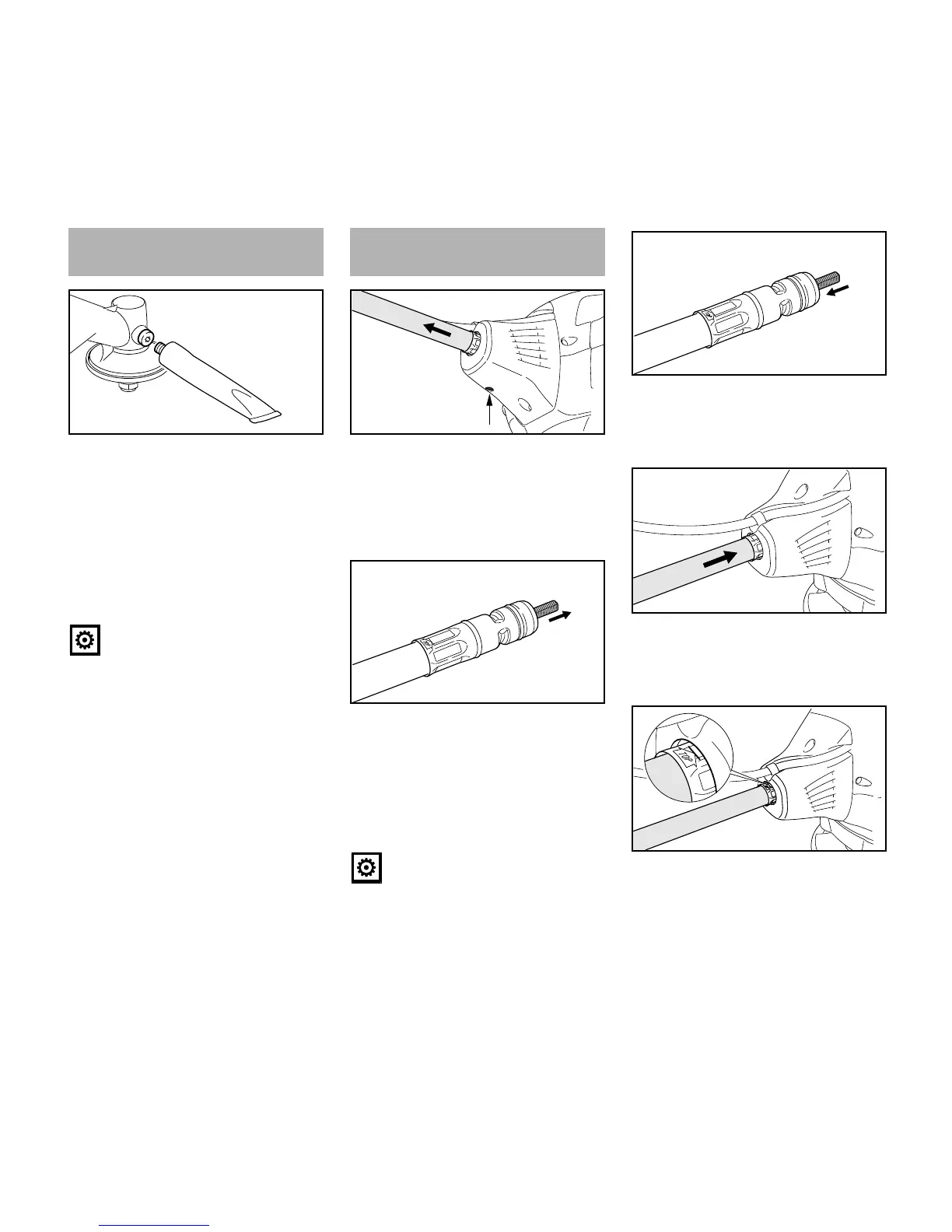

Lubricating the Gearbox
1
233BA010 KN
2
Lubricating the Flexible Shaft
0812BA035 KN
1
2
3
0812BA036 KN
2
3
0812BA037 KN
0812BA038 KN
4
5
0812BA039 KN
