Stihl FS 200 Service Manual

Troubleshooting chart - see
"Standard Repairs, Trouble-
shooting" handbook.

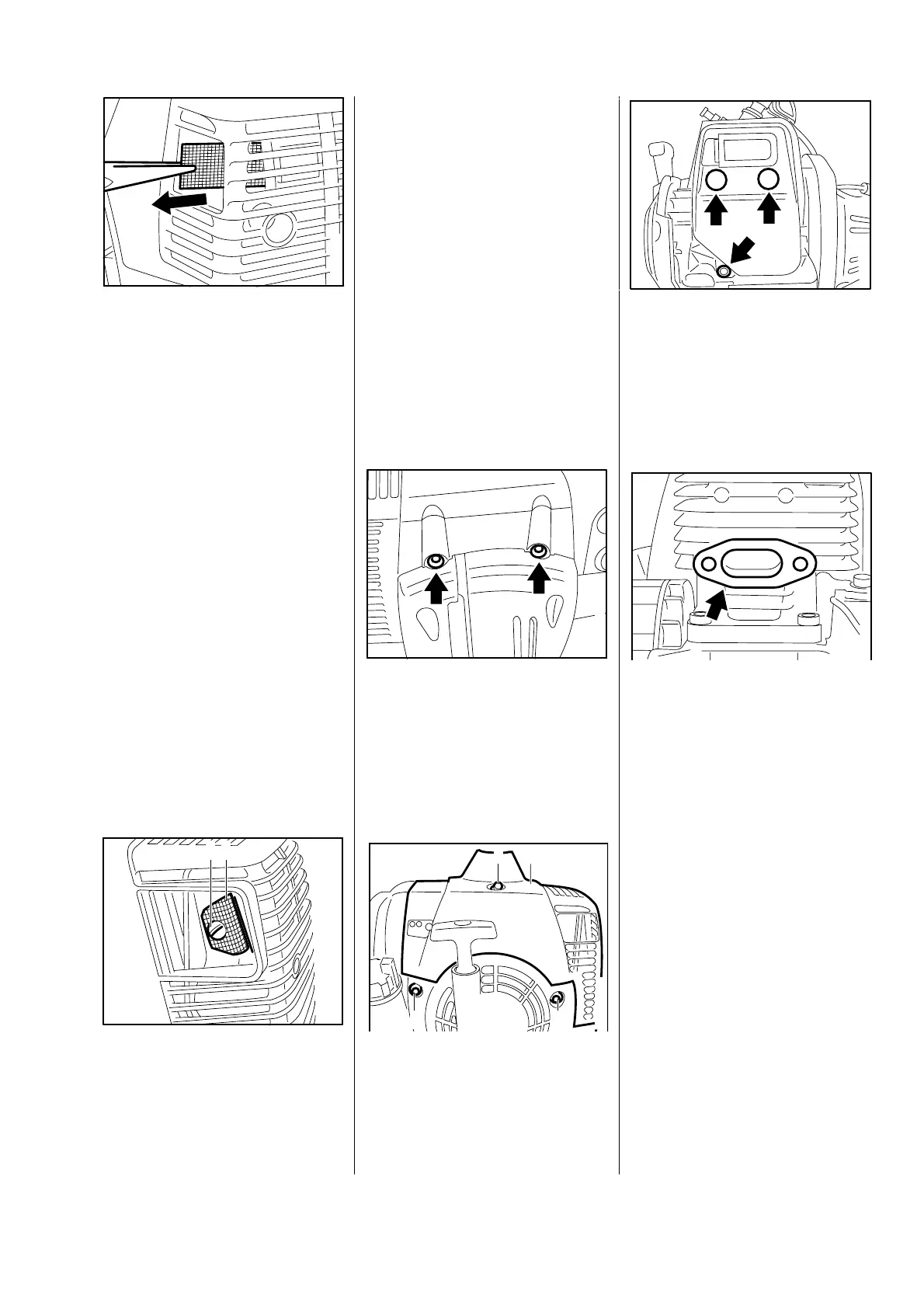

Spark arresting screen
FS 120...350, FR 350
•
Pull spark arresting screen out of
the muffler.

Clean or replace spark arresting
screen if necessary.
FS 400/450, FR 450
•
Take out the screw (1).
•
Pull spark arresting screen (2)
out of the muffler.

Clean or replace spark arresting
screen if necessary.

Tighten down screw to 2.5 Nm
(1.8 lbf.ft).
Muffler
FS 400/450, FR 450

Remove air filter cover - see 8.1.
All models
•
Remove screws from clutch
housing.
•
Take out screws (1).
•
Press down the decompression
valve (2).
•
Remove the shroud (3).
•
Take out the screws.

Lift away the muffler.
•
Remove the gasket.
Reassemble in the reverse
sequence.

Use a new gasket.

Tighten down screws to 8.5 Nm
(6.3 lbf.ft).
250RA006
VA
250RA011
VA
250RA009
VA
250RA012
VA
250RA007
1 2
VA
1
250RA010
1
32
VA
4. ENGINE
4.1 Exhaust Muffler/Spark Arresting Screen
)6)5 

Stihl FS 200 Specifications

General

Engine Type	2-stroke
Shaft Type	Straight
Vibration Level	4.5 m/s²
Engine Power	0.8 kW
Displacement (cm³)	40.2 cm³
