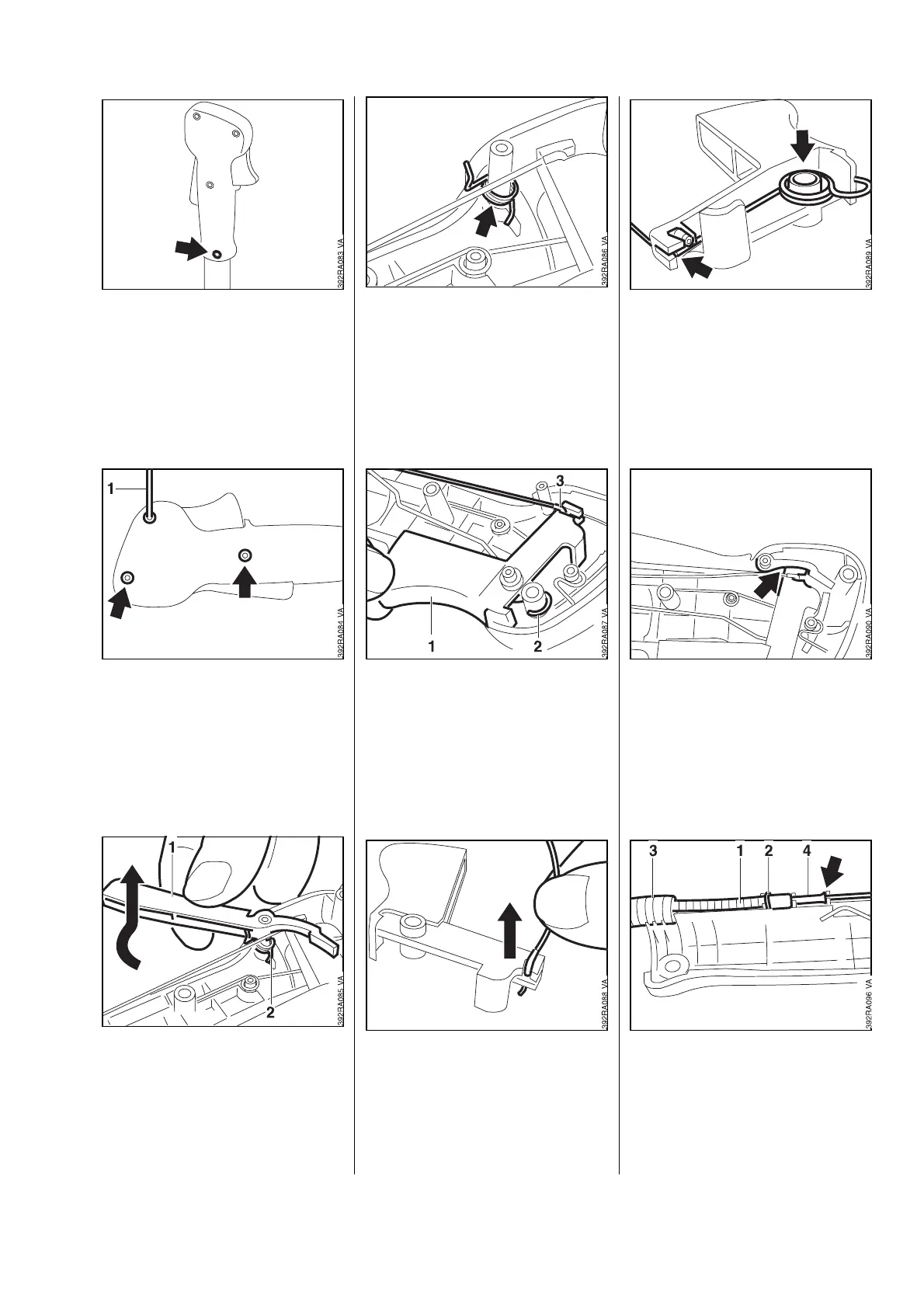

Take out screw and washer.
Pull off the control handle.
Warning: To avoid risk of electric
shock, do not start the unit while
the control handle is open.
•
Use screwdriver (1) 5910 890
2301 to take out the screws.
Separate the two halves of the
handle.
•
Lift the interlock lever (1) slightly
and turn it to one side until the
torsion spring (2) is relaxed.
•
Pull the interlock lever off the
peg.
•
Remove the torsion spring.
•
Take the throttle trigger (1) with
torsion spring (2) and throttle
cable (3) off the peg.
•
Disconnect throttle cable from
trigger.
Assemble in the reverse
sequence.
•
Attach the throttle cable, then
position torsion spring as shown
and push its long arm into the
slot.
•
The interlock lever must be
behind the throttle trigger.
•
Check correct positions of
throttle cable (1), contact spring
(2), protective tube (3) and
insulator (4).
7. THROTTLE CONTROL
7.1 Throttle Trigger/Interlock Lever (Bike Handle)
