Stihl FS 200 Service Manual

•

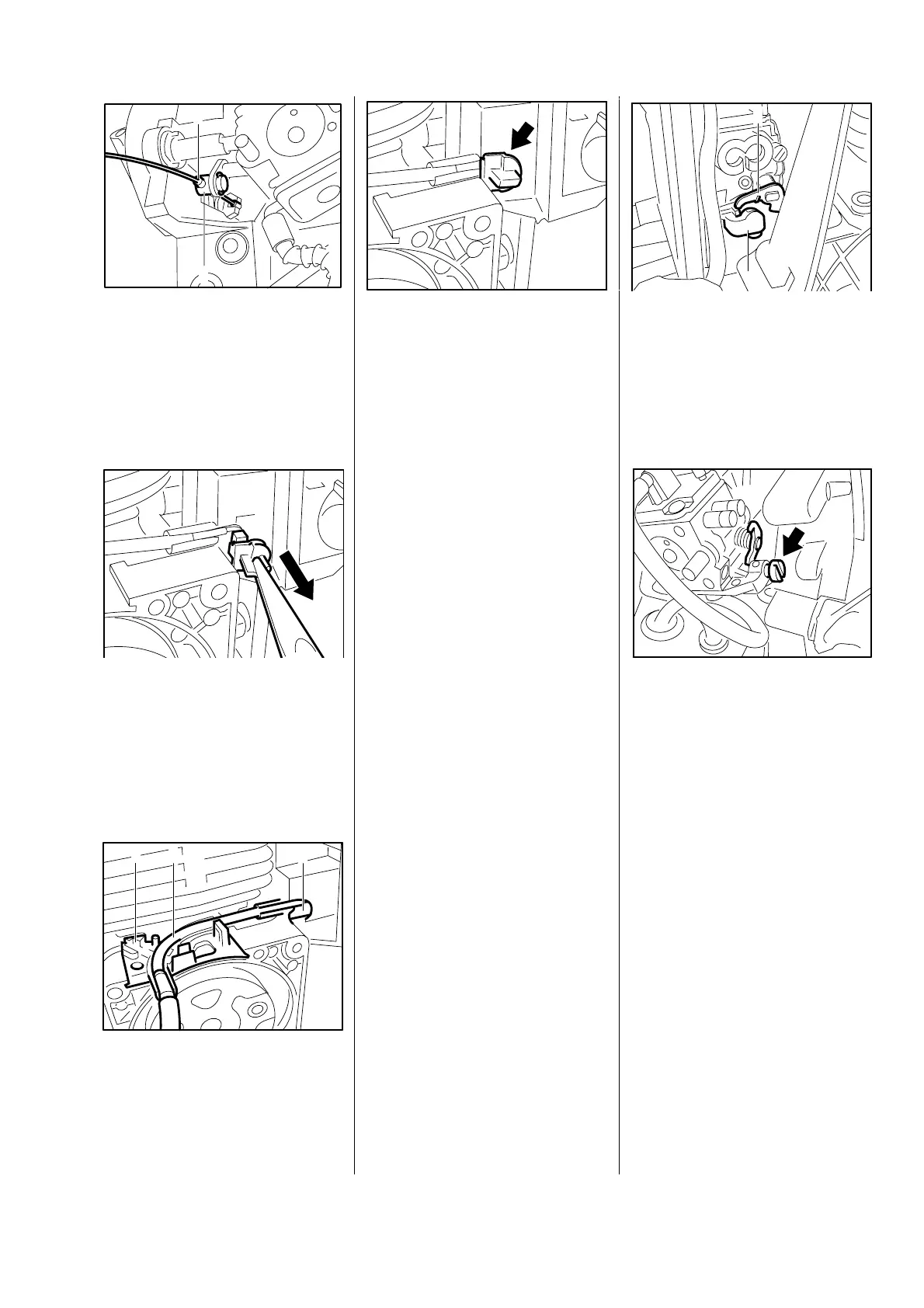

Disconnect throttle cable nipple
(1) from slotted pin (2) on throttle
lever.
•
Pull grommet out of carburetor
housing.
•
Take throttle cable (1) out of
base of cable guide (2) and pull it
out of opening (3) in carburetor
housing.
Reassemble in the reverse
sequence.
FS 400/450, FR 450
•
Make sure grommet is properly
located in the carburetor housing.

Secure lug between the raised
marks.
FS 120...350, FR 350

Place lug and extended throttle
cable in the corner of the filter
housing.

Tighten screw of extended
throttle cable to 6.0 Nm
(4.4 lbf.ft).

Adjust throttle cable - see 7.5.2.
•
Throttle lever (1) must butt
against the stop on the carbure-
tor cover (2) when throttle trigger
is squeezed (full throttle).
•
On carburetors with an idle
speed screw: Throttle lever must
butt against the idle speed screw
when the trigger is in the idle
position.
Note: The filter housing is not
shown in the illustration.
Adjustment is effected by moving
the throttle cable in the holder.

Remove the shroud - see 4.1.

On FS 300...450, remove cover
from AV housing - see 9.2.
 Check correct setting of idle
speed screw (if fitted).
Important: Note adjustment range
of idle speed screw.
7.5.2 Adjusting
250RA149
VA
250RA146
1
2
VA
250RA147
2
1
VA
3
250RA148
2
1
VA
250RA239
VA
250RA238
VA
)6)5 

Stihl FS 200 Specifications

General

Engine Type	2-stroke
Shaft Type	Straight
Vibration Level	4.5 m/s²
Engine Power	0.8 kW
Displacement (cm³)	40.2 cm³
