FS 400/450, FR 450
•
Fit throttle cable (1) and grom-
met (2) in opening in carburetor
housing.
•
Insert stub (3) in the sealing
ring (4).
Secure lug of extended throttle
cable between the raised marks
and tighten down the screws
to 6 Nm (4.4 lbf.ft).
Preparations - see 4.4.
Remove clutch housing -
see 9.1 and 11.2.
Pull off the spark plug boot.
On FS 120...350, FR 350: Take
ignition lead out of the retainers
on the throttle cable holder.
Unscrew the spark plug.
Unscrew the decompression
valve, if fitted.
FS 400/450, FR 450
•
Take cable retainer out of
cylinder.
All models:

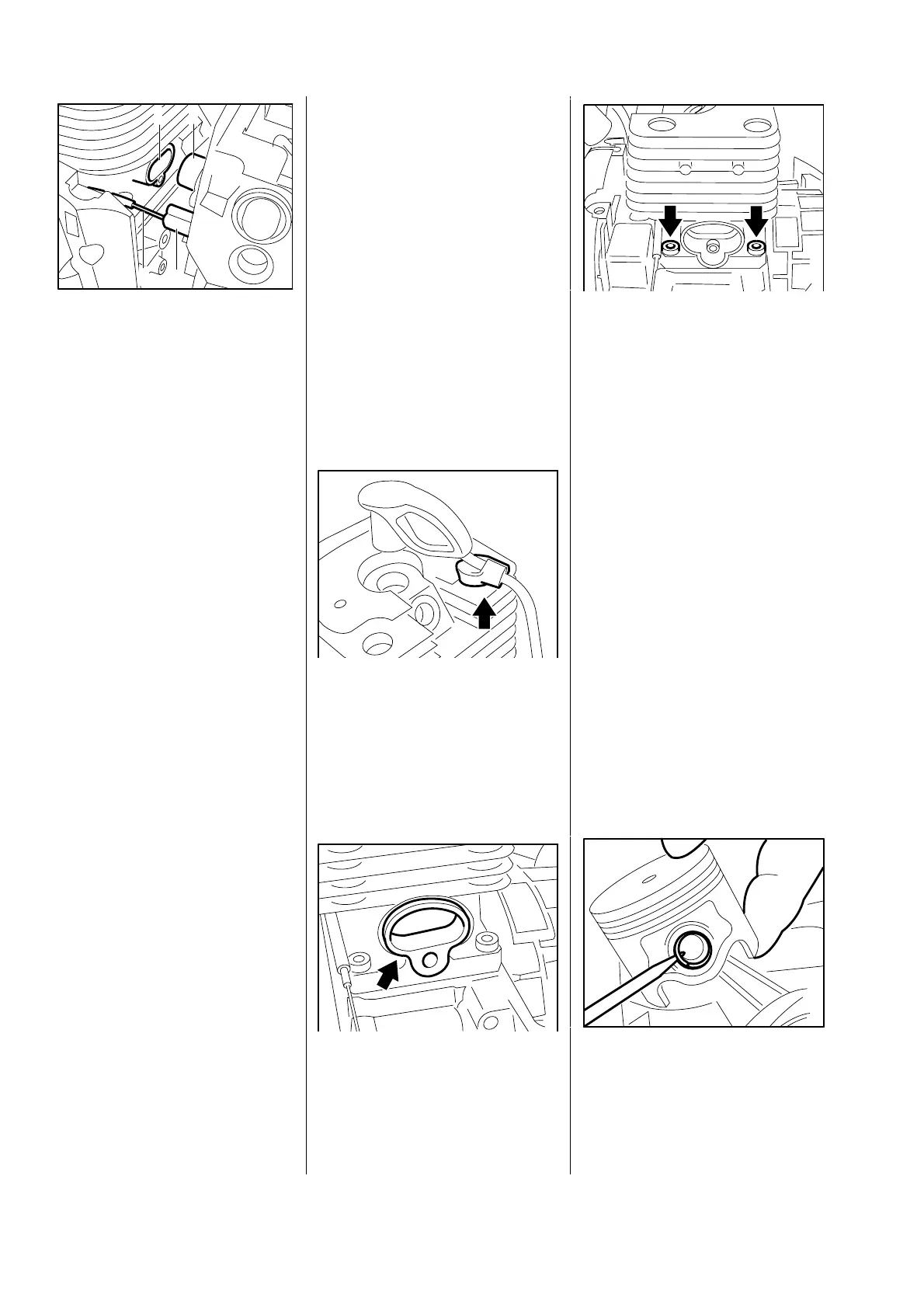

Illustrations show the
FS 200 engine.
•
Pull out the sealing ring.
•
Release and unscrew the
four cylinder base screws.
Pull the cylinder off the piston.
Inspect the cylinder and replace
it if necessary.
If a new cylinder has to be
installed, always fit the matching
piston. New cylinders are only
available with piston.
Before removing the piston,
decide whether or not the crank-
shaft has to be removed as well.
To remove the clutch and carrier,
block the crankshaft by sliding
the wooden assembly block
between the piston and crank-
case.
Remove the cylinder gasket.
•
Ease the hookless snap rings
out of the grooves in the piston
bosses.
250RA030
VA
250RA028
4
3
1 2
VA
250RA029
VA
250RA031
VA
250RA032
VA
4.5 Cylinder and Piston
4.5.1 Removal
