Stihl FS 200 Service Manual

Installation
•

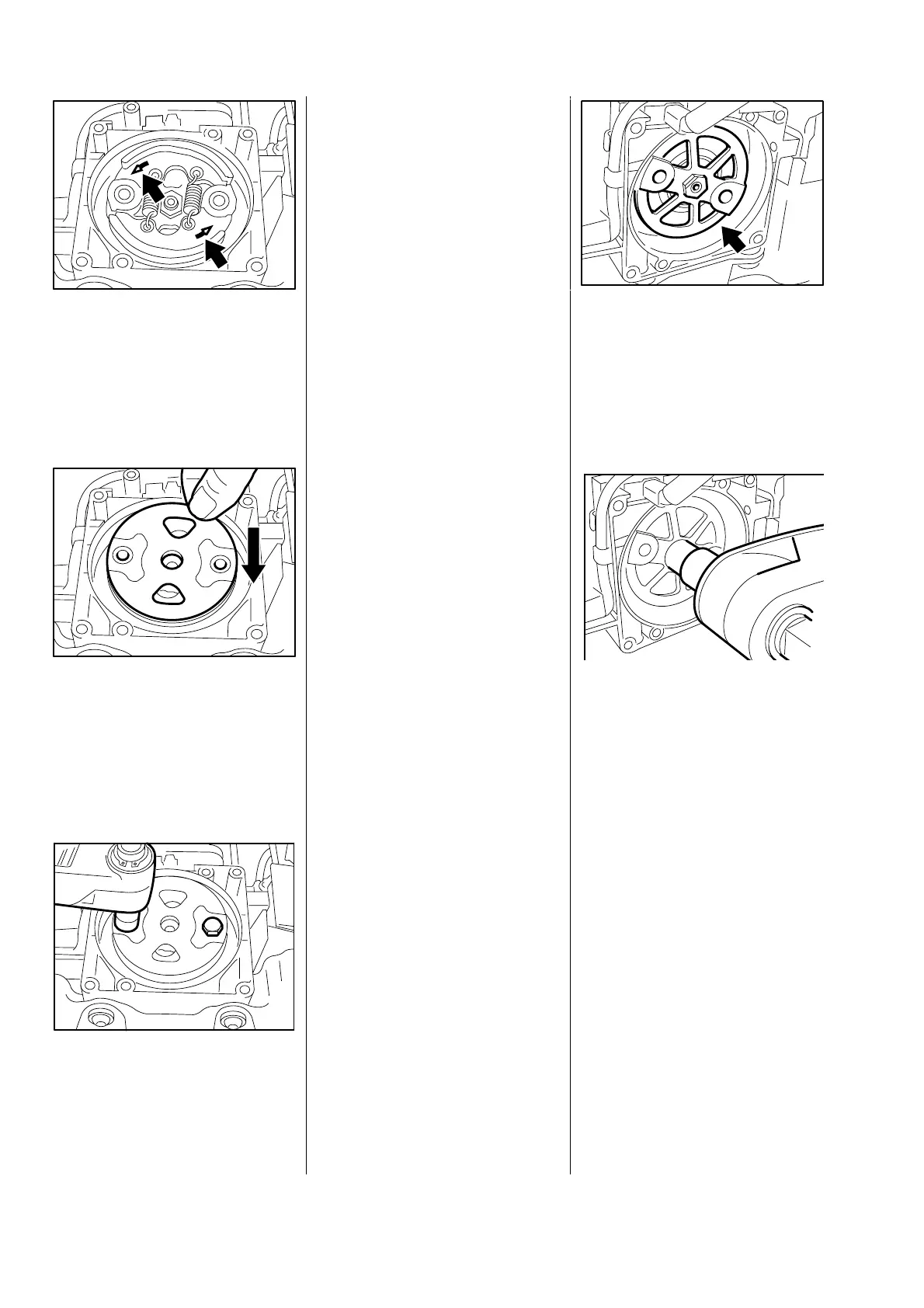

Fit clutch shoes with springs and
bushings so that the arrows point
counterclockwise.
•
Fit cover in position.
•
Insert screws and tighten down
to 12 Nm (8.8 lbf.ft).

Pull locking strip out of cylinder.

Fit spark plug and tighten down
to 20 Nm (15 lbf.ft).
Important: If the spark plug
comes with a separate terminal
nut, always fit the nut on the
thread and tighten it down
securely.

Fit the boot on the spark plug.

Fit the shroud - see 4.1.

Fit clutch housing -
see 9.1 or 11.2.

Remove clutch - see 3.1.
•
Unscrew carrier from end of
crankshaft.
•
Fit the carrier and tighten it
down to 24 Nm (17.7 lbf.ft).

Install the clutch - see 3.1.
3.2 Clutch Carrier
250RA232
VA
250RA231
VA
250RA234
VA
250RA235
VA
250RA233
VA
 )6)5
