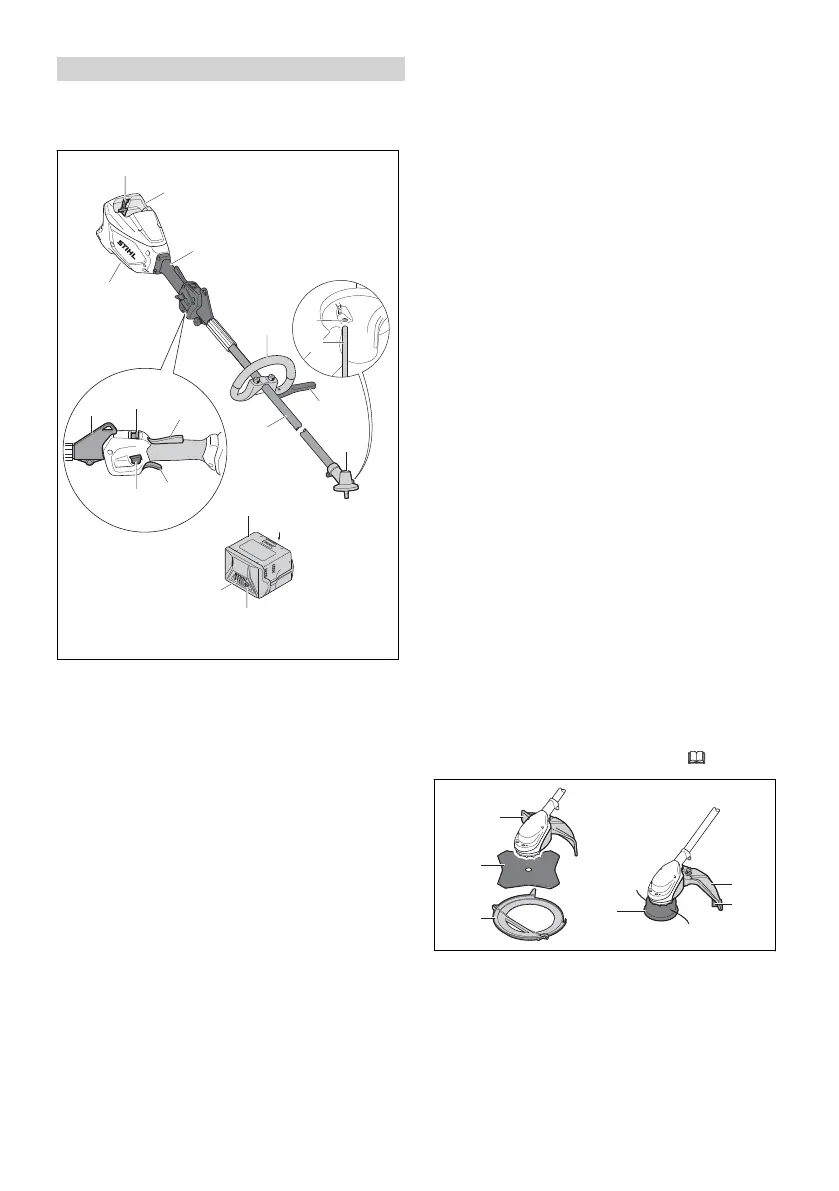

3 Overview
3.1 Brushcutter, battery and
charger
#
7
8
6
4
5
9
1
#
3
2
12
14
11
10
13
16
17
15
0000100839_001
1 Battery compartment
The battery compartment holds the battery.
2 Locking lever
The locking lever holds the battery in the bat‐
tery compartment.
3 Control handle
The control handle is used for operating,
holding and guiding the brushcutter.
4 Carrying ring
The carrying ring is used for attaching the
carrying system.
5 Power setting switch
The power setting switch is used to select the
power level.
6 Ergo lever
The ergo lever holds the release slide in posi‐
tion when the trigger is released.
7 Trigger
The trigger switches the brushcutter on and
off.
8 Release slide
The release slide releases the trigger.
9 Loop handle
The loop handle is used for holding and guid‐
ing the brushcutter.
10 Bump guard
The bump guard protects objects against con‐
tact with the cutting tool.
11 Shaft
The shaft connects all components.
12 Opening for the stop pin
The opening for the stop pin accommodates
the stop pin.
13 Stop pin
The stop pin blocks the shaft when a cutting
attachment is being attached.
14 Gear housing
The gear housing encloses the gearbox.
15 Battery
The battery supplies power to the brushcutter.
16 LEDs
The LEDs indicate the state of charge of the
battery and any malfunctions.
17 Pushbutton
The pushbutton activates the LEDs on the
battery.
# Rating plate with the machine number
3.2 Deflectors and Cutting Attach‐
ments
The illustrations show examples of deflectors
and cutting attachments. Approved combinations
are listed in this instruction manual, 21.
1 Deflector for metal cutting attachments
The metal cutting tool guard protects the user
from thrown objects and contact with the
grass cutting blade or brush knife.
2 Grass Cutting Blade
Cuts grass and weeds.
3 Overview English
0458-027-0101-A 3
