Stihl MS 261 C User Manual

85MS 261, MS 261 C

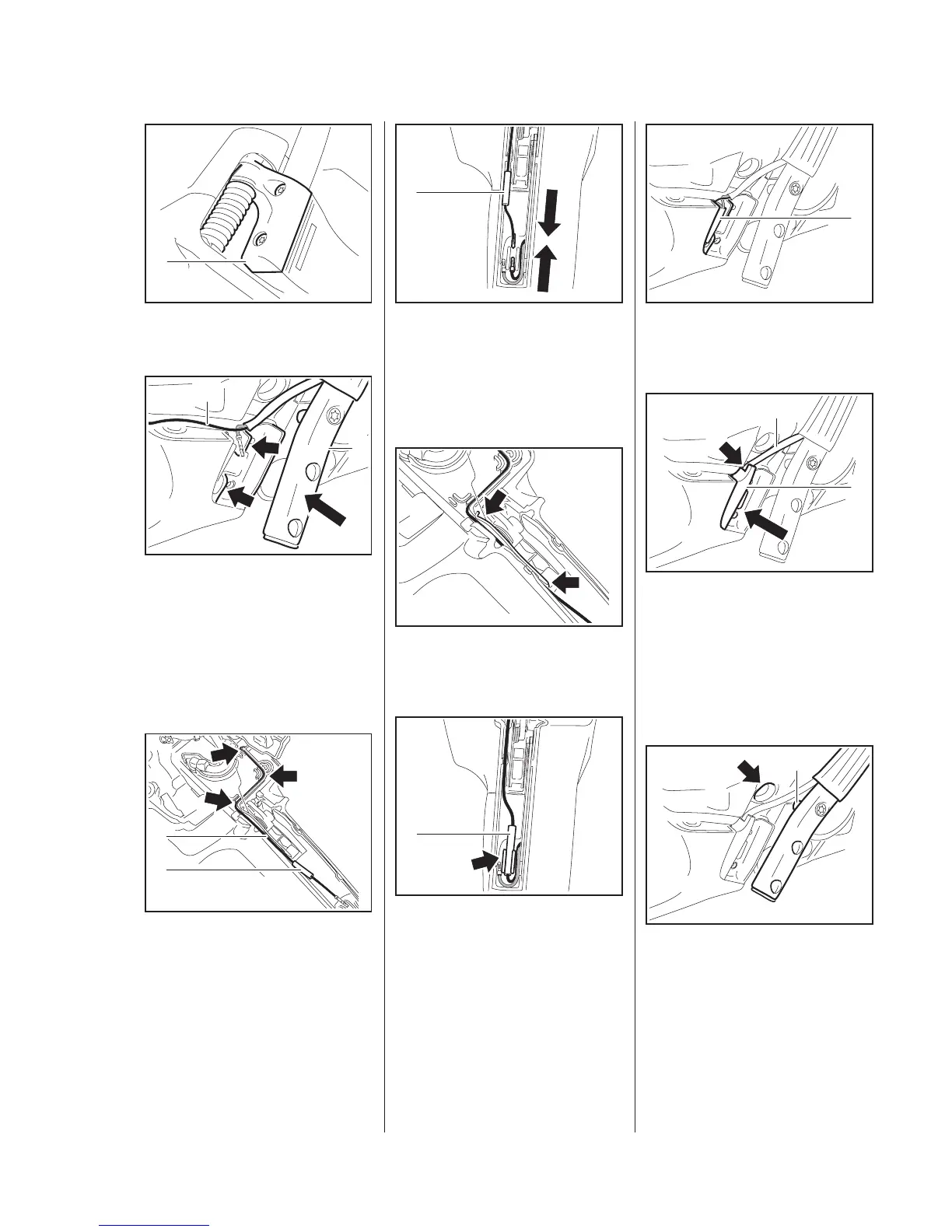

– Install the retainer (1),
b
9.2.1
: Straighten the wire (2) and fit it
between the crankcase and tank
housing.
: Push the handlebar (1) into its
seat (arrows)
– do not pinch the wires.
: Position the wire (1) in the upper
guide (arrows).
Lay the wires without loops and
snugly against the housing.
: Fit the insulating hose (2).
5902RA274 TG
1
5902RA291 TG
1
2
5902RA292 TG
1
2
: Push the pin and socket
connector together.
: Push the insulating tube (1) over
the connector.
: Push the wire fully into the
guide (arrows).
: Push the pin and socket
connector with insulating tube (1)
into the guide (arrows).
5902RA293 TG
1
5902RA294 TG5902RA295 TG
1
: Install the wiring harness (1),
b
b
13.8
: Push the retainer (1) into the seat
so that the wires with insulating
tube (2) locate in the
guide (arrow).
Make sure that the wires are not
pinched.
The peg (1) must engage the seat
(arrow).
5902RA350 TG
1
5902RA296 TG
1
2
5902RA297 TG
1

Stihl MS 261 C Specifications

General

Displacement	50.2 cm³
Powerhead Weight	4.9 kg
Sound pressure level	103 dB(A)
Sound power level	116 dB(A)
Vibration level (left/right)	3.5/3.5 m/s²
Bar Length	40 cm (16 in.)
Fuel Capacity	500 cc
Oil Capacity	270 ml (9.1 oz.)
Chain pitch	3/8"
Engine Power	3.0 kW
